8 Parameter Measurement Information

8.1 Test Circuits

SN65LVCP114 vo_test_cir_llsea8.gif Figure 9. Common-Mode Output-Voltage Test Circuit
SN65LVCP114 Rx_tst_cir_llsea8.gif Figure 10. Receive-Side Performance Test Circuit
SN65LVCP114 Tx_tst_cir_llsea8.gif Figure 11. Transmit-Side Performance Test Circuit

8.2 Equivalent Input and Output Schematic Diagrams

SN65LVCP114 equi_ip_cir_llsea8.gif Figure 12. Equivalent Input Circuit Design

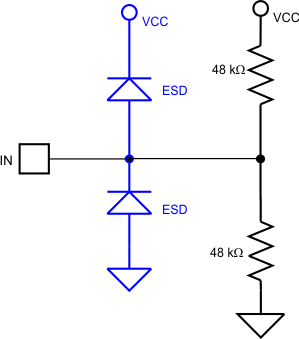

SN65LVCP114 ip_biasing_llsea8.gif Figure 13. 3-Level Input Biasing Network

8.3 Functional Definitions

Table 2. Loopback, Diag, and Sel Controls

LOOP_A LOOP_B LOOP_C DIAG SEL[3:0] OUTPUT PORT A OUTPUT PORT B OUTPUT PORT C
0 0 0 0 0 In_Port_C[3:0] idle In_Port_A[3:0]
0 0 0 0 1 idle In_Port_C[3:0] In_Port_B[3:0]
0 0 0 1 0 In_Port_C[3:0] In_Port_C[3:0] In_Port_A[3:0]
0 0 0 1 1 In_Port_C[3:0] In_Port_C[3:0] In_Port_B[3:0]
0 0 1 0 0 In_Port_C[3:0] Idle In_Port_C[3:0]
0 0 1 0 1 Idle In_Port_C[3:0] In_Port_C[3:0]
0 0 1 1 0 In_Port_C[3:0] In_Port_C[3:0] In_Port_C[3:0]
0 0 1 1 1 In_Port_C[3:0] In_Port_C[3:0] In_Port_C[3:0]
0 1 0 0 0 In_Port_C[3:0] In_Port_B[3:0] In_Port_A[3:0]
0 1 0 0 1 Idle In_Port_B[3:0] In_Port_B[3:0]
0 1 0 1 0 In_Port_C[3:0] In_Port_B[3:0] In_Port_A[3:0]
0 1 0 1 1 In_Port_C[3:0] In_Port_B[3:0] In_Port_B[3:0]
0 1 1 0 0 In_Port_C[3:0] In_Port_B[3:0] In_Port_C[3:0]
0 1 1 0 1 Idle In_Port_B[3:0] In_Port_C[3:0]
0 1 1 1 0 In_Port_C[3:0] In_Port_B[3:0] In_Port_C[3:0]
0 1 1 1 1 In_Port_C[3:0] In_Port_B[3:0] In_Port_C[3:0]
1 0 0 0 0 In_Port_A[3:0] Idle In_Port_A[3:0]
1 0 0 0 1 In_Port_A[3:0] In_Port_C[3:0] In_Port_B[3:0]
1 0 0 1 0 In_Port_A[3:0] In_Port_C[3:0] In_Port_A[3:0]
1 0 0 1 1 In_Port_A[3:0] In_Port_C[3:0] In_Port_B[3:0]
1 0 1 0 0 In_Port_A[3:0] Idle In_Port_C[3:0]
1 0 1 0 1 In_Port_A[3:0] In_Port_C[3:0] In_Port_C[3:0]
1 0 1 1 0 In_Port_A[3:0] In_Port_C[3:0] In_Port_C[3:0]
1 0 1 1 1 In_Port_A[3:0] In_Port_C[3:0] In_Port_C[3:0]
1 1 0 0 0 In_Port_A[3:0] In_Port_B[3:0] In_Port_A[3:0]
1 1 0 0 1 In_Port_A[3:0] In_Port_B[3:0] In_Port_B[3:0]
1 1 0 1 0 In_Port_A[3:0] In_Port_B[3:0] In_Port_A[3:0]
1 1 0 1 1 In_Port_A[3:0] In_Port_B[3:0] In_Port_B[3:0]
1 1 1 0 0 In_Port_A[3:0] In_Port_B[3:0] In_Port_C[3:0]
SN65LVCP114 loopback_mode_llsea8.gif Figure 14. Loopback Mode
SN65LVCP114 diagnostic_mode_llsea8.gif Figure 15. Diagnostic Mode

Table 3. Overall Gain Settings

GAIN_x INPUT GAIN
[dB]		 VOD_x VOD GAIN
[dB]		 EQ[x]0 EQ[x]1 TOTAL DC GAIN
[dB]		 TOTAL EQ GAIN
(7 GHz) [dB]
LOW –6 LOW 1 LOW LOW –5 1.3
LOW –6 LOW 1 LOW HiZ –5 2
LOW –6 LOW 1 LOW HIGH –5 3.6
LOW –6 LOW 1 HiZ LOW –8 5
LOW –6 LOW 1 HiZ HiZ –8 6.5
LOW –6 LOW 1 HiZ HIGH –8 8.3
LOW –6 LOW 1 HIGH LOW –11 10
LOW –6 LOW 1 HIGH HiZ –11 11.9
LOW –6 LOW 1 HIGH HIGH –11 13.9
LOW –6 HIGH 6.8 LOW LOW 0.8 1.3
LOW –6 HIGH 6.8 LOW HiZ 0.8 2
LOW –6 HIGH 6.8 LOW HIGH 0.8 3.6
LOW –6 HIGH 6.8 HiZ LOW –2.2 5
LOW –6 HIGH 6.8 HiZ HiZ –2.2 6.5
LOW –6 HIGH 6.8 HiZ HIGH –2.2 8.3
LOW –6 HIGH 6.8 HIGH LOW –5.2 10
LOW –6 HIGH 6.8 HIGH HiZ –5.2 11.9
LOW –6 HIGH 6.8 HIGH HIGH –5.2 13.9
HIGH 0 LOW 1 LOW LOW 1 1.3
HIGH 0 LOW 1 LOW HiZ 1 2
HIGH 0 LOW 1 LOW HIGH 1 3.6
HIGH 0 LOW 1 HiZ LOW –2 5
HIGH 0 LOW 1 HiZ HiZ –2 6.5
HIGH 0 LOW 1 HiZ HIGH –2 8.3
HIGH 0 LOW 1 HIGH LOW –5 10
HIGH 0 LOW 1 HIGH HiZ –5 11.9
HIGH 0 LOW 1 HIGH HIGH –5 13.9
HIGH 0 HIGH 6.8 LOW LOW 6.8 1.3
HIGH 0 HIGH 6.8 LOW HiZ 6.8 2
HIGH 0 HIGH 6.8 LOW HIGH 6.8 3.6
HIGH 0 HIGH 6.8 HiZ LOW 3.8 5
HIGH 0 HIGH 6.8 HiZ HiZ 3.8 6.5
HIGH 0 HIGH 6.8 HiZ HIGH 3.8 8.3
HIGH 0 HIGH 6.8 HIGH LOW 0.8 10
HIGH 0 HIGH 6.8 HIGH HiZ 0.8 11.9
HIGH 0 HIGH 6.8 HIGH HIGH 0.8 13.9
