5.9 Typical Characteristics
Figure 5-1 Drivers High-Level Output Voltage vs High-Level Output Voltage
Figure 5-3 Drivers Differential Output Voltage vs Output Current

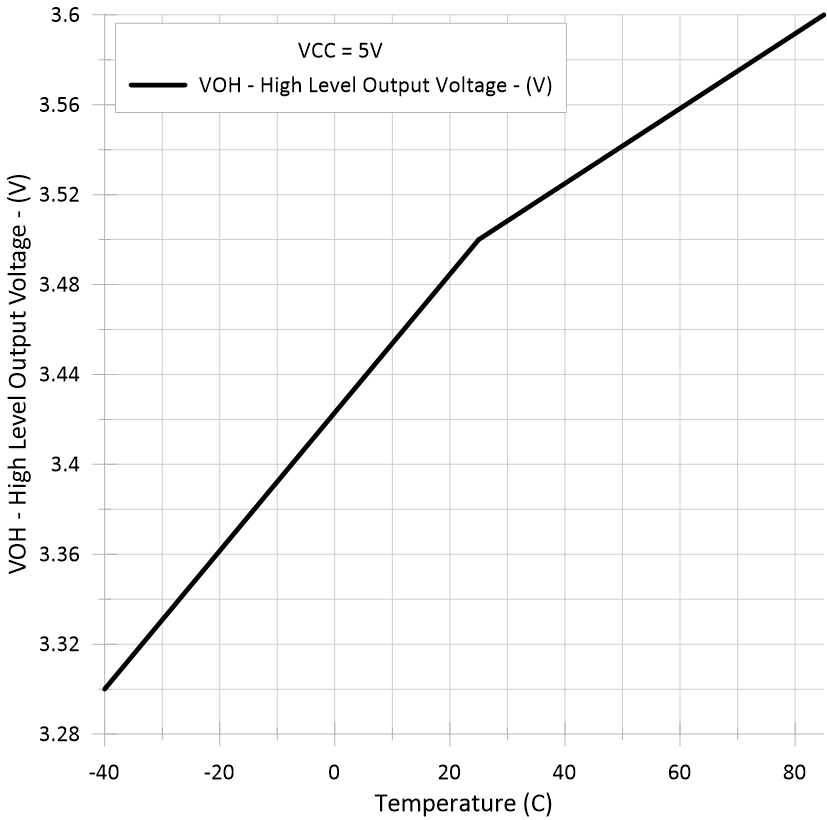

Figure 5-5 Receivers High-Level Output Voltage vs Free-Air Temperature
Figure 5-7 Receivers Low-Level Output
Voltage vs Free-Air Temperature
Figure 5-9 Receivers Output Voltage
vs Enable Voltage
Figure 5-2 Drivers Low-Level Output Voltage vs Low-Level Output Current
Figure 5-4 Receivers High-Level Output Voltage vs High-Level Output Current
Figure 5-6 Receivers Low-Level Output Voltage vs Low-Level Output Current
Figure 5-8 Receivers Output Voltage
vs Enable Voltage
