Typical Characteristics

at TA = 25°C, VIN = VEN = 12 V, IL = 0 mA, CL = 10 µF, CIN = 0.1 µF (unless otherwise noted)

GUID-1CD69C0E-D3A9-4303-B1C8-FDF2DF9A7138-low.gifFigure 7-1 Temperature Drift
GUID-327B3618-B82B-4324-9911-F3961CB60002-low.gifFigure 7-3 Output Voltage Accuracy vs Temperature
GUID-EA2903BE-4142-436A-8BA7-71052E87405C-low.gifFigure 7-5 Power-Supply Rejection Ratio vs Frequency
GUID-7A1ADF6F-4CA7-48E5-99A8-CDBA1A8678F2-low.gifFigure 7-7 Load Regulation Sourcing

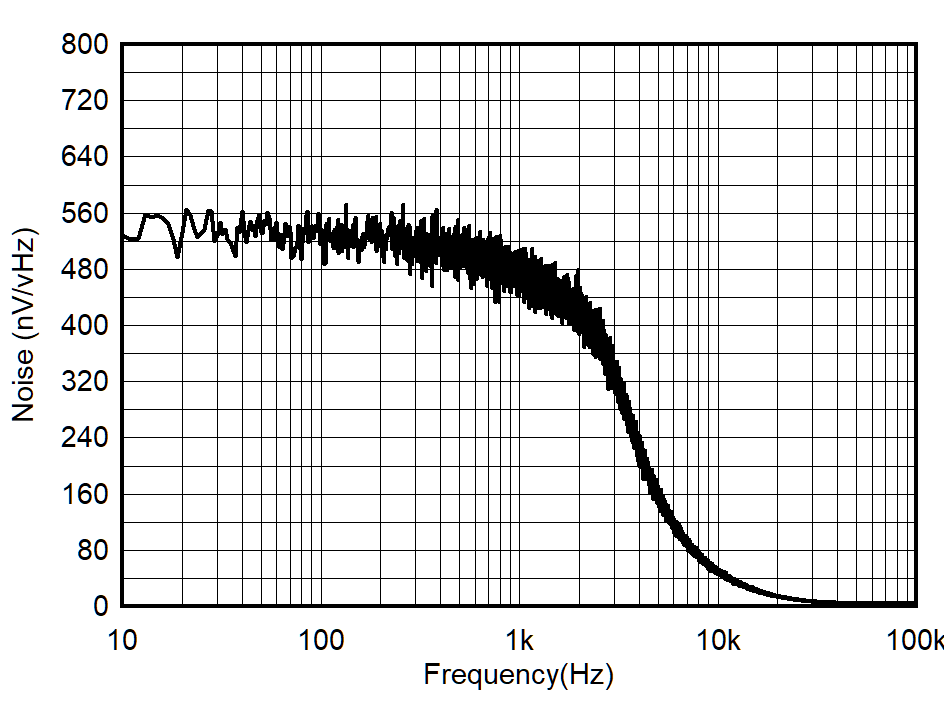

GUID-F7484669-5737-4712-851E-C64015357363-low.pngFigure 7-9 Noise Performance 10 Hz to 10 kHz
GUID-4D2FDB08-6117-4F2D-8757-9DA70D84159B-low.gifFigure 7-11 Load Transient

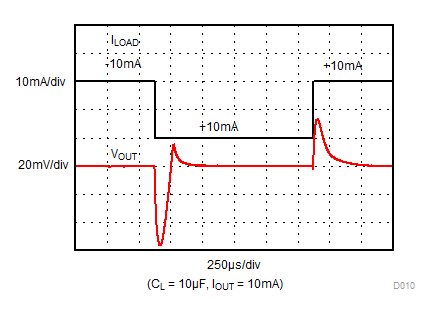

GUID-2A8E2047-3F12-41F4-A841-D7C4FDA921A6-low.gifFigure 7-13 Load Transient
GUID-5F82D5DD-63F1-4BA4-B682-B2960C3707EB-low.gifFigure 7-15 Line Transient
GUID-98196DCE-CE9C-4726-9CE9-CB4F47A0E85C-low.gifFigure 7-17 Thermal Hysteresis Distribution (Cycle 1)
Refer to Section 8.1 for more information
Figure 7-19 Solder Heat Shift Distribution
GUID-FBF72FD4-8F91-42DB-8C3F-5937D5C29675-low.gifFigure 7-21 0.1-Hz to 10-Hz Noise (VOUT)

Figure 7-2 VIN vs IQ over Temperature
GUID-DCDF45AF-AA3A-4D1C-A477-CF7A887489E2-low.gifFigure 7-4 Quiescent Current vs Temperature

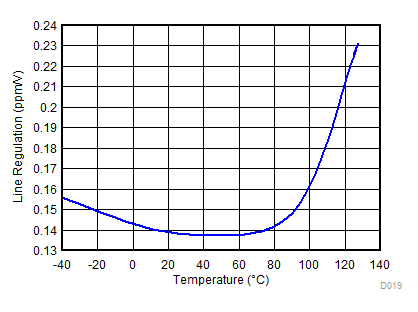

GUID-3962F902-29E8-4AEF-B318-54AFA851DC8A-low.gifFigure 7-6 Line Regulation

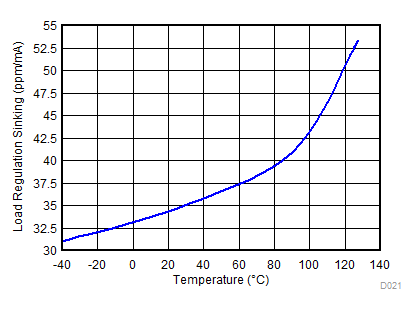

GUID-588E585C-7591-4668-A4CB-F27FAC888442-low.gifFigure 7-8 Load Regulation Sinking

Figure 7-10 Load Transient
GUID-B7AD0287-C8FC-4372-BB5D-90EB438DED65-low.gifFigure 7-12 Load Transient

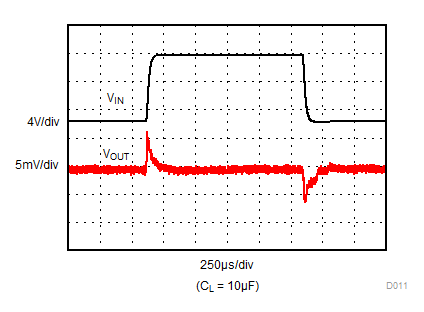

GUID-CB251955-EE2E-4713-8E43-776E22E47005-low.gifFigure 7-14 Line Transient
GUID-876C39EF-8392-4EBF-B41F-B36AD55D334F-low.gifFigure 7-16 Quiescent Current Shutdown Mode
GUID-D8635073-378E-4EBC-B691-D72930666755-low.gifFigure 7-18 Thermal Hysteresis Distribution (Cycle 2)

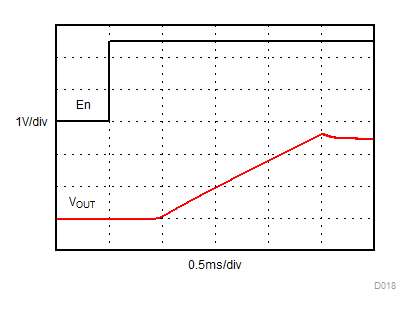

Figure 7-20 Turnon Time (Enable)
GUID-E0EBA014-3DD8-490E-972A-F2C312338495-low.gifFigure 7-22 Long Term Stability - 1000 hours (VOUT)
