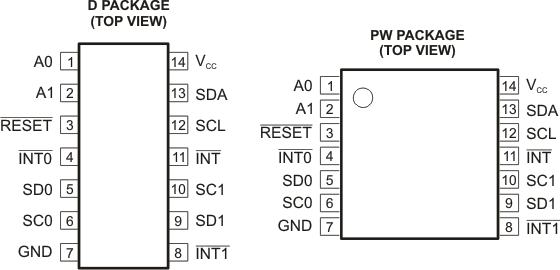

5 Pin Configuration and Functions

Table 5-1 Pin Functions
PIN DESCRIPTION
NAME D, PW
A0 1 Address input 0. Connect directly to VCC or ground.
A1 2 Address input 1. Connect directly to VCC or ground.
RESET 3 Active-low reset input. Connect to VCC or VDPUM(1) through a pull-up resistor, if not used.
INT0 4 Active-low interrupt input 0. Connect to VDPU0(1) through a pull-up resistor.
SD0 5 Serial data 0. Connect to VDPU0(1) through a pull-up resistor.
SC0 6 Serial clock 0. Connect to aVDPU0(1) through a pull-up resistor.
GND 7 Ground
INT1 8 Active-low interrupt input 1. Connect to VDPU1(1) through a pull-up resistor.
SD1 9 Serial data 1. Connect to VDPU1(1) through a pull-up resistor.
SC1 10 Serial clock 1. Connect to VDPU1(1) through a pull-up resistor.
INT 11 Active-low interrupt output. Connect to VDPUM(1) through a pull-up resistor.
SCL 12 Serial clock line. Connect to VDPUM(1) through a pull-up resistor.
SDA 13 Serial data line. Connect to VDPUM(1) through a pull-up resistor.
VCC 14 Supply power
(1) VDPUX is the pull-up reference voltage for the associated data line. VDPUM is the master I2C reference voltage while VDPU0 and VDPU1 are the slave channel reference voltages.
