Typical Application

A typical application of the PCA9543A will contain anywhere from 1 to 3 separate data pull-up voltages, VDPUX , one for the master device (VDPUM) and one for each of the selectable slave channels (VDPU0 and VDPU1). In the event where the master device and both slave devices operate at the same voltage, then the pass voltage, Vpass = VDPUX. Once the maximum Vpass is known, Vcc can be selected using Figure 9-2. In an application where voltage translation is necessary, additional design requirements must be considered (See Design Requirements).

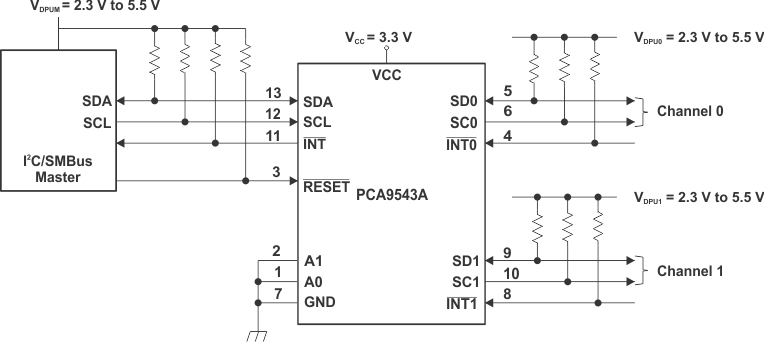

Figure 9-1 shows an application in which the PCA9543A can be used.

GUID-74CFAB22-A43E-42AD-B021-5CAE57DD7B68-low.gifFigure 9-1 Typical Application
