8.5.1 I2C Interface

The I2C bus is for two-way, two-line communication between different ICs or modules. The two lines are a serial data line (SDA) and a serial clock line (SCL). Both lines must be connected to a positive supply via a pull-up resistor when connected to the output stages of a device. Data transfer may be initiated only when the bus is not busy.

One data bit is transferred during each clock pulse. The data on the SDA line must remain stable during the high period of the clock pulse as changes in the data line at this time is interpreted as control signals (see Figure 8-1).

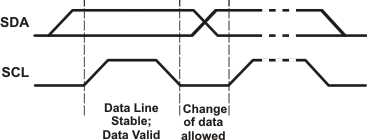

GUID-6B59CB1A-9A71-4C5B-866E-F361F0BF96CF-low.gifFigure 8-1 Bit Transfer

Both data and clock lines remain high when the bus is not busy. A high-to-low transition of the data line while the clock is high is defined as the start condition (S). A low-to-high transition of the data line while the clock is high is defined as the stop condition (P) (see Figure 8-2).

GUID-3ABC5BAC-A882-44EC-A64F-DC444F115926-low.gifFigure 8-2 Definition of Start and Stop Conditions

A device generating a message is a transmitter; a device receiving a message is the receiver. The device that controls the message is the master and the devices that are controlled by the master are the slaves (see Figure 8-3).

GUID-373C3035-6360-4164-9EAA-D4E1A0E1F0FB-low.gifFigure 8-3 System Configuration

The number of data bytes transferred between the start and the stop conditions from transmitter to receiver is not limited. Each byte of eight bits is followed by one acknowledge (ACK) bit. The transmitter must release the SDA line before the receiver can send an ACK bit.

When a slave receiver is addressed, it must generate an ACK after the reception of each byte. Also, a master must generate an ACK after the reception of each byte that has been clocked out of the slave transmitter. The device that acknowledges must pull down the SDA line during the ACK clock pulse, so that the SDA line is stable low during the high pulse of the ACK-related clock period (see Figure 8-4). Setup and hold times must be taken into account.

A master receiver must signal an end of data to the transmitter by not generating an acknowledge (NACK) after the last byte has been clocked out of the slave. This is done by the master receiver by holding the SDA line high. In this event, the transmitter must release the data line to enable the master to generate a stop condition.

GUID-4F998CC8-1B19-49EB-9F6F-2E53835E9771-low.gifFigure 8-4 Acknowledgment on I2C Bus

Data is transmitted to the PCA9543A control register using the write mode shown in Figure 8-5.

GUID-4C6324F0-1B2A-4AC5-8FBD-74086CFCE225-low.gifFigure 8-5 Write Control Register

Data is read from the PCA9543A control register using the read mode shown in Figure 8-6.

GUID-5BED82D5-2CE3-46EC-8B75-BB596C496729-low.gifFigure 8-6 Read Control Register
