6.7 Typical Characteristics

at TA = 25°C, VS = ±90 V, and RL = 10 kΩ connected to GND, output enabled (unless otherwise noted)
OPA462 WLABNH_1_OPA462_vos_production_distribution.gif
Figure 1. Offset Voltage Production Distribution at 25°C
OPA462 WLOE3N_1_OPA462_vos_histogram_n40c.gif
Figure 3. Offset Voltage Distribution at –40°C
OPA462 WLGFZS_1_OPA462_vos_vs_temperature_5_typ.gif
Figure 5. Offset Voltage vs Temperature
OPA462 WLHE2X_1_OPA462_vos_vs_vcm_n90_n85.gif
Figure 7. Offset Voltage vs Common-Mode Voltage
(Low VCM)
OPA462 WL8FVI_1_OPA462_vos_vs_vs_0_12.gif
Figure 9. Offset Voltage vs Power Supply (Low Supply)
OPA462 WL4SIC_1_OPA462_vos_vs_vout_n90_n80.gif
Figure 11. Offset Voltage vs Output Voltage (Low Output)
OPA462 WL1T5A_1_OPA462_cmrr_vs_temperature.gif
Figure 13. CMRR vs Temperature
OPA462 WLHC07_1_OPA462_psrr_vs_temperature.gif
Figure 15. PSRR vs Temperature
OPA462 EMIRR_Mod.gif

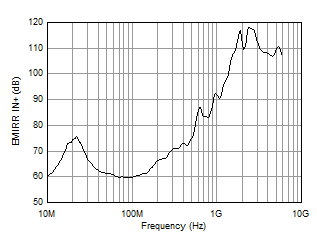

Figure 17. EMIRR vs Frequency
OPA462 WLVHXF_1_OPA462_negative_input_bias_current.gif
Figure 19. Input Bias Current Production Distribution at 25℃
OPA462 WLUIMP_1_OPA462_ib_vs_vcm.gif
Figure 21. IB vs Common-Mode Voltage
OPA462 WLGTQD_1_OPA462_StatusFlag_OutputCurrentLimit.gif
Figure 23. Current Limit Response
OPA462 WL0XK1_1_OPA462_aol_vs_output_voltage.gif
Figure 25. Open-Loop Gain vs Output Voltage
OPA462 WL5J53_1_Open_Loop_Output_Impedance.gif

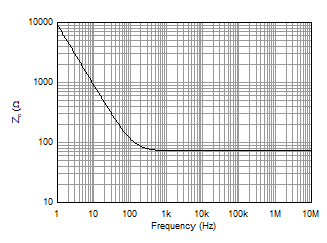

Figure 27. Open-Loop Output Impedance vs Frequency
OPA462 WLLRUJ_1_OPA462_FullPowerBandwidth.gif

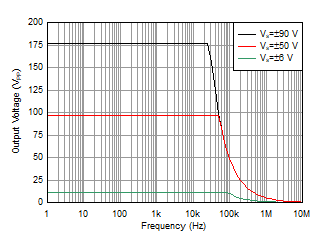

Figure 29. Maximum Output Voltage vs Frequency
OPA462 WL1B3B_1_OPA462_negative_output_voltage_vs_output_current.gif
Figure 31. Negative Output Voltage vs Output Current
OPA462 WLD9JA_1_OPA462_NegativeOverload.gif
Figure 33. Negative Overload Recovery
OPA462 WLRG6D_1_SettlingTime.gif
Figure 35. Settling Time
OPA462 WL1ARU_1_OPA462_InvertingOvershootCapload.gif
G = –1
Figure 37. Small-Signal Overshoot vs Capacitive Load
OPA462 WLYZ1Y_1_OPA462_G-1_SmallStep.gif
G = –1
Figure 39. Small-Signal Step Response
OPA462 WLF5J1_1_OPA462_G-1_LargeStep.gif
G = –1
Figure 41. Large-Signal Step Response
OPA462 SlewRateVsAmplitude.gif
Figure 43. Slew Rate vs Output Step Size
OPA462 SlewRateVsSupply_NonInverting.gif
Figure 45. Slew Rate vs Supply Voltage (Noninverting)
OPA462 WL0T2G_1_OPA462_THDN_Vs_Frequency_G20.gif
G = 20
Figure 47. THD+N Ratio vs Frequency
OPA462 WLR5SX_1_OPA462_THDN_Vs_Amplitude_G20.gif
G = 20
Figure 49. THD+N Ratio vs Output Amplitude
OPA462 WLU6Z2_1_OPA462_VoltageNoiseSpectralDensity.gif
Figure 51. Input Voltage Noise Spectral Density
OPA462 WLIJ0V_1_OPA462_iq_production_distribution.gif
Figure 53. Quiescent Current Production Distribution at 25℃
OPA462 WLF76R_1_OPA462_iq_vs_temperature.gif
Figure 55. Quiescent Current vs Temperature
OPA462 WLIAFX_1_OPA462_iq_vs_enable_voltage.gif
Figure 57. Quiescent Current vs Enable Voltage
OPA462 WL08WJ_1_OPA462_status_flag_current_vs_status_flag_voltage_ed_com_delta.gif
Figure 59. Status Flag Current vs Voltage
OPA462 WLH5RD_1_OPA462_vos_histogram_85c.gif
Figure 2. Offset Voltage Distribution at 85°C
OPA462 WLRZ7V_1_OPA462_vos_drift_histogram.gif
Figure 4. Offset Voltage Drift Distribution from –40°C to +85°C
OPA462 WL9F3F_1_OPA426_vos_warmup.gif
Figure 6. Offset Voltage Warmup
OPA462 WL0P53_1_OPA462_vos_vs_vcm_85_90.gif
Figure 8. Offset Voltage vs Common-Mode Voltage
(High VCM)
OPA462 WLIX2N_1_OPA462_vos_vs_vs_6_90.gif
Figure 10. Offset Voltage vs Power Supply (High Supply)
OPA462 WLLJ2C_1_OPA462_vos_vs_vout_80_90.gif
Figure 12. Offset Voltage vs Output Voltage (High Output)
OPA462 WLU0PZ_1_OPA462_cmrr_vs_frequency.gif
Figure 14. CMRR vs Frequency
OPA462 WLIPSO_1_OPA462_PSRR_Vs_Frequency.gif
Figure 16. PSRR vs Frequency
OPA462 WL6JVK_1_OPA462_NoPhaseReversal.gif
Figure 18. No Phase Reversal
OPA462 WLHX9Y_1_OPA462_ib_vs_temp_pos_neg_os_6_90.gif
Figure 20. IB vs Temperature
OPA462 EnableResponse.gif
Figure 22. Enable Response
OPA462 WLFKES_1_OPA462_aol_vs_temperature.gif
Figure 24. Open-Loop Gain vs Temperature
OPA462 WLCL2E_1_OPA462_Aol_Phase.gif
Figure 26. Open-Loop Gain and Phase vs Frequency
OPA462 WLIKUI_1_OPA462_ClosedLoopGain.gif
Figure 28. Closed-Loop Gain vs Frequency
OPA462 WLVK7J_1_OPA462_positive_output_voltage_vs_output_current.gif
Figure 30. Positive Output Voltage vs Output Current
OPA462 WLQAAP_1_OPA462_isc_vs_temp.gif
Figure 32. Short-Circuit Current vs Temperature
OPA462 WLD9JA_1_OPA462_PositiveOverload.gif
Figure 34. Positive Overload Recovery
OPA462 WLEQOT_1_OPA462_PhaseMarginVsCapload.gif
Figure 36. Phase Margin vs Capacitive Load
OPA462 WLWIXK_1_OPA462_NonInvertingOvershootCapload.gif
G = +1
Figure 38. Small-Signal Overshoot vs Capacitive Load
OPA462 WLYZ1Y_1_OPA462_G1_SmallStep.gif
G = +1
Figure 40. Small-Signal Step Response
OPA462 WLF5J1_1_OPA462_G1_LargeStep.gif
G = +1
Figure 42. Large-Signal Step Response
OPA462 SlewRateVsSupply_Inverting.gif

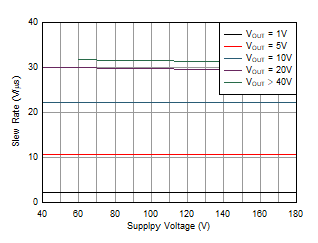

Figure 44. Slew Rate vs Supply Voltage (Inverting)
OPA462 WL0T2G_1_OPA462_THDN_Vs_Frequency_G10.gif
G = 10
Figure 46. THD+N Ratio vs Frequency
OPA462 WLR5SX_1_OPA462_THDN_Vs_Amplitude_G10.gif
G = 10
Figure 48. THD+N Ratio vs Output Amplitude
OPA462 WLNZM5_1_p1_10Hz_Noise.gif
Figure 50. 0.1-Hz to 10-Hz Noise
OPA462 WLPUQG_1_Current_Noise.gif
Figure 52. Current Noise Density
OPA462 WL91HM_1_OPA462_iq_vs_supply.gif
Figure 54. Quiescent Current vs Supply Voltage
OPA462 WLVR3W_1_OPA462_status_flag_voltage_vs_temperature.gif
Figure 56. Status Flag Voltage vs Temperature
OPA462 WLZ521_1_OPA462_enable_current_vs_enable_voltage.gif
Figure 58. Enable Current vs Enable Voltage
