Typical Characteristics

at TA = 25°C, VS = ±15 V, RL = 10 kΩ connected to midsupply, and VCM = VOUT = midsupply (unless otherwise noted)

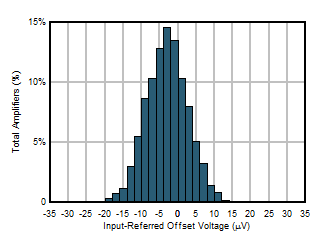

Figure 6-1 Offset Voltage Production Distribution

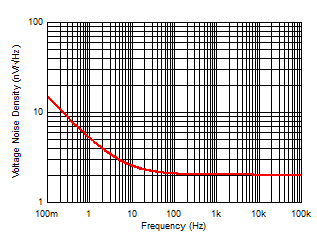

Figure 6-3 Input Voltage Noise Spectral Density vs Frequency

Figure 6-5 0.1-Hz to 10-Hz Voltage Noise

f = 1 kHz RL = 600 Ω

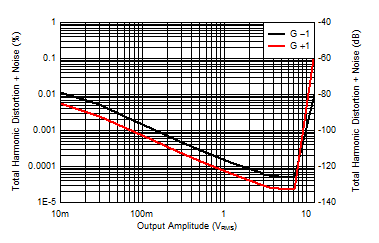

Figure 6-7 THD+N vs Output Amplitude
5 typical units

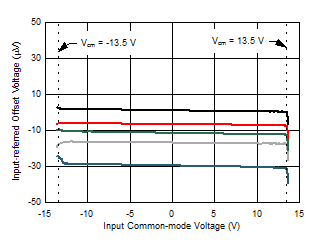

Figure 6-9 Offset Voltage vs Common-Mode Voltage

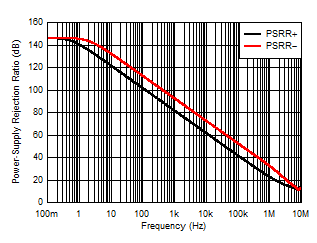

Figure 6-11 PSSR vs Frequency

Figure 6-13 CMRR vs Frequency

Figure 6-15 Open-Loop Output Impedance vs Frequency

Figure 6-17 Open-Loop Gain vs Temperature

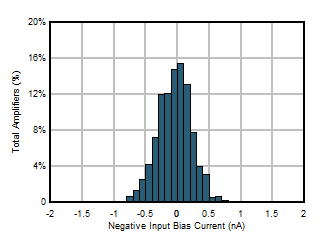

Figure 6-19 Negative Input Bias Current Production Distribution

Figure 6-21 Input Bias and Input Offset Currents vs Temperature

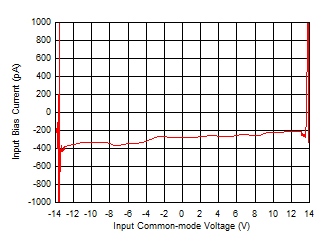

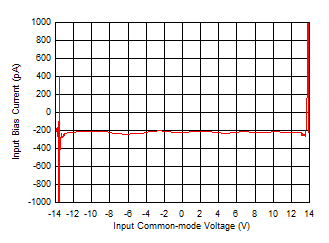

Figure 6-23 Negative Input Bias Current vs Common-Mode Voltage

Figure 6-25 Quiescent Current vs Supply Voltage

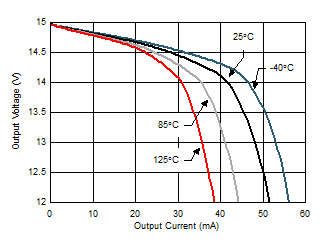

Figure 6-27 Output Voltage vs Output Current (Sourcing)

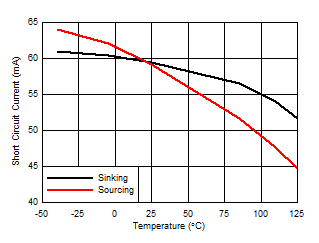

Figure 6-29 Short-Circuit Current vs Temperature
G = –10
Figure 6-31 Positive Overload Recovery
G = +110-mV step, CL = 100 pF, RL = 600 Ω
Figure 6-33 Small-Signal Step Response
G = +110-V step, CL = 100 pF, RL = 600 Ω
Figure 6-35 Large-Signal Step Response

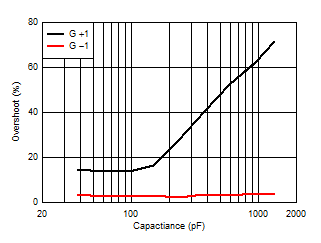

Figure 6-37 Small-Signal Overshoot vs Capacitive Load
PRF = –10 dBm

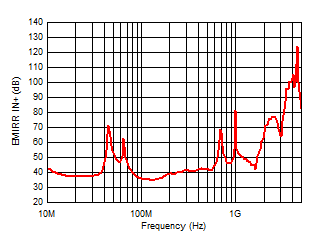

Figure 6-39 EMIRR vs Frequency

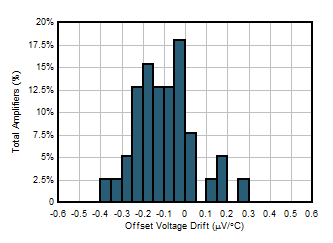

Figure 6-2 Offset Voltage Drift Distribution

Figure 6-4 Input Current Noise Spectral Density vs Frequency
VOUT = 3.5 VRMSRL = 600 Ω
Figure 6-6 THD+N Ratio vs Frequency
5 typical units

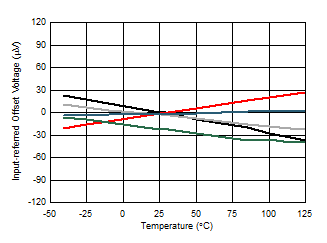

Figure 6-8 Input Offset Voltage vs Temperature
5 typical units

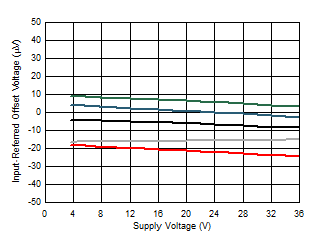

Figure 6-10 Offset Voltage vs Supply Voltage

Figure 6-12 PSRR vs Temperature

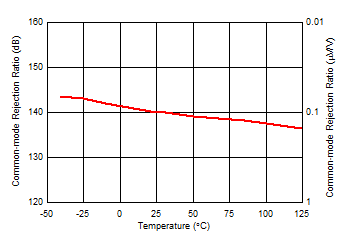

Figure 6-14 CMRR vs Temperature

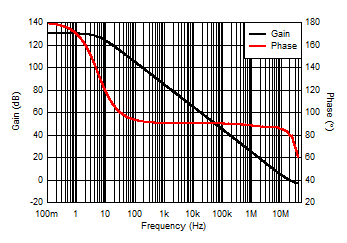

Figure 6-16 Open-Loop Gain and Phase vs Frequency

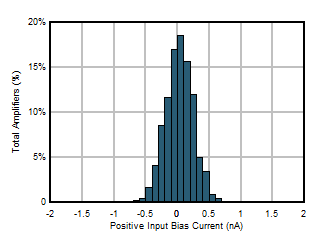

Figure 6-18 Positive Input Bias Current Production Distribution

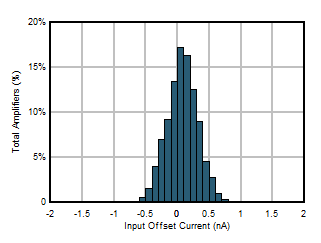

Figure 6-20 Input Offset Current Production Distribution

Figure 6-22 Positive Input Bias Current vs Common-Mode Voltage

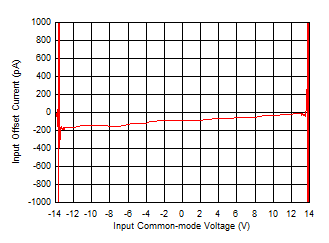

Figure 6-24 Input Offset Current vs Common-Mode Voltage

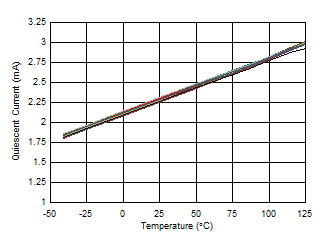

Figure 6-26 Quiescent Current vs Temperature

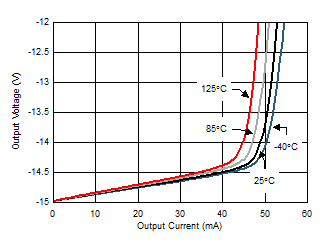

Figure 6-28 Output Voltage vs Output Current (Sinking)

Figure 6-30 No Phase Reversal
G = –10
Figure 6-32 Negative Overload Recovery
G = –110-mV step, CL = 100 pF, RL = 600 Ω
Figure 6-34 Small-Signal Step Response
G = –110-V step, CL = 100 pF, RL = 600 Ω
Figure 6-36 Large-Signal Step Response
10-V step
Figure 6-38 Settling Time
