eUSCI (SPI Master Mode) Timing

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)(1)
PARAMETERTEST CONDITIONSVCCMINMAXUNIT
tSTE,LEADSTE lead time, STE active to clockUCSTEM = 1, UCMODEx = 01 or 102.2 V, 3 V150ns
tSTE,LAGSTE lag time, Last clock to STE inactiveUCSTEM = 1, UCMODEx = 01 or 102.2 V, 3 V200ns
tSTE,ACCSTE access time, STE active to SIMO data outUCSTEM = 0, UCMODEx = 01 or 102.2 V40ns
3 V30
tSTE,DISSTE disable time, STE inactive to SIMO high impedanceUCSTEM = 0, UCMODEx = 01 or 102.2 V40ns
3 V30
tSU,MISOMI input data setup time2.2 V50ns
3 V30
tHD,MISOMI input data hold time2.2 V, 3 V0ns
tVALID,MOSIMO output data valid time(2)UCLK edge to SIMO valid, CL = 20 pF2.2 V7ns
3 V5
tHD,MOSIMO output data hold time(3)CL = 20 pF2.2 V, 3 V0ns
fUCxCLK = 1/2tLO/HI with tLO/HI = max(tVALID,MO(eUSCI) + tSU,SI(Slave), tSU,MI(eUSCI) + tVALID,SO(Slave))
For the slave parameters tSU,SI(Slave) and tVALID,SO(Slave), refer to the SPI parameters of the attached slave.
Specifies the time to drive the next valid data to the SIMO output after the output changing UCLK clock edge. Refer to the timing diagrams in Figure 8-10 and Figure 8-11.
Specifies how long data on the SIMO output is valid after the output changing UCLK clock edge. Negative values indicate that the data on the SIMO output can become invalid before the output changing clock edge observed on UCLK. Refer to the timing diagrams in Figure 8-10 and Figure 8-11.

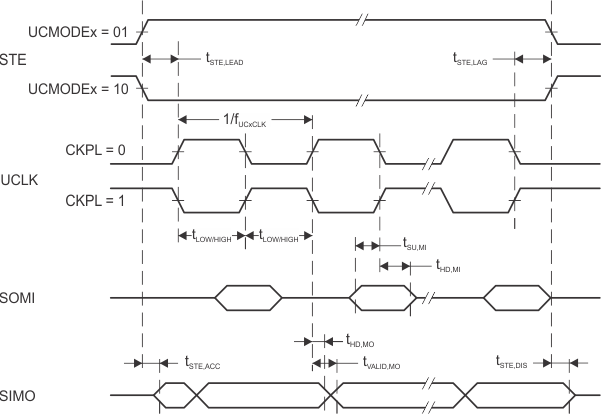

GUID-9BAA3EA2-86B9-462C-9372-437C43C84017-low.gifFigure 8-10 SPI Master Mode, CKPH = 0

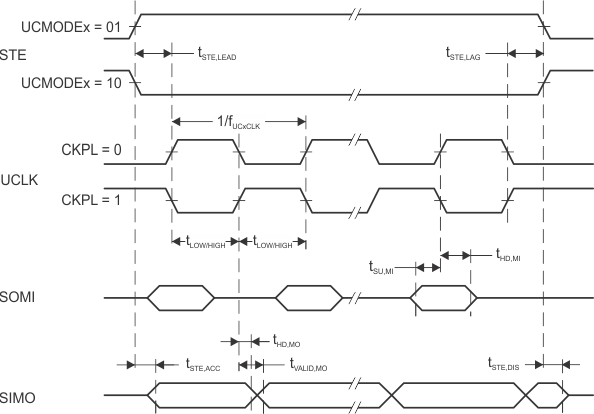

GUID-C052AFF8-87B9-4D6C-AD8A-A567D562EEC1-low.gifFigure 8-11 SPI Master Mode, CKPH = 1
