5.10 Typical Characteristics, Low-Power Mode Supply Currents

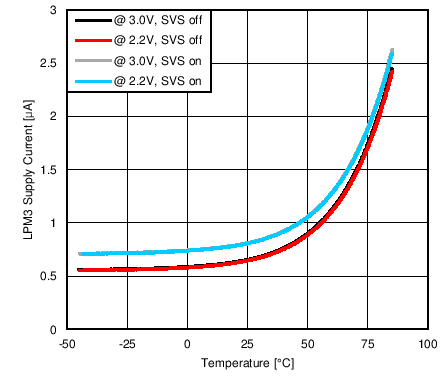

MSP430FR6972 MSP430FR69721 MSP430FR6970 MSP430FR6872 MSP430FR68721 MSP430FR6870 MSP430FR6922 MSP430FR69221 MSP430FR6920 MSP430FR6822 MSP430FR68221 MSP430FR6820 C001_lpm3_slase23.pngFigure 5-2 LPM3 Supply Current vs Temperature (LPM3,XT3.7)

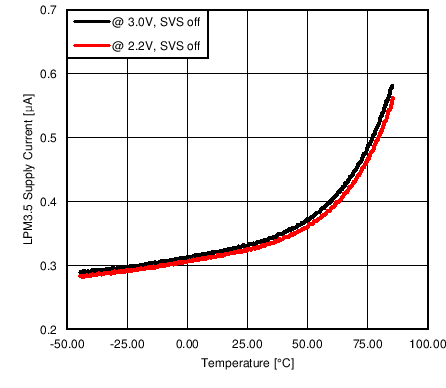

MSP430FR6972 MSP430FR69721 MSP430FR6970 MSP430FR6872 MSP430FR68721 MSP430FR6870 MSP430FR6922 MSP430FR69221 MSP430FR6920 MSP430FR6822 MSP430FR68221 MSP430FR6820 C003_lpm35_slase23.pngFigure 5-4 LPM3.5 Supply Current vs Temperature (LPM3.5,XT3.7)

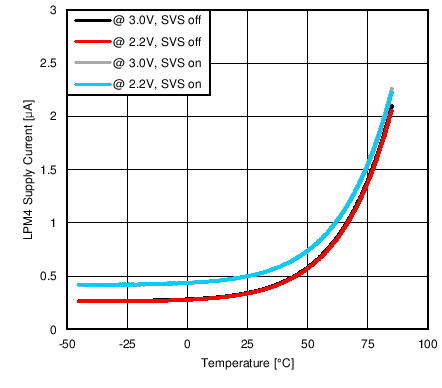

MSP430FR6972 MSP430FR69721 MSP430FR6970 MSP430FR6872 MSP430FR68721 MSP430FR6870 MSP430FR6922 MSP430FR69221 MSP430FR6920 MSP430FR6822 MSP430FR68221 MSP430FR6820 C002_lpm4_slase23.pngFigure 5-3 LPM4 Supply Current vs Temperature (LPM4,SVS)

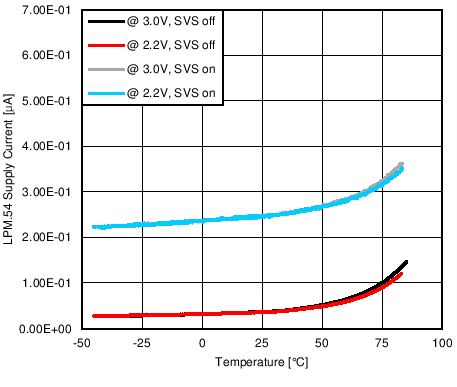

MSP430FR6972 MSP430FR69721 MSP430FR6970 MSP430FR6872 MSP430FR68721 MSP430FR6870 MSP430FR6922 MSP430FR69221 MSP430FR6920 MSP430FR6822 MSP430FR68221 MSP430FR6820 C004_lpm45_slase23.pngFigure 5-5 LPM4.5 Supply Current vs Temperature (LPM4.5)
