6.12.34 Port PJ (PJ.0 to PJ.3) JTAG Pins TMS, TCK, TDI/TCLK, Input/Output With Schmitt Trigger or Output

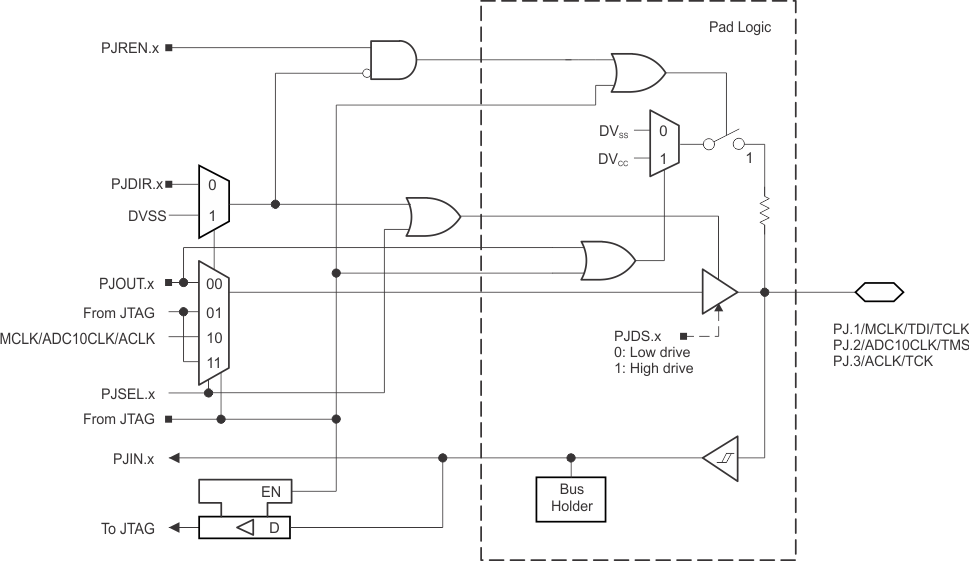

Figure 6-39 shows the port diagram. Table 6-97 summarizes the selection of the pin functions.

MSP430F6779A MSP430F6778A MSP430F6777A MSP430F6776A MSP430F6775A MSP430F6769A MSP430F6768A MSP430F6767A MSP430F6766A MSP430F6765A MSP430F6749A MSP430F6748A MSP430F6747A MSP430F6746A MSP430F6745A pj_123_slas731.gifFigure 6-39 Port PJ (PJ.1 to PJ.3) Diagram

Table 6-97 Port PJ (PJ.0 to PJ.3) Pin Functions

PIN NAME (PJ.x) x FUNCTION CONTROL BITS OR SIGNALS(1)
PJDIR.x PJSEL.x JTAG MODE
PJ.0/SMCLK/TDO 0 PJ.0 (I/O)(1) I: 0; O: 1 0 0
SMCLK 1 1 0
TDO(2) x x 1
PJ.1/MCLK/TDI/TCLK 1 PJ.1 (I/O)(1) I: 0; O: 1 0 0
MCLK 1 1 0
TDI/TCLK(2)(3) x x 1
PJ.2/ADC10CLK/TMS 2 PJ.2 (I/O)(1) I: 0; O: 1 0 0
ADC10CLK 1 1 0
TMS(2)(3) x x 1
PJ.3/ACLK/TCK 3 PJ.3 (I/O)(1) I: 0; O: 1 0 0
ACLK 1 1 0
TCK(2)(3) x x 1
(1) Default condition
(2) The pin direction is controlled by the JTAG module.
(3) In JTAG mode, pullups are activated automatically on TMS, TCK, and TDI/TCLK. PJREN.x are don't care.
