6.12.31 Port P11 (P11.2 and P11.3) Input/Output With Schmitt Trigger (PEU Package Only)

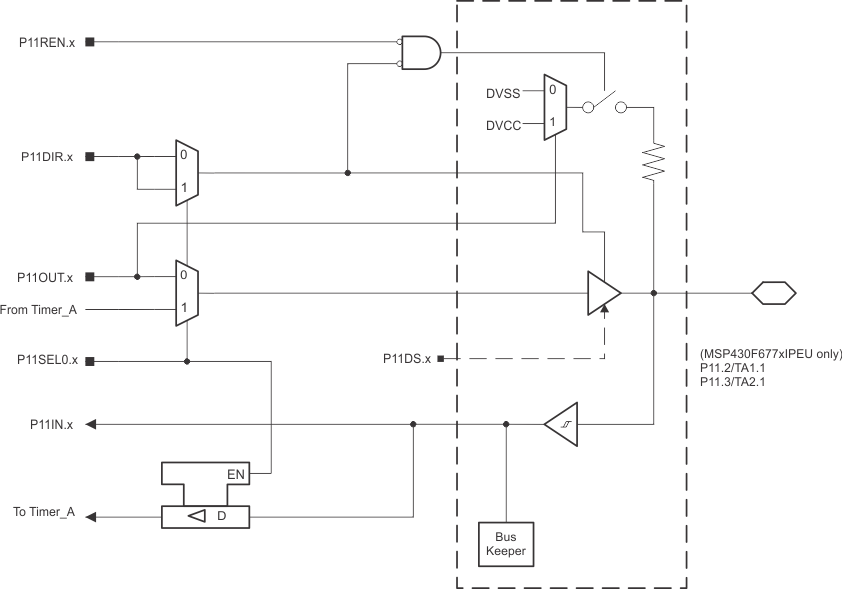

Figure 6-36 shows the port diagram. Table 6-95 summarizes the selection of the pin functions.

MSP430F6779A MSP430F6778A MSP430F6777A MSP430F6776A MSP430F6775A MSP430F6769A MSP430F6768A MSP430F6767A MSP430F6766A MSP430F6765A MSP430F6749A MSP430F6748A MSP430F6747A MSP430F6746A MSP430F6745A P11_23.gifFigure 6-36 Port P11 (P11.2 and P11.3) Diagram (PEU Package Only)

Table 6-95 Port P11 (P11.2 and P11.3) Pin Functions (PEU Package Only)

PIN NAME (P11.x) x FUNCTION CONTROL BITS OR SIGNALS
P11DIR.x P11SEL0.x
P11.2/TA1.1 2 P11.2 (I/O) I:0; O:1 0
TA1.CCI1A 0 1
TA1.1 1 1
P11.3/TA2.1 3 P11.3 (I/O) I:0; O:1 0
TA2.CCI1A 0 1
TA2.1 1 1
