6.12.10 Ports P3 (P3.0) Input/Output With Schmitt Trigger (PZ Package Only)

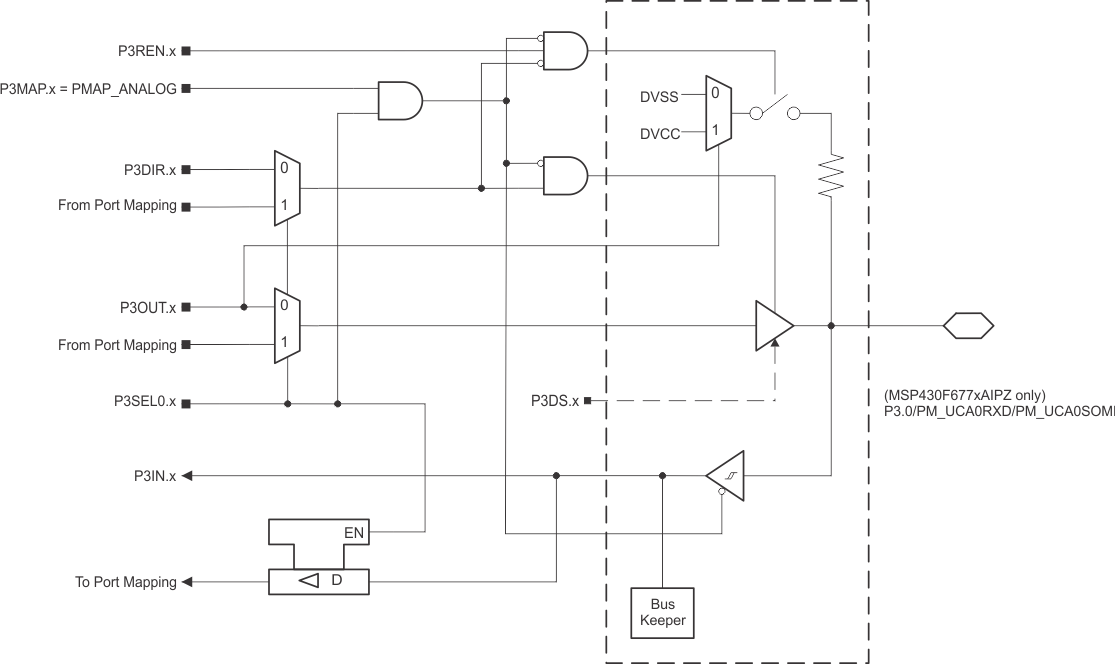

Figure 6-15 shows the port diagram. Table 6-74 summarizes the selection of the pin functions.

MSP430F6779A MSP430F6778A MSP430F6777A MSP430F6776A MSP430F6775A MSP430F6769A MSP430F6768A MSP430F6767A MSP430F6766A MSP430F6765A MSP430F6749A MSP430F6748A MSP430F6747A MSP430F6746A MSP430F6745A P3_0_IPZ.gifFigure 6-15 Ports P3 (P3.0) Diagram (PZ Package Only)

Table 6-74 Ports P3 (P3.0) Pin Functions (PZ Package Only)

PIN NAME (P3.x) x FUNCTION CONTROL BITS OR SIGNALS(1)
P3DIR.x P3SEL0.x P3MAP.x
P3.0/PM_UCA0RXD/ PM_UCA0SOMI 0 P3.0 (I/O) I:0; O:1 0 X
Mapped secondary digital function X 1 ≤ 30
Output driver and input Schmitt trigger disabled X 1 = 31
