5.41 Ports PU.0 and PU.1

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN MAX UNIT
VOH High-level output voltage VUSB = 3.3 V ±10%, IOH = –25 mA.
See Figure 5-17 for typical characteristics		 2.4 V
VOL Low-level output voltage VUSB = 3.3 V ±10%, IOL = 25 mA.
See Figure 5-16 for typical characteristics		 0.4 V
VIH High-level input voltage VUSB = 3.3 V ±10%
See Figure 5-18 for typical characteristics		 2.0 V
VIL Low-level input voltage VUSB = 3.3 V ±10%
See Figure 5-18 for typical characteristics		 0.8 V
MSP430F5510 MSP430F5509 MSP430F5508 MSP430F5507 MSP430F5506 MSP430F5505 MSP430F5504 MSP430F5503 MSP430F5502 MSP430F5501 MSP430F5500 slas645-PUVOL.gifFigure 5-16 Ports PU.0, PU.1 Typical Low-Level Output Characteristics

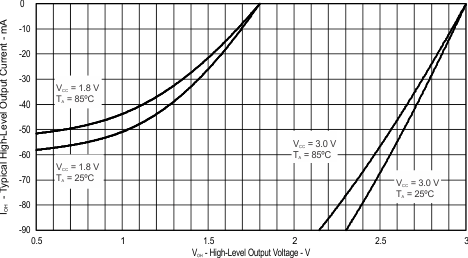

MSP430F5510 MSP430F5509 MSP430F5508 MSP430F5507 MSP430F5506 MSP430F5505 MSP430F5504 MSP430F5503 MSP430F5502 MSP430F5501 MSP430F5500 slas645-PUVOH.gifFigure 5-17 Ports PU.0, PU.1 Typical High-Level Output Characteristics
MSP430F5510 MSP430F5509 MSP430F5508 MSP430F5507 MSP430F5506 MSP430F5505 MSP430F5504 MSP430F5503 MSP430F5502 MSP430F5501 MSP430F5500 slas645-PU_input.gifFigure 5-18 Ports PU.0, PU.1 Typical Input Threshold Characteristics
