5.13 Typical Characteristics – Outputs, Reduced Drive Strength (PxDS.y = 0)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

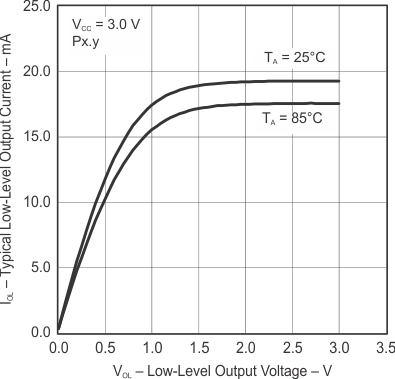

MSP430F5510 MSP430F5509 MSP430F5508 MSP430F5507 MSP430F5506 MSP430F5505 MSP430F5504 MSP430F5503 MSP430F5502 MSP430F5501 MSP430F5500 slas000-005.gifFigure 5-2 Typical Low-Level Output Current vs Low-Level Output Voltage
MSP430F5510 MSP430F5509 MSP430F5508 MSP430F5507 MSP430F5506 MSP430F5505 MSP430F5504 MSP430F5503 MSP430F5502 MSP430F5501 MSP430F5500 slas000-007.gifFigure 5-4 Typical High-Level Output Current vs High-Level Output Voltage

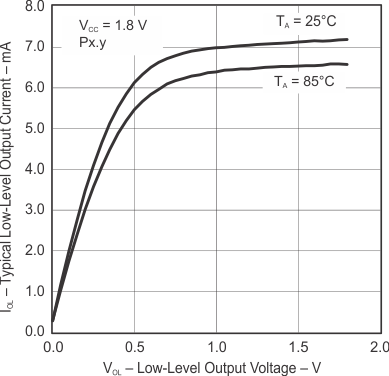

MSP430F5510 MSP430F5509 MSP430F5508 MSP430F5507 MSP430F5506 MSP430F5505 MSP430F5504 MSP430F5503 MSP430F5502 MSP430F5501 MSP430F5500 slas000-006.gifFigure 5-3 Typical Low-Level Output Current vs Low-Level Output Voltage

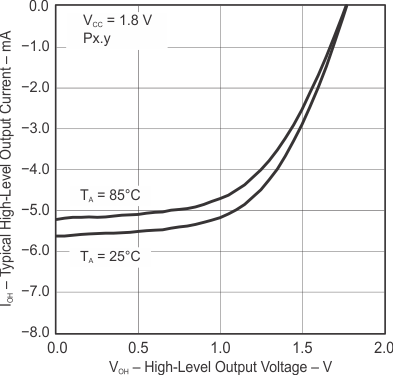

MSP430F5510 MSP430F5509 MSP430F5508 MSP430F5507 MSP430F5506 MSP430F5505 MSP430F5504 MSP430F5503 MSP430F5502 MSP430F5501 MSP430F5500 slas000-008.gifFigure 5-5 Typical High-Level Output Current vs High-Level Output Voltage
