6.10.14 Port J (PJ.6) Input/Output With Schmitt Trigger

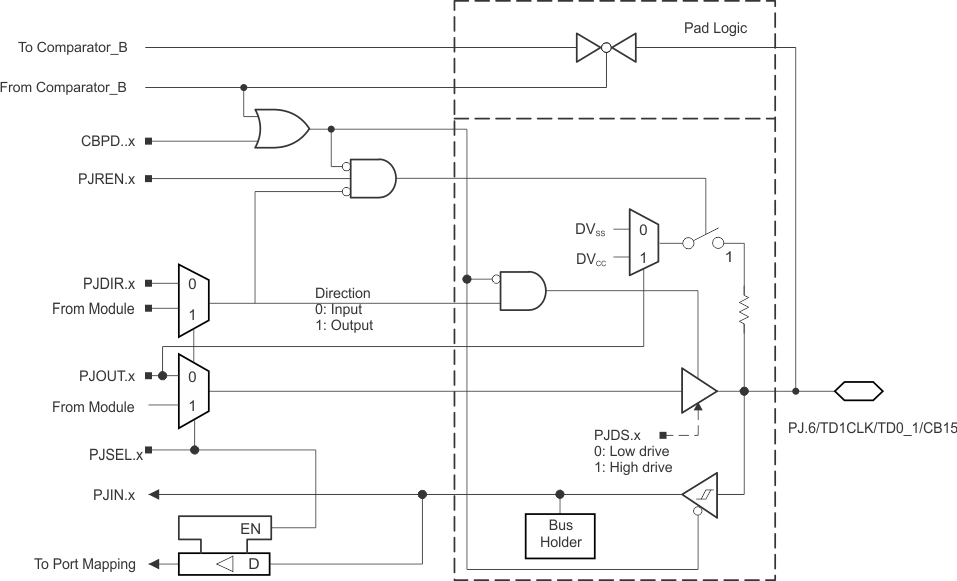

Figure 6-15 shows the port diagram. Table 6-55 summarizes the selection of the pin function.

MSP430F5172 MSP430F5152 MSP430F5132 MSP430F5171 MSP430F5151 MSP430F5131 slas619-r-pj_6.gifFigure 6-15 Port PJ (PJ.6) Diagram

Table 6-55 Port PJ (PJ.6) Pin Functions

PIN NAME (PJ.x) x FUNCTION CONTROL BITS OR SIGNALS(1)
PJDIR.x PJSEL.x CBPD.y
PJ.6/ 6 PJ.x (I/O) I: 0; O: 1 0 0
TD1CLK/ TD1 clock input 0 1 0
TD0.1/ TD0.TA1 1 1 0
CB15 CB15 X X 1 (y = 15)
(1) X = Don't care
