6.6 典型特性

除非另有说明，否则 TA = 25°C，RL = 10MΩ（连接至 VS/2），CL = 20pF，VCM = VS/2V。
LPV811 LPV812 811_Dist_1p8.png
VS = 1.8V LPV811
TA = 25°C VCM = V- RL = 空载
Figure 1. LPV811 的失调电压分布
LPV811 LPV812 812A_Dist_1p8.png
VS = 1.8V LPV812，通道 A
TA = 25°C VCM = V- RL = 空载
Figure 3. LPV812 的失调电压分布，通道 A
LPV811 LPV812 812A_Dist_1p8.png
VS = 1.8V LPV812，通道 B
TA = 25°C VCM = V- RL = 空载
Figure 5. LPV812 的失调电压分布，通道 B
LPV811 LPV812 TG_811_Iq_Vs_Vs.png
VCM = V- LPV811 RL = 空载
Figure 7. 电源电流与电源电压间的关系，LPV811
LPV811 LPV812 TG_Vos_Vcm_1p8.png
VS = 1.8V RL = 10MΩ
Figure 9. 典型偏移电压与共模电压间的关系
LPV811 LPV812 TG_812_Vos_Vcm_5V.png
VS = 5V RL = 10MΩ
Figure 11. 典型偏移电压与共模电压间的关系

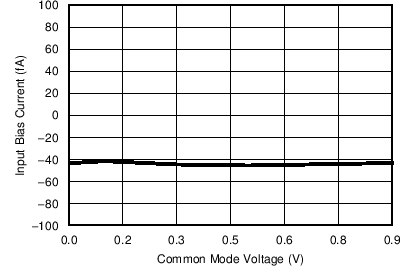

LPV811 LPV812 IB_VCM_1p8V_m40.png
VS = 1.8V TA = -40°C
Figure 13. 输入偏置电流与共模电压间的关系
LPV811 LPV812 IB_VCM_1p8V_25C.png
VS = 1.8V TA = 25°C
Figure 15. 输入偏置电流与共模电压间的关系
LPV811 LPV812 IB_VCM_1p8V_125C.png
VS = 1.8V TA = 125°C
Figure 17. 输入偏置电流与共模电压间的关系
LPV811 LPV812 TG_Isrc_Vo_18V.png
VS = 1.8V RL = 空载
Figure 19. 输出摆幅与拉电流间的关系，1.8V
LPV811 LPV812 TG_Isrc_Vo_3p3.png
VS = 3.3V RL = 空载
Figure 21. 输出摆幅与拉电流间的关系，3.3V
LPV811 LPV812 TG_Isrc_Vo_5V.png
VS = 5V RL = 空载
Figure 23. 输出摆幅与拉电流间的关系，5V
LPV811 LPV812 TG_SSPULSE_1p8.png
TA = 25 RL = 10MΩ Vout = 200mVpp
VS = ±0.9V CL = 20pF AV = +1
Figure 25. 小信号脉冲响应，1.8V
LPV811 LPV812 TG_LSPULSE_1p8.png
TA = 25 RL = 10MΩ Vout = 1Vpp
VS = ±0.9V CL = 20pF AV = +1
Figure 27. 大信号脉冲响应，1.8V
LPV811 LPV812 802_CMRR_vs_Freq.png
TA = 25 RL = 10MΩ ΔVCM = 0.5Vpp
VS = 5V CL = 20p
VCM = Vs/2 AV = +1
Figure 29. CMRR 与频率间的关系
LPV811 LPV812 AVPH_5V_10M.png
TA = -40、25、125°C RL = 10MΩ VOUT = 200mVPP
VS = 5V CL = 20pF VCM = Vs/2
Figure 31. 开环增益和相位，5V，10MΩ 负载
LPV811 LPV812 AVPH_1p8V_1M.png
TA = -40、25、125°C RL = 1MΩ VOUT = 200mVPP
VS = 5V CL = 20pF VCM = Vs/2
Figure 33. 开环增益和相位，5V，1MΩ 负载
LPV811 LPV812 AVPH_5V_100k.png
TA = -40、25、125°C RL = 100kΩ VOUT = 200mVPP
VS = 5V CL = 20pF VCM = Vs/2
Figure 35. 开环增益和相位，5V，100kΩ 负载
LPV811 LPV812 AVPH_1p8V_10M.png
TA = -40、25、125°C RL = 10MΩ VOUT = 200mVPP
VS = 1.8V CL = 20pF VCM = Vs/2
Figure 37. 开环增益和相位，1.8V，10MΩ 负载
LPV811 LPV812 AVPH_1p8V_1M.png
TA = -40、25、125°C RL = 1MΩ VOUT = 200mVPP
VS = 1.8V CL = 20pF VCM = Vs/2
Figure 39. 开环增益和相位，1.8V，1MΩ 负载
LPV811 LPV812 AVPH_1p8V_100k.png
A.
TA = -40、25、125°C RL = 100kΩ VOUT = 200mVPP
VS = 1.8V CL = 20pF VCM = Vs/2
Figure 41. 开环增益和相位，1.8V，100kΩ 负载
LPV811 LPV812 811_Dist_3p3.png
VS = 3.3V LPV811
TA = 25°C VCM = V- RL = 空载
Figure 2. LPV811 的失调电压分布
LPV811 LPV812 812A_Dist_3p3.png
VS = 3.3V LPV812，通道 A
TA = 25°C VCM = V- RL = 空载
Figure 4. LPV812 的失调电压分布，通道 A
LPV811 LPV812 812B_Dist_3p3.png
VS = 3.3V LPV812，通道 B
TA = 25°C VCM = V- RL = 空载
Figure 6. LPV812 的失调电压分布，通道 B
LPV811 LPV812 TG_812_Iq_Vs_Vs.png
VCM = V- LPV812 RL = 空载
Figure 8. 电源电流与电源电压间的关系，LPV812
LPV811 LPV812 TG_Vos_Vcm_3p3V.png
VS = 3.3V RL = 10MΩ
Figure 10. 典型偏移电压与共模电压间的关系
LPV811 LPV812 Ib_vs_Temp.png
VS = 5V TA = -40 至 125 VCM = Vs/2
Figure 12. 输入偏置电流与温度间的关系
LPV811 LPV812 IB_VCM_5V_m40.png
VS = 5V TA = -40°C
Figure 14. 输入偏置电流与共模电压间的关系
LPV811 LPV812 IB_VCM_5V_25C.png
VS = 5V TA = 25°C
Figure 16. 输入偏置电流与共模电压间的关系
LPV811 LPV812 IB_VCM_5V_125C.png
VS = 5V TA = 125°C
Figure 18. 输入偏置电流与共模电压间的关系
LPV811 LPV812 TG_Isnk_Vo_18V.png
VS = 1.8V RL = 空载
Figure 20. 输出摆幅与灌电流间的关系，1.8V
LPV811 LPV812 TG_Isnk_Vo_3V.png
VS = 3.3V RL = 空载
Figure 22. 输出摆幅与灌电流间的关系，3.3V
LPV811 LPV812 TG_Isnk_Vo_5V.png
VS = 5V RL = 空载
Figure 24. 输出摆幅与灌电流间的关系，5V
LPV811 LPV812 TG_SSPULSE_5.png
TA = 25 RL = 10MΩ Vout = 200mVpp
VS = ±2.5V CL = 20pF AV = +1
Figure 26. 小信号脉冲响应，5V
LPV811 LPV812 TG_LSPULSE_5.png
TA = 25 RL = 10MΩ Vout = 2Vpp
VS = ±2.5V CL = 20pF AV = +1
Figure 28. 大信号脉冲响应，5V
LPV811 LPV812 PSRR_VS_FREQ.png
TA = 25 RL = 10MΩ ΔVS = 0.5Vpp
VS = 3.3V CL = 20p
VCM = Vs/2 AV = +1
Figure 30. ±PSRR 与频率间的关系
LPV811 LPV812 AVPH_3V_10M.png
TA = -40、25、125°C RL = 10MΩ VOUT = 200mVPP
VS = 3.3V CL = 20pF VCM = Vs/2
Figure 32. 开环增益和相位，3.3V，10MΩ 负载
LPV811 LPV812 AVPH_3V_1M.png
TA = -40、25、125°C RL = 1MΩ VOUT = 200mVPP
VS = 3.3V CL = 20pF VCM = Vs/2
Figure 34. 开环增益和相位，3.3V，1MΩ 负载
LPV811 LPV812 AVPH_3V_100k.png
TA = -40、25、125°C RL = 100kΩ VOUT = 200mVPP
VS = 3.3V CL = 20pF VCM = Vs/2
Figure 36. 开环增益和相位，3.3V，100kΩ 负载
LPV811 LPV812 TG_Zout.png
TA = 25°C VS = 5V RL = 10MΩ
Figure 38. 开环输出阻抗
LPV811 LPV812 Noise.png
TA = 25 RL = 1MΩ VCM = Vs/2
VS = 5V CL = 20pF AV = +1
Figure 40. 输入电压噪声与频率间的关系
LPV811 LPV812 EMIRR_3p3V.png
TA = 25 RL = 1MΩ VCM = Vs/2
VS = 3.3V CL = 20pF AV = +1
Figure 42. EMIRR 性能
