9.2.3.3 Application Curves

The following characteristics apply only to the circuit of Figure 9-16. These parameters are not tested and represent typical performance only. Unless otherwise stated, the following conditions apply: VIN = 12 V, TA = 25°C. For the purpose of offering more information to the designer, information for the application with FPWM pin high (FPWM mode) and FPWM pin low (AUTO mode) is included, although the schematic shows the application running specifically in AUTO mode. The mode is specified under each of the following graphs.

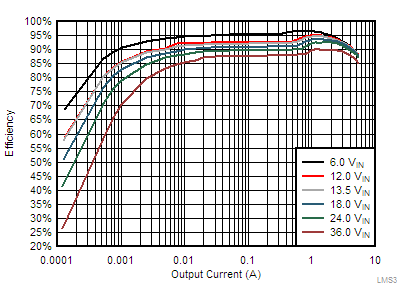

VOUT = 3.3 V AUTO
Figure 9-17 Efficiency

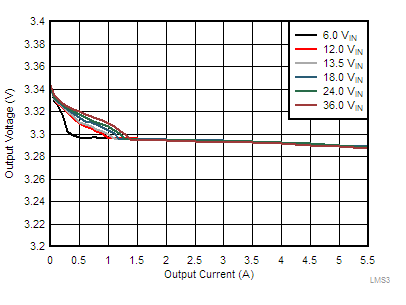

VOUT = 3.3 V AUTO
Figure 9-19 Load and Line Regulation

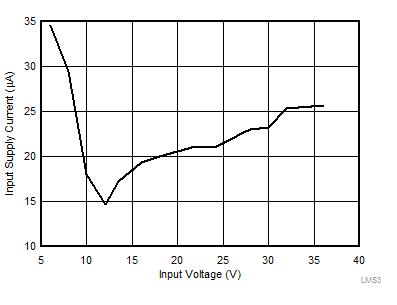

VOUT = 3.3 V AUTO IOUT = 0 A
Figure 9-21 Input Supply Current (Includes Leakage Current of Capacitor)

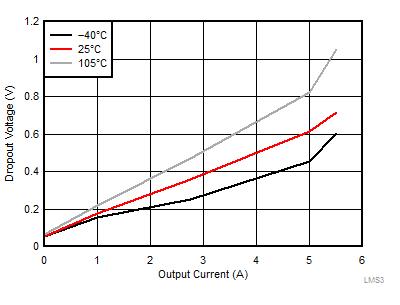

VOUT = 3.3 V
Figure 9-23 Dropout for –3% Regulation
VOUT = 3.3 V AUTO
Figure 9-25 Switching Frequency vs Load Current

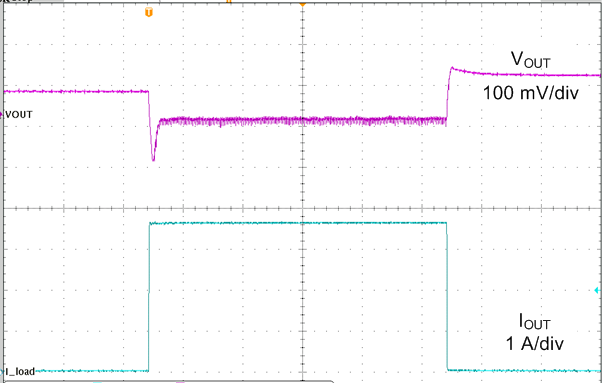

AUTO VOUT = 3.3 V L = 10 µH,
COUT = 190 µF IOUT = 0 A to 3.5 A TR = TF = 1 µs
Figure 9-27 Load Transient

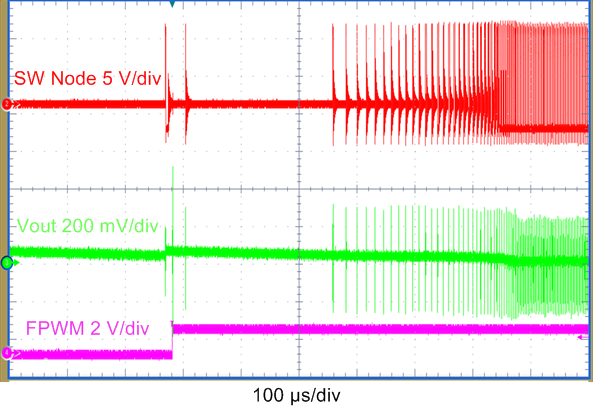

VOUT = 3.3 V IOUT = 10 mA
Figure 9-29 Mode Change Transient AUTO to FPWM mode
VOUT = 3.3 V FPWM
Figure 9-18 Efficiency

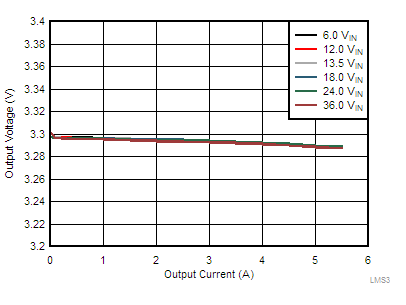

VOUT = 3.3 V FPWM
Figure 9-20 Load and Line Regulation

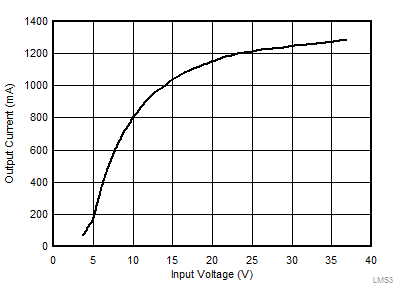

VOUT = 3.3 V
Figure 9-22 Load Current for PFM-to-PWM Transition
VOUT = 3.3 V
Figure 9-24 Dropout for ≥ 330 kHz

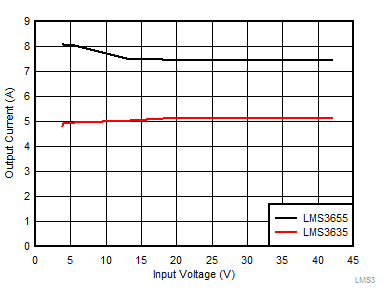

VOUT = 3.3 V L = 10 µH
Figure 9-26 Output Current Level for Overcurrent Protection Trip

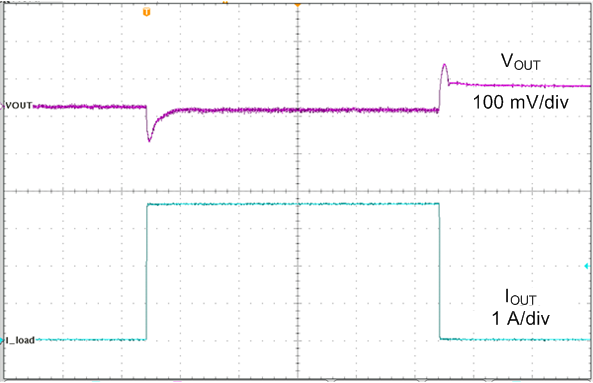

FPWM VOUT = 3.3 V L = 10 µH,
COUT = 190 µF IOUT = 0 A to 3.5 A TR = TF = 1 µs
Figure 9-28 Load Transient
