Application Curves

Unless otherwise specified, the following conditions apply: VIN = 13.5 V, TA = 25°C. The circuit is shown in Figure 10-1, with the appropriate BOM from Table 10-5.
Unless otherwise specified, the following conditions apply: VIN = 13.5 V, TA = 25°C. The circuit is shown in Figure 10-1, with the appropriate BOM from Table 10-5.GUID-C568F143-137F-495A-9A06-272580EE2DC5-low.gif
VOUT = 3.3 VFSW = 2100 kHzAUTO Mode

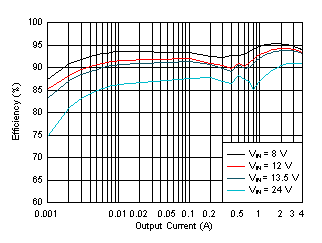

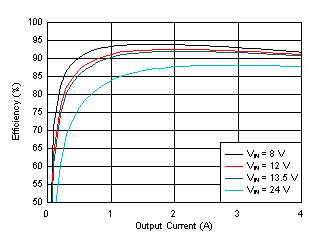

Figure 10-5 LM61440-Q1 Efficiency. Unless otherwise specified, the following conditions apply: VIN = 13.5 V, TA = 25°C. The circuit is shown in Figure 10-1, with the appropriate BOM from Table 10-5.
VOUT = 5 VFSW = 2100 kHzAUTO Mode
Figure 10-7 LM61440-Q1 Efficiency
VOUT = 3.3 VFSW = 400 kHzAuto Mode

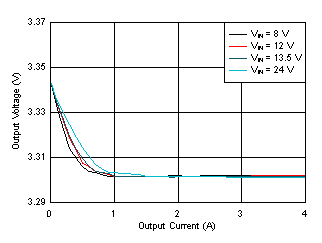

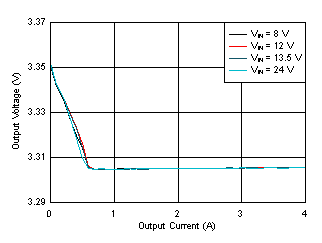

Figure 10-9 LM611440-Q1 Load and Line Regulation
VOUT = 3.3 VFSW = 2100 kHzAuto Mode
Figure 10-11 LM61440-Q1 Load and Line Regulation

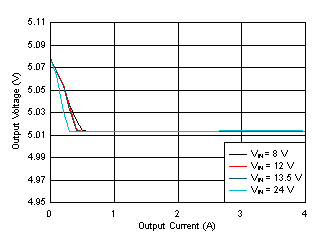

VOUT = 5VFSW = 400 kHzAuto Mode

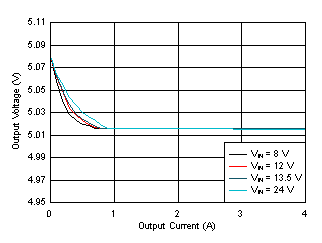

Figure 10-13 LM61440-Q1 Load and Line Regulation
VOUT = 5VFSW = 2100 kHzAuto Mode
Figure 10-15 LM61440-Q1 Load and Line Regulation
VOUT = 3.3 VFSW = 400 kHzAUTO Mode

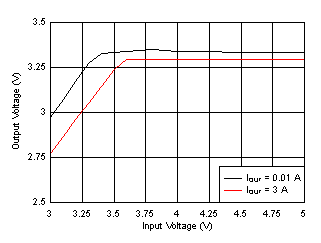

Figure 10-17 LM61440-Q1 Dropout Curve
VOUT = 5 VFSW = 400 kHzAUTO Mode
Figure 10-19 LM61440-Q1 Dropout Curve
VOUT = 3.3 VFSW = 400 kHzAUTO Mode

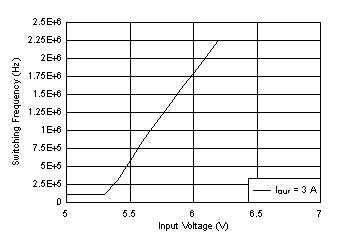

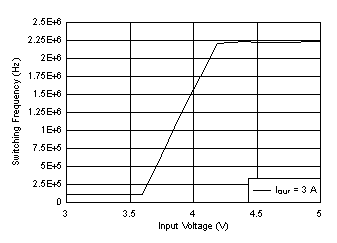

Figure 10-21 LM61440-Q1 Frequency Dropout Curve
VOUT = 5 VFSW = 400 kHzAUTO Mode
Figure 10-23 LM61440-Q1 Frequency Dropout Curve
VOUT = 5 VFSW = 2100 kHzAUTO Mode
IOUT = 100 mAVIN = 13.5 V

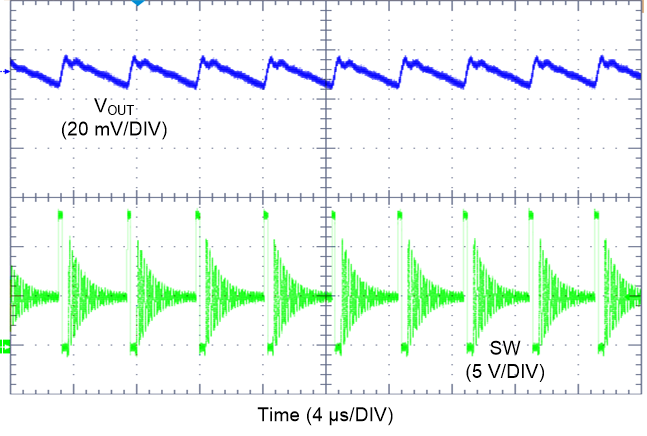

Figure 10-25 LM61440-Q1 Switching Waveform and VOUT Ripple
VOUT = 3.3 VFSW = 2100 kHzFPWM Mode
IOUT = 3.25 AVIN = 13.5 V
Figure 10-27 LM61440-Q1 Start-up with 3.25-A
VOUT = 5 VFSW = 2100 kHzFPWM Mode
IOUT = Short Circuit to 2.5 AVIN = 13.5 V

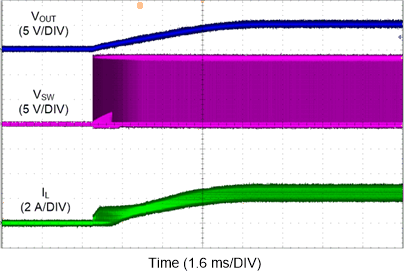

Figure 10-29 LM61440-Q1 Short Circuit Recovery
VOUT = 3.3 VFSW = 400 kHzAUTO Mode
IOUT = 2 A to 4 A to 2 AVIN = 13.5 VTR = TF = 2µs

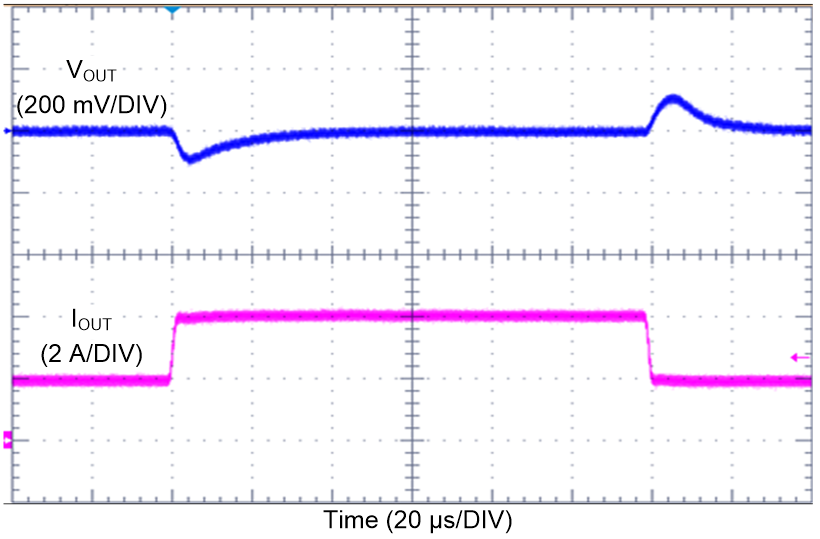

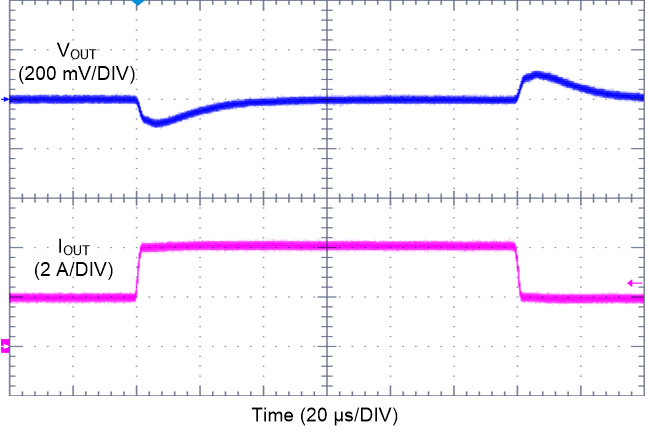

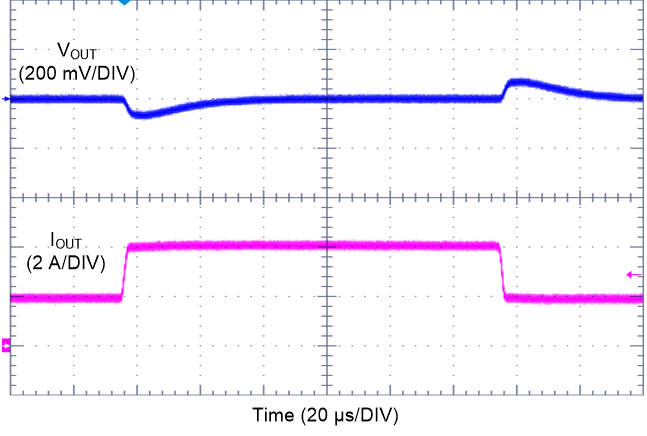

Figure 10-31 LM61440-Q1 Load Transient
VOUT = 5 VFSW = 2100 kHzAUTO Mode
IOUT = 2 A to 4 A to 2 AVIN = 13.5 VTR = TF = 2µs
Figure 10-33 LM61440-Q1 Load Transient
VOUT = 5 VFSW = 400 kHzIOUT = 5 A
Frequency Tested: 30 MHz to 108 MHz

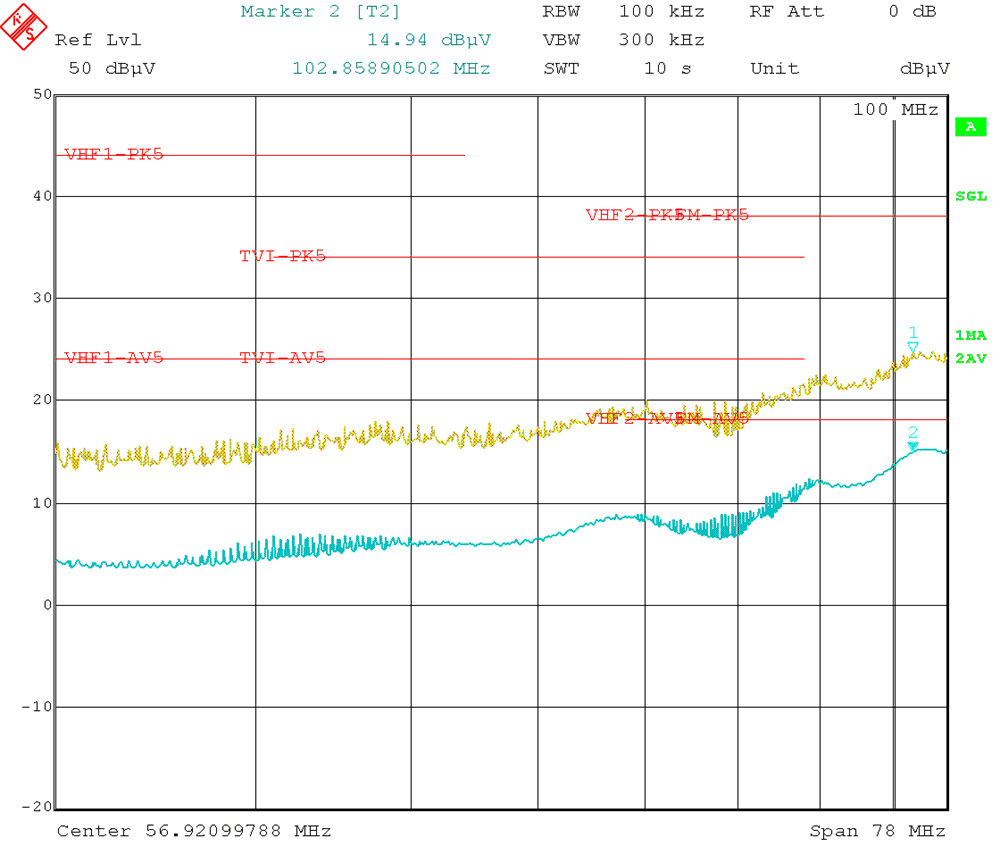

Figure 10-35 Conducted EMI versus CISPR25 Limits (Yellow: Peak Signal, Blue: Average Signal)
VOUT = 5 VFSW = 400 kHzIOUT = 5 A
Frequency Tested: 30 MHz to 300 MHz
Figure 10-37 Radiated EMI Bicon Vertical versus CISPR25 Limits
VOUT = 5 VFSW = 400 kHzIOUT = 5 A
Frequency Tested: 300 MHz to 1 GHz
Figure 10-39 Radiated EMI Log Vertical versus CISPR25 Limits
FSW = 400 kHzNote: Measurements taken with LM61460EVM with 6 A variant

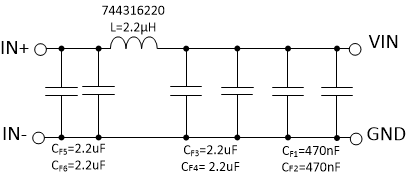

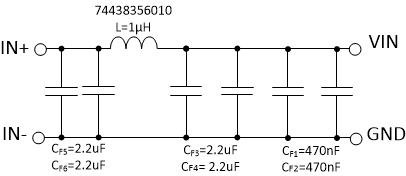

Figure 10-41 Recommended Input EMI Filter
FSW = 2100 kHzVOUT = 5 VIOUT = 5 A
Frequency Tested: 30 MHz to 108 MHz
Figure 10-43 Conducted EMI versus CISPR25 Limits (Yellow: Peak Signal, Blue: Average Signal)
VOUT = 3.3 VFSW = 2100 kHzFPWM Mode
Figure 10-6 LM61440-Q1 Efficiency
VOUT = 5 VFSW = 2100 kHzFPWM Mode
Figure 10-8 LM61440-Q1 Efficiency
VOUT = 3.3 VFSW = 400 kHzFPWM Mode

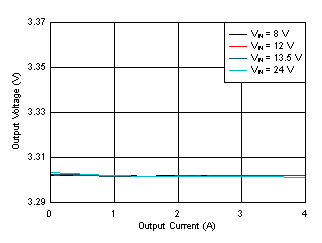

Figure 10-10 LM61440-Q1 Load and Line Regulation
VOUT = 3.3 VFSW = 2100 kHzFPWM Mode
Figure 10-12 LM61440-Q1 Load and Line Regulation
VOUT = 5 VFSW = 400 kHzFPWM Mode

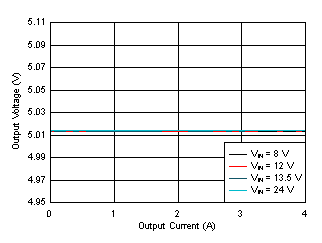

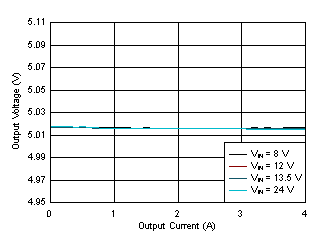

Figure 10-14 LM61440-Q1 Load and Line Regulation
VOUT = 5VFSW = 2100 kHzFPWM Mode
Figure 10-16 LM61440-Q1 Load and Line Regulation
VOUT = 3.3 VFSW = 2100 kHzAUTO Mode
Figure 10-18 LM61440-Q1 Dropout Curve
VOUT = 5 VFSW = 2100 kHzAUTO Mode
Figure 10-20 LM61440-Q1 Dropout Curve
VOUT = 3.3 VFSW = 2100 kHzAUTO Mode
Figure 10-22 LM61440-Q1 Frequency Dropout Curve
VOUT = 5 VFSW = 2100 kHzAUTO Mode
Figure 10-24 LM61440-Q1 Frequency Dropout Curve
VOUT = 5 VFSW = 2100 kHzAUTO Mode
IOUT = 4 AVIN = 13.5 V

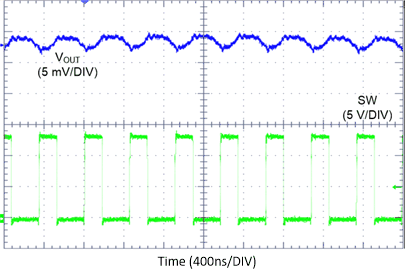

Figure 10-26 LM61440-Q1 Switching Waveform and VOUT Ripple
VOUT = 5 VFSW = 2100 kHzFPWM Mode
IOUT = 2.5 A to Short CircuitVIN = 13.5 V

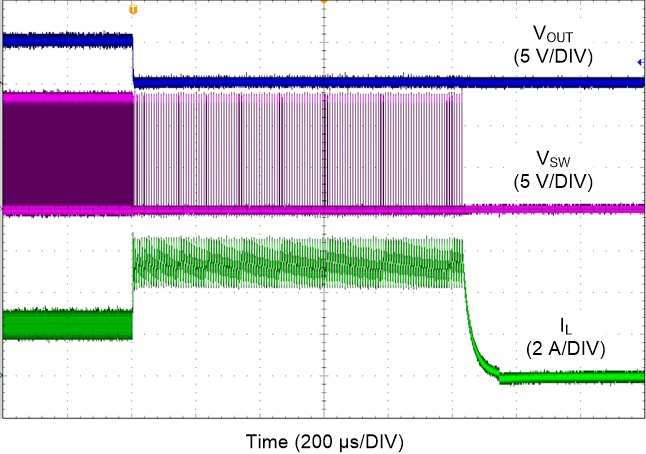

Figure 10-28 LM61440-Q1 Short Circuit Protection
VOUT = 5 VFSW = 2100 kHzFPWM Mode
IOUT = Short CircuitVIN = 13.5 V
Figure 10-30 LM61440-Q1 Short Circuit Performance
VOUT = 3.3 VFSW = 2100 kHzAUTO Mode
IOUT = 2 A to 4 A to 2 AVIN = 13.5 VTR = TF = 2µs
Figure 10-32 LM61440-Q1 Load Transient
VOUT = 5 VFSW = 400 kHzIOUT = 5 A*
Frequency Tested: 150 kHz to 30 MHz
*Tested on 6 A Variant

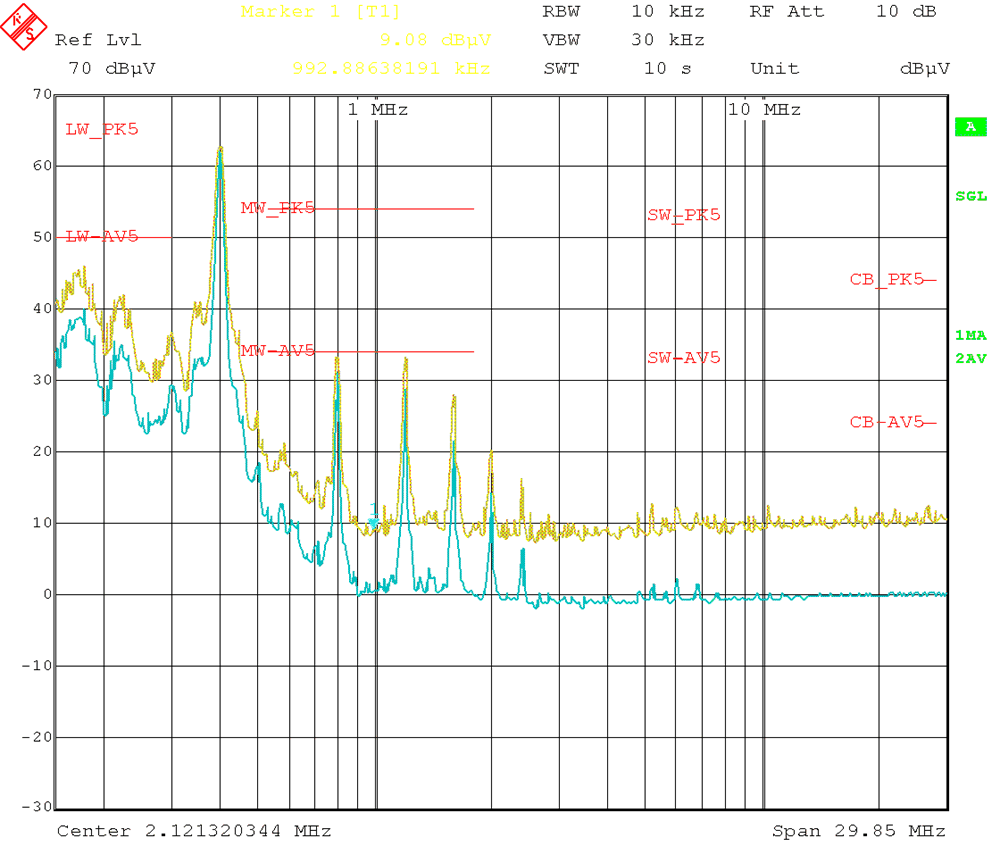

Figure 10-34 Conducted EMI versus CISPR25 Limits (Yellow: Peak Signal, Blue: Average Signal)
VOUT = 5 VFSW = 400 kHzIOUT = 5 A
Frequency Tested: 150 kHz to 30 MHz
Figure 10-36 Radiated EMI Rod versus CISPR25 Limits
VOUT = 5 VFSW = 400 kHzIOUT = 5 A
Frequency Tested: 30 MHz to 300 MHz
Figure 10-38 Radiated EMI Bicon Horizontal versus CISPR25 Limits
VOUT = 5 VFSW = 400 kHzIOUT = 5 A
Frequency Tested: 300 MHz to 1 GHz
Figure 10-40 Radiated EMI Log Horizontal versus CISPR25 Limits
FSW = 2100 kHzVOUT = 5 VIOUT = 5 A*
Frequency Tested: 150 kHz to 30 MHz
*Tested on 6 A Variant

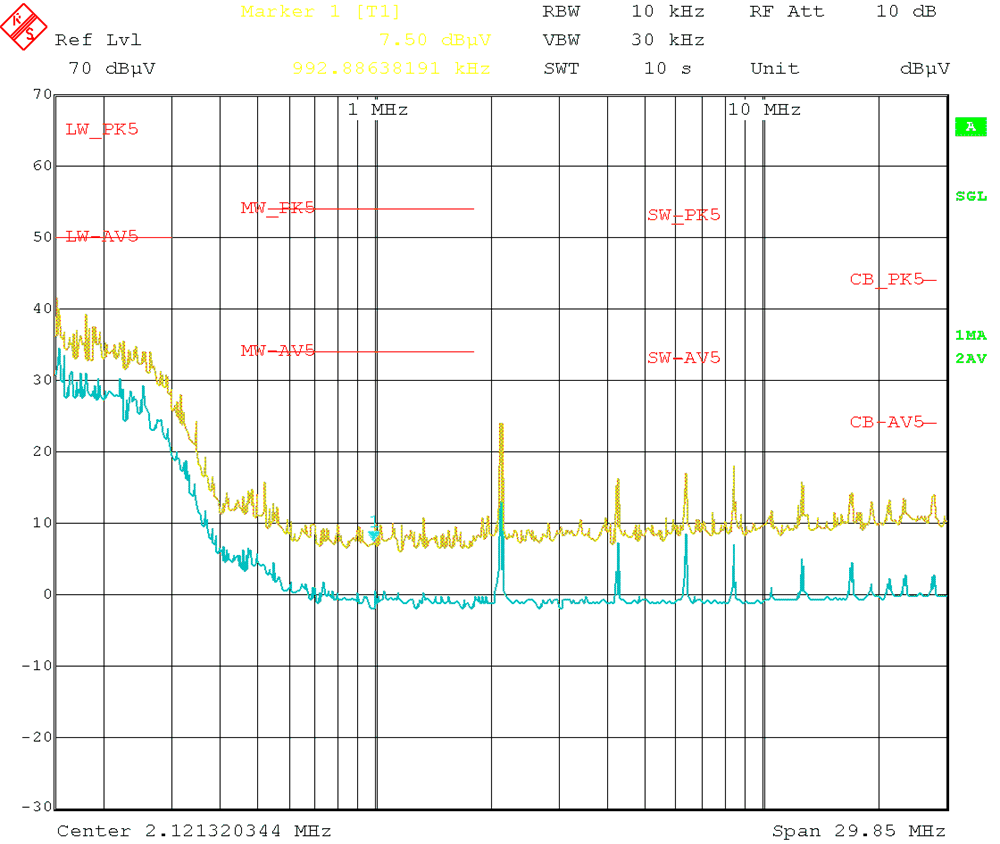

Figure 10-42 Conducted EMI versus CISPR25 Limits (Yellow: Peak Signal, Blue: Average Signal)
Note: All EMI measurements taken with 6-A Variant
FSW = 2100 kHz
Figure 10-44 Recommended Input EMI Filter
Table 10-5 BOM for Typical Application Curves
VOUTFREQUENCYRFBBRTCOUTCIN + CHFLCFF
3.3 V400 kHz43.2 kΩ33.2 kΩ4 x 22 µF2 x 4.7 µF + 2 x 100 nF8.2 µH (XHMI6060)22 pF
3.3 V2100 kHz43.2 kΩ6.04 kΩ3 x 22 µF2 x 4.7 µF + 2 x 100 nF1.5 µH (MAPI 4020HT)22 pF
5 V400 kHz24.9 kΩ33.2 kΩ3 x 22 µF2 x 4.7 µF + 2 x 100 nF8.2 µH (XHMI6060)22 pF
5 V2100 kHz24.9 kΩ6.04 kΩ2 x 22 µF2 x 4.7 µF + 2 x 100 nF1.5 µH (MAPI 4020HT)22 pF
