8.2.3 Application Curves

GUID-B14B2899-6915-430F-8FA8-B95C28F904D0-low.gifFigure 8-2 Conversion Efficiency (Log Scale)

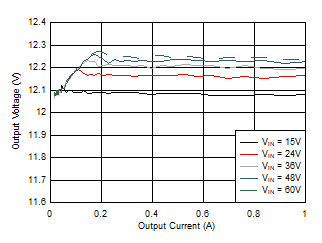

Figure 8-4 Load and Line Regulation Performance
VIN = 24 VIOUT = 0 A

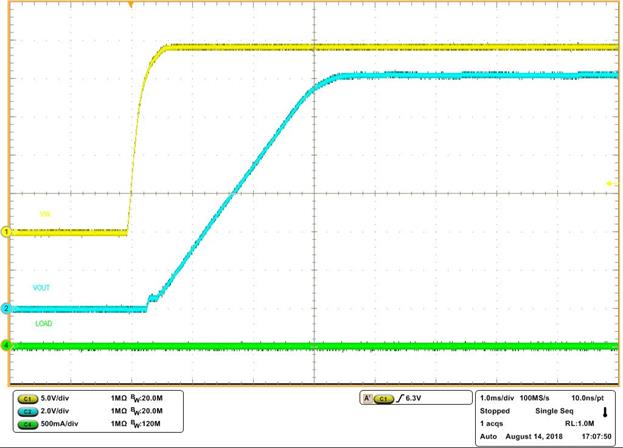

Figure 8-6 No-Load Start-up with VIN
VIN = 24 VIOUT = 0 A
Figure 8-8 No-Load Start-up and Shutdown with EN/UVLO
VIN = 24 VIOUT = 0 A
Figure 8-10 Pre-bias Start-up with EN/UVLO
VIN = 24 VLoad = Short to 0 A
Figure 8-12 Short Circuit Recovery
VIN = 24 VIOUT = 0 A
Figure 8-14 No-Load Switching
VIN = 48 VLoad = 1 ARsnub = 1 Ω, Csnub = 680 pF

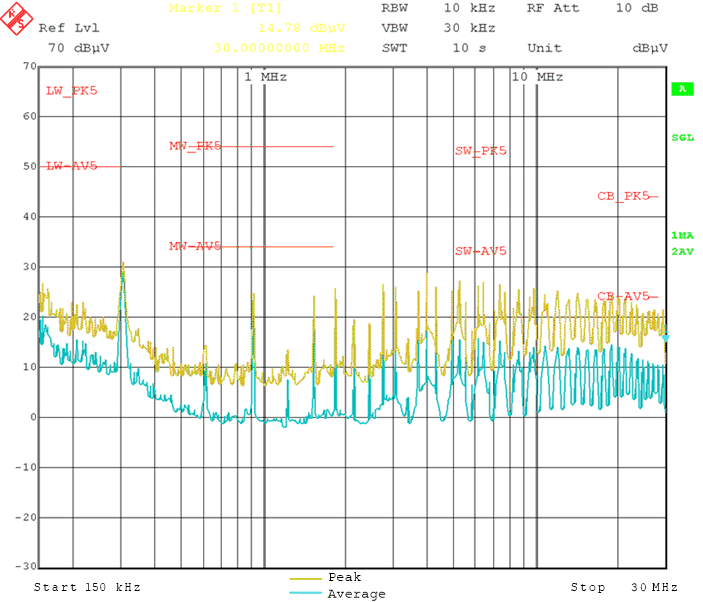

Figure 8-16 CISPR 25 Class 5 Conducted Emissions Plot, 150 kHz to 30 MHz
GUID-D7B80BDC-2C83-4571-9B01-C9285E006208-low.gifFigure 8-3 Conversion Efficiency (Linear Scale)
VIN = 24 VIOUT = 0.25 A to 1 A at 0.1 A/μs
Figure 8-5 Load Step Response
VIN = 24 VIOUT = 1 A (Resistive)
Figure 8-7 Full-Load Start-up with VIN
VIN = 24 VIOUT = 1 A (Resistive)
Figure 8-9 Full-Load Start-up and Shutdown with EN/UVLO
VIN = 24 VLoad = 0 A to Short
Figure 8-11 Short Circuit Applied
VIN = 24 VLoad = 0 A to Short to .0 A
Figure 8-13 No Load to Short Circuit/Short Circuit Recovery
VIN = 24 VIOUT = 1 A

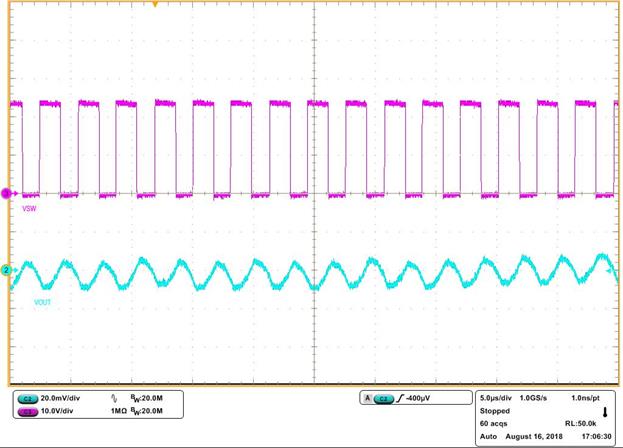

Figure 8-15 Full-Load Switching
VIN = 48 VLoad = 1 ARsnub = 1 Ω, Csnub = 680 pF
Figure 8-17 CISPR 25 Class 5 Conducted Emissions Plot, 30 MHz to 108 MHz
