9.2.3 Application Curves

VOUT = 12 V RON = 102 kΩ LO = 22 μH
Figure 9-2 Conversion Efficiency (Log Scale)
VOUT = 12 V RON = 102 kΩ LO = 22 μH
Figure 9-4 Load and Line Regulation Performance
VIN = 48 V VOUT = 12 V IOUT = 0 A
Figure 9-6 No-Load Start-Up with EN/UVLO
VIN = 48 V VOUT 12 V Load = 0 A to Short
Figure 9-8 Short-Circuit Recovery
VIN = 48 V VOUT = 12 V IOUT = 2.5 A
Figure 9-10 Full-Load Switching
VIN = 48 VVOUT = 12 VIOUT = 3.5 A

(LM5013-Q1)

Figure 9-12 CISPR 25 Class 5 Conducted Emissions Plot, 150 kHz to 110 MHz
VOUT = 12 V RON = 102 kΩ LO = 22 μH
Figure 9-3 Conversion Efficiency (Linear Scale)
VIN = 48 V VOUT = 12 V IOUT = 1.0-A to 2.5-A

(Rise/fall time = 1A/uS)
Figure 9-5 Load Step Response

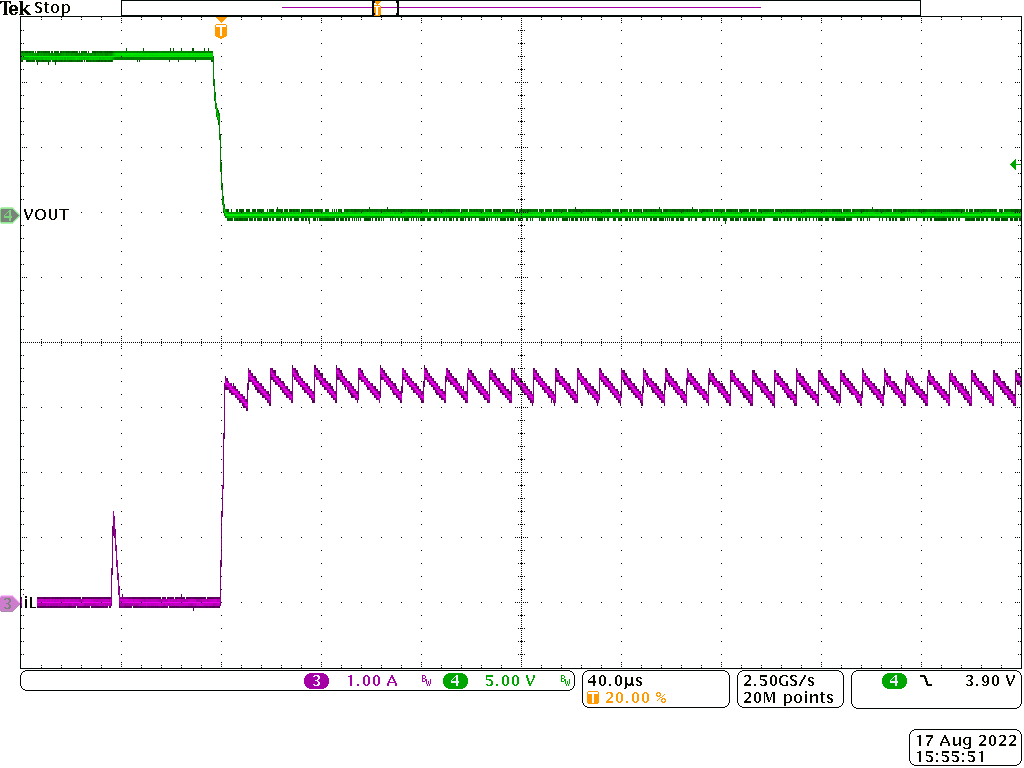

VIN = 48 V VOUT 12 V Load = 0 A to Short
Figure 9-7 Short Circuit Applied
VIN = 48 VVOUT 12 VIOUT = 200 mA
Figure 9-9 Light-Load Switching
Filter used for EMC scan. Additionally, the regulator was housed in an enclosed shield.
Figure 9-11 Suggested EMC Filter for CISPR 25 Class 5 Compliance
