AC Measurement Configurations

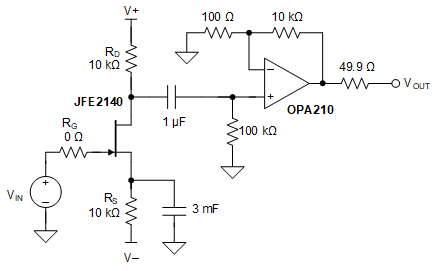

The circuit configuration used for noise measurements is seen in Figure 7-1. The nominal IDS current is configured in the schematic by calibrating V–. After IDS is fixed, the VDS voltage is set by calibrating V+. For input-referred noise data, the gain of the circuit is calibrated from VIN to VOUT and used for the input-referred gain calculation.

GUID-20210812-SS0I-SFV9-FR89-GPFJZH9PRVWX-low.gif Figure 7-1 AC Measurement Reference Schematic
