6.6 Typical Characteristics

at TA = 25°C, VS = 5 V, VIN+ = 12 V, and alert pullup resistor = 10 kΩ (unless otherwise noted)
INA381 D001_SBOS741.gif
VIN+ = 0 V

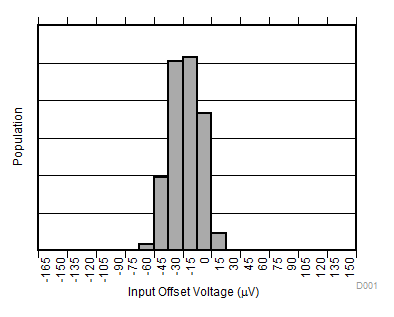

Figure 1. Input Offset Voltage Production Distribution (INA381A1)

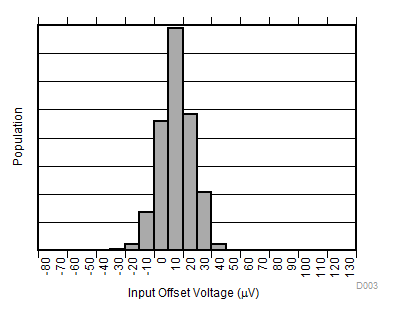

INA381 D003_SBOS741.gif
VIN+ = 0 V
Figure 3. Input Offset Voltage Production Distribution (INA381A3)
INA381 D005_SBOS741.gif
VIN+ = 0 V

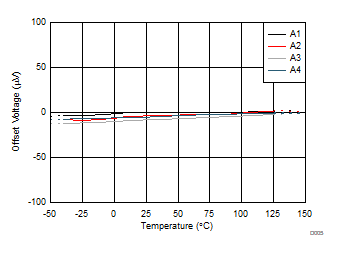

Figure 5. Offset Voltage vs Temperature

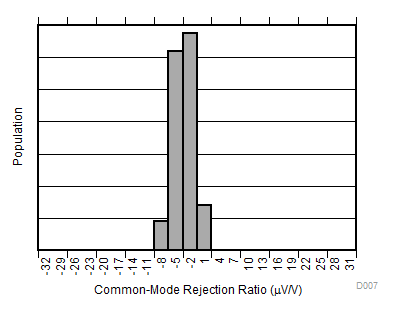

INA381 D007_SBOS741.gif
Figure 7. Common-Mode Rejection Production Distribution (INA381A2)

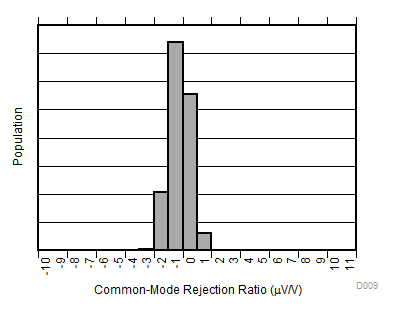

INA381 D009_SBOS741.gif
Figure 9. Common-Mode Rejection Production Distribution (INA381A4)
INA381 D011_SBOS741.gif

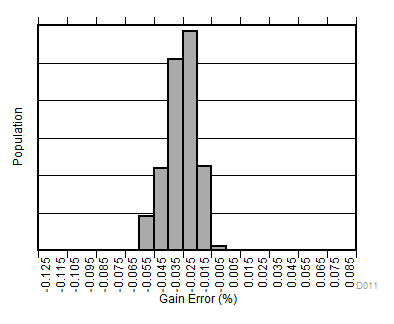

Figure 11. Gain Error Production Distribution (INA381A1)

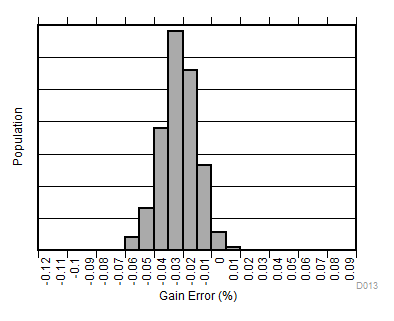

INA381 D013_SBOS741.gif
Figure 13. Gain Error Production Distribution (INA381A3)
INA381 D015_SBOS741.gif

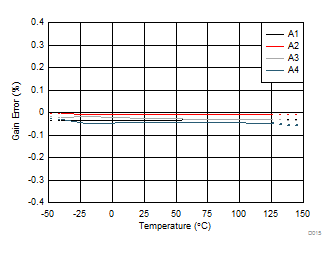

Figure 15. Gain Error vs Temperature
INA381 D017_SBOS741.gif

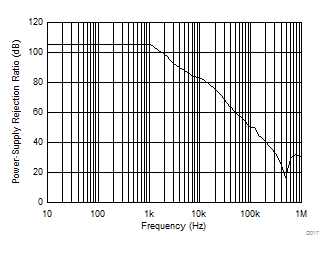

Figure 17. Power-Supply Rejection Ratio vs Frequency

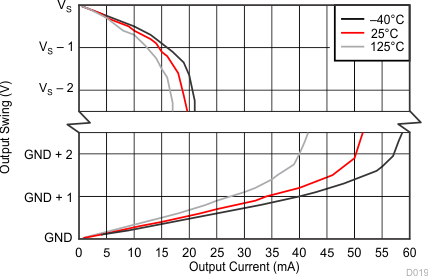

INA381 D019_SBOS793.gif
Figure 19. Output Voltage Swing vs Output Current
INA381 D021_SBOS741.gif
Supply voltage = 0 V

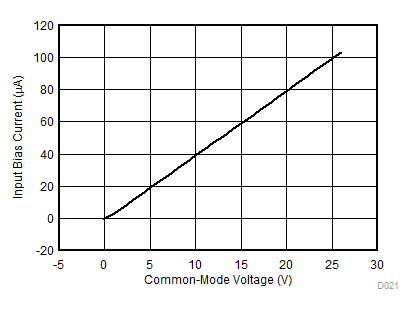

Figure 21. Input Bias Current vs Common-Mode Voltage (Both Inputs, Shutdown)
INA381 D023_SBOS848.gif

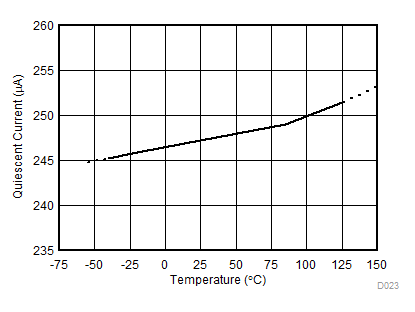

Figure 23. Quiescent Current vs Temperature
INA381 D024_SBOS741.gif

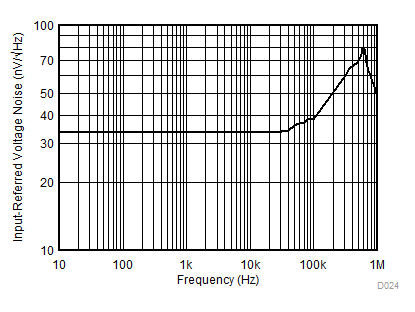

Figure 25. Input-Referred Voltage Noise vs Frequency
(INA381A3 Devices)
INA381 D026_SBOS741.gif
80-mVPP input step

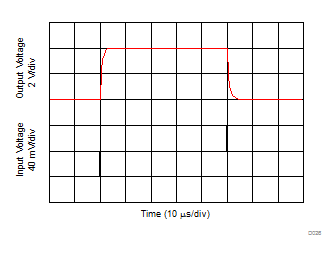

Figure 27. Step Response
INA381 D028_SBOS741.gif

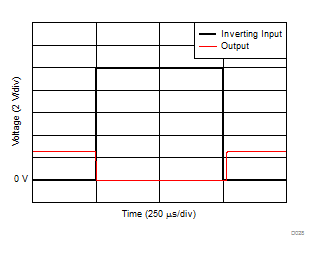

Figure 29. Inverting Differential Input Overload
INA381 D033_SBOS848.gif

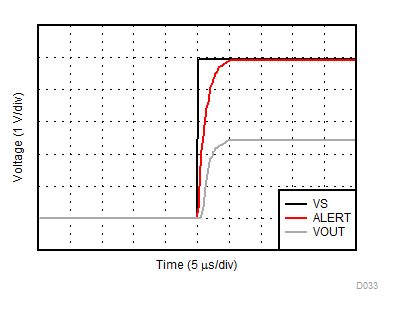

Figure 31. Start-Up Response

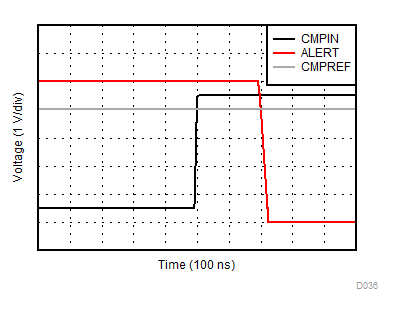

INA381 D036_SBOS848.gif
Figure 33. Comparator Propagation Delay

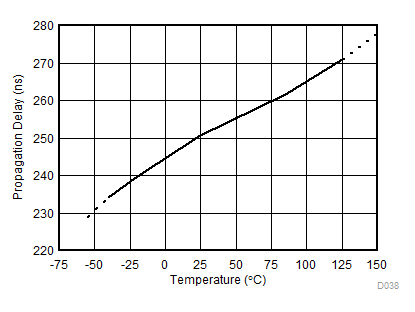

INA381 D038_SBOS848.gif

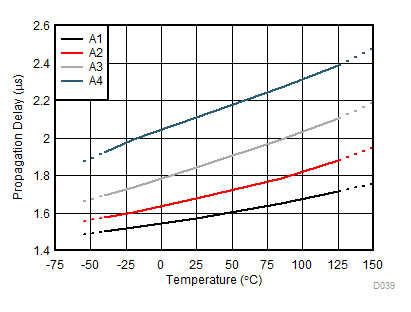

Figure 35. Comparator Propagation Delay vs Temperature
INA381 D040_SBOS848.gif

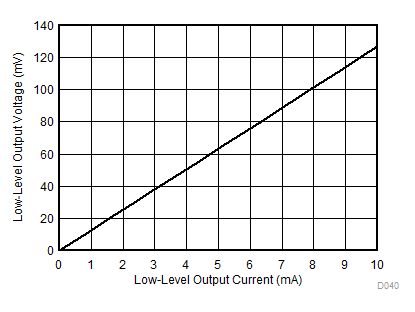

Figure 37. Low-Level Output Voltage vs Low-Level Output Current
INA381 D042_SBOS848.gif

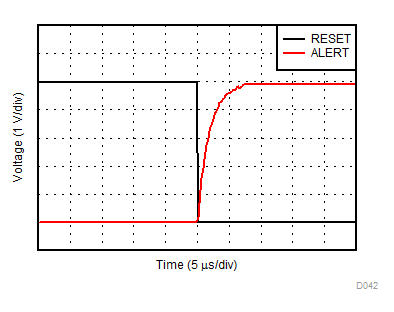

Figure 39. Reset and Alert Voltage Response

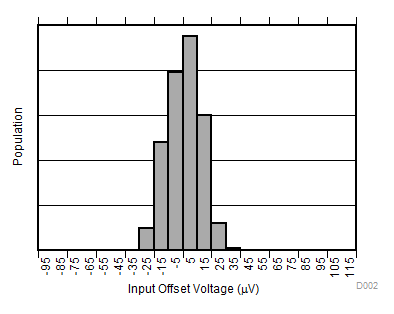

INA381 D002_SBOS741.gif
VIN+ = 0 V
Figure 2. Input Offset Voltage Production Distribution (INA381A2)

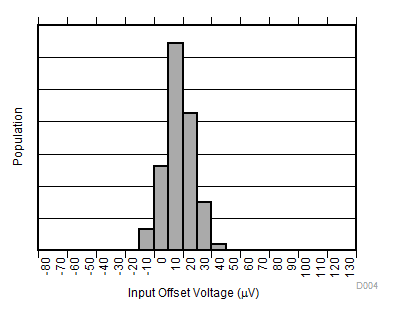

INA381 D004_SBOS741.gif
VIN+ = 0 V
Figure 4. Input Offset Voltage Production Distribution (INA381A4)

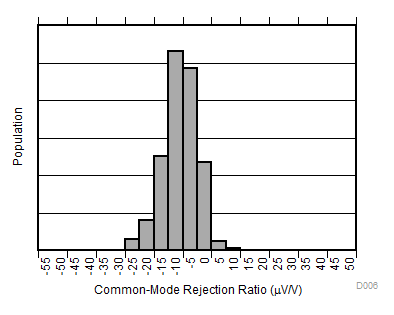

INA381 D006_SBOS741.gif
Figure 6. Common-Mode Rejection Production Distribution (INA381A1)
INA381 D008_SBOS741.gif

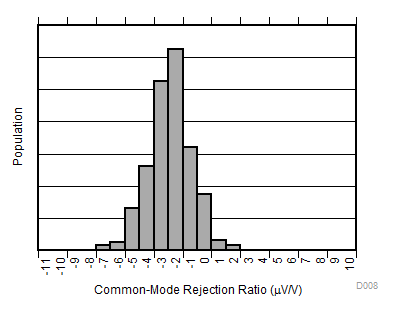

Figure 8. Common-Mode Rejection Production Distribution (INA381A3)
INA381 D010_SBOS741.gif

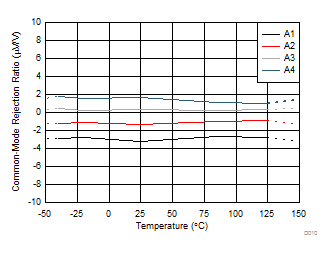

Figure 10. Common-Mode Rejection Ratio vs Temperature
INA381 D012_SBOS741.gif

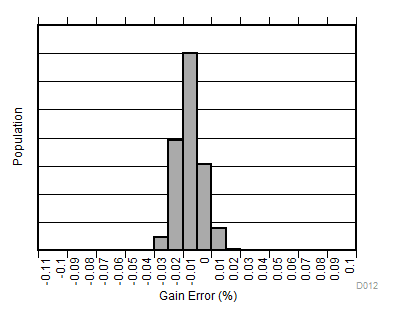

Figure 12. Gain Error Production Distribution (INA381A2)
INA381 D014_SBOS741.gif

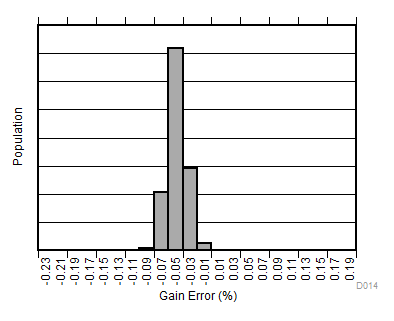

Figure 14. Gain Error Production Distribution (INA381A4)

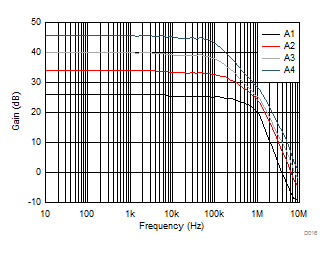

INA381 D016_SBOS741.gif
Figure 16. Gain vs Frequency
INA381 D018_SBOS741.gif

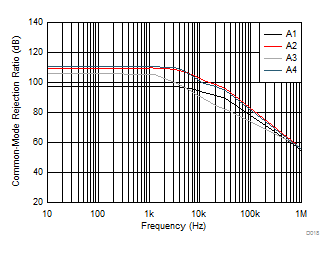

Figure 18. Common-Mode Rejection Ratio vs Frequency

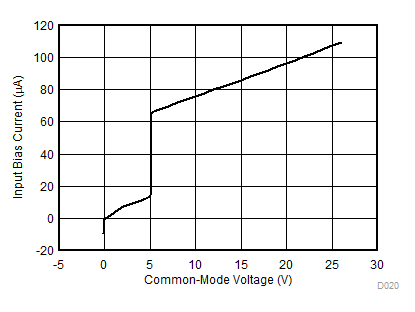

INA381 D020_SBOS741.gif
Supply voltage = 5 V
Figure 20. Input Bias Current vs Common-Mode Voltage
INA381 D022_SBOS741.gif

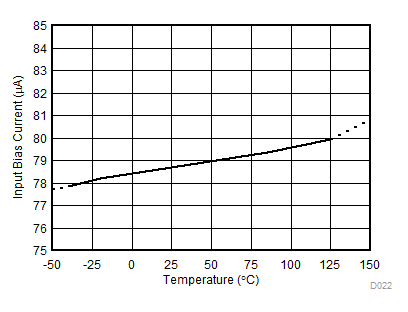

Figure 22. Input Bias Current vs Temperature

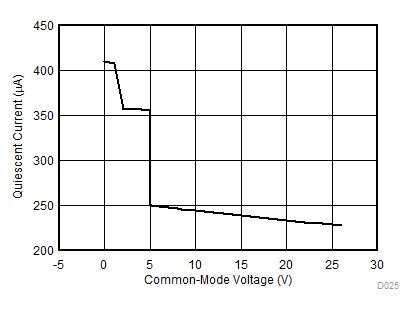

INA381 D025_SBOS848.gif
Figure 24. Quiescent Current vs Common-Mode Voltage
INA381 D025_SBOS741.gif

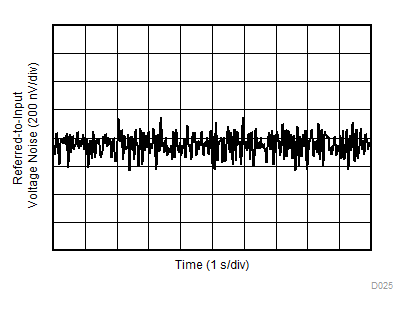

Figure 26. 0.1-Hz to 10-Hz Voltage Noise (Referred-to-Input)
INA381 D027_SBOS793.gif
Figure 28. Common-Mode Voltage Transient Response
INA381 D029_SBOS741.gif

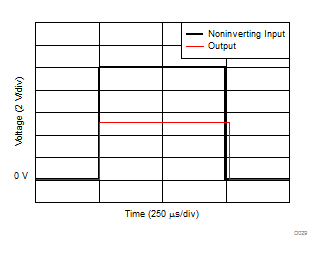

Figure 30. Noninverting Differential Input Overload
INA381 D032_SBOS741.gif

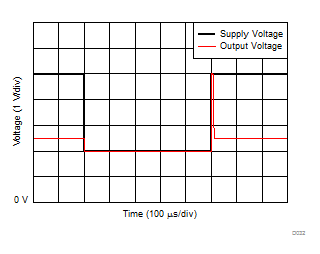

Figure 32. Brownout Recovery

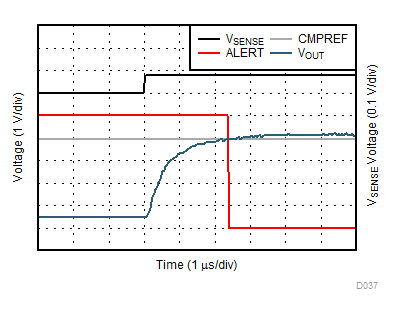

INA381 D037_SBOS848.gif
Figure 34. VSENSE Voltage Response
INA381 D039_SBOS848.gif
Figure 36. Total Propagation Delay vs Temperature

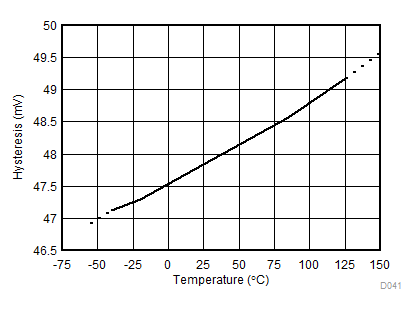

INA381 D041_SBOS848.gif
Figure 38. Hysteresis vs Temperature
