7.5.1.2 SPI Format

The SDI input-data word is 16 bits long and consists of the following format:

  • 1 read or write bit, W (bit 15)
  • 4 address bits, A (bits 14 through 11)
  • 3 don't care bits, X (10 through 8)
  • 8 data bits, D (7:0)

The SDO output-data word is 16 bits long and the first 8 bits are don’t care bits. The data word is the content of the register being accessed.

For a write command (W0 = 0), the response word on the SDO pin is the data currently in the register being written to.

For a read command (W0 = 1), the response word is the data currently in the register being read.

Table 11. SDI Input Data Word Format

R/W ADDRESS DON'T CARE DATA
B15 B14 B13 B12 B11 B10 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0
W0 A3 A2 A1 A0 X X X D7 D6 D5 D4 D3 D2 D1 D0

Table 12. SDO Output Data Word Format

DON'T CARE DATA
B15 B14 B13 B12 B11 B10 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0
X X X X X X X X D7 D6 D5 D4 D3 D2 D1 D0

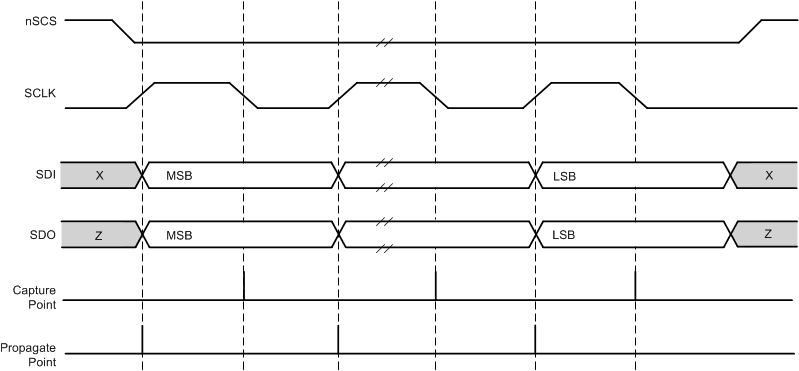

DRV8702D-Q1 DRV8703D-Q1 td_programming_SLVSDR9.gifFigure 46. SPI Transaction

The SCLK pin should be low at power-up of the device for reliable SPI transaction. If the SCLK pin cannot be guaranteed to be low at power-up, TI recommends performing a dummy SPI-read transaction (of any register) after power-up to ensure reliable subsequent transactions. Data read from this dummy read transaction should be discarded.
