Hardware Interface

Hardware interface devices convert the four SPI pins into four resistor-configurable inputs which are GAIN, SLEW, MODE, and OCP.

This conversion lets the application designer configure the most common device settings by tying the pin logic high or logic low, or with a simple pullup or pulldown resistor. This removes the requirement for an SPI bus from the external controller. General fault information can still be obtained through the nFAULT pin.

  • The GAIN pin configures the gain of the current sense amplifier.
  • The SLEW pin configures the slew rate of the output voltage.
  • The MODE pin configures the PWM control mode.
  • The OCP/SR pin is used to configures the OCP level and active demagnetization modes.

For more information on the hardware interface, see the Section 8.3.10 section.

GUID-ECD1A14D-0863-4F0D-87D4-0CD667B2DF67-low.gifFigure 8-6 DRV8316R SPI Interface

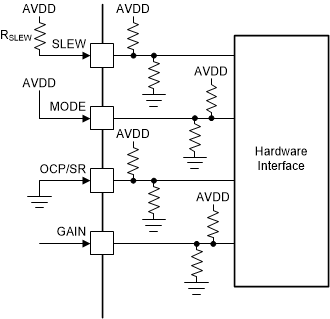

GUID-20200906-CA0I-K4T8-TDWS-T3VPD3N6DPMZ-low.gifFigure 8-7 DRV8316T Hardware Interface
