7.4.2 Open-Loop Acceleration

After the motor is confirmed to be stationary and after completing the motor initialization, the DRV10974 device begins to accelerate the motor. This acceleration is accomplished by applying a voltage to the motor at the appropriate drive state and increasing the rate of commutation without regard to the actual position of the motor (referred to as open-loop operation). The function of the open-loop operation is to drive the motor to a minimum speed so that the motor generates sufficient BEMF to allow the commutation control logic to drive the motor accurately.

The motor start-up profile can be configured using an external resistor to set the acceleration profile before transitioning to closed-loop operation. #T4509467-64 shows this acceleration profile. During closed-loop operation the RMP pin controls the closed-loop acceleration and deceleration. Table 7-2 lists the selectable acceleration parameters.

Table 7-2 Acceleration Profile Settings
RMP SELECTIONRRMP [kΩ]#SLVSDN21010Accel2 [Hz/s2]Accel1 [Hz/s]CLOSED-LOOP-ACCELERATION TRANSITION TIME [s]#SLVSDN21001CLOSED-LOOP-DECELERATION TRANSITION TIME [s]#SLVSDN21009
07.320.224.62.744
110.71.659.22.722
214.31.6515122
317.83.325111
422.17250.244
5287350.222
63414500.222
741.227750.211
849.927755.411
9591450822
1071.57351122
1186.67252244
121053.3255.411
131241.6515822
141501.659.21122
151820.224.62244
(1) All resistors are ±1%
(2) Time to transition from 0 to 100% duty cycle.
(3) Time to transition from 100% to 0% duty cycle.

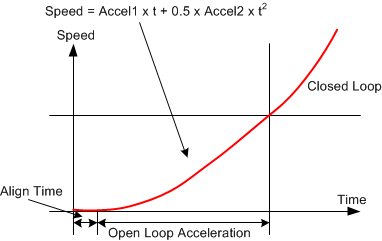

GUID-CB16E8B2-326B-47A0-9F47-020AE66CB883-low.gifFigure 7-14 Start-Up Profile
