8.2.1.1 Recommended MOSC Crystal Oscillator Configuration

Table 8-1 Crystal Port Characteristics
PARAMETERNOMINALUNIT
MOSC TO GROUND Capacitance1.5pF
MOSCZ TO GROUND Capacitance1.5pF
Table 8-2 Recommended Crystal Configuration
PARAMETERRECOMMENDEDUNIT
Crystal circuit configurationParallel resonant
Crystal typeFundamental (1st harmonic)
Crystal nominal frequency20MHz
Crystal frequency temperature stability+/– 30PPM
Overall crystal frequency tolerance (including accuracy, stability, aging, and trim sensitivity)+/– 100PPM
Crystal Equivalent Series Resistor (ESR)50 maxΩ
Crystal load20pF
Crystal shunt load7 maxpF
RS drive resistor (nominal)100Ω
RFB feedback resistor (nominal)1MΩ
CL1 external crystal load capacitor (MOSC)See (1).pF
CL2 external crystal load capacitor (MOSCN)See (1).pF
PCB layoutA ground isolation ring around the crystal is recommended.
(1) Typical drive level with the XSA020000FK1H-OCX Crystal (ESRmax = 40 Ω) = 50 µW.

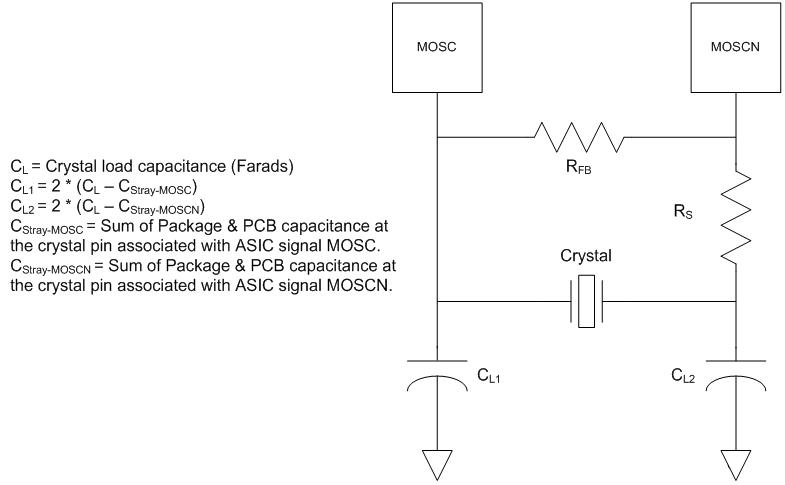

GUID-1C9AF34E-C43A-4DC1-95DD-0CE0AAA02CE4-low.jpgFigure 8-3 Recommended Crystal Oscillator Configuration

Typically, the external crystal oscillator stabilizes within 50 ms after stable power is applied.
