6.14 BT656 Interface General Timing Requirements

The DLPC34xx controller input interface supports the industry standard BT.656 parallel video interface. See the appropriate ITU-R BT.656 specification for detailed interface timing requirements. (2)
MINMAXUNIT
ƒcllPCLK frequency1.033.5MHz
tp_clkperPCLK period50% reference points29.851000ns
tp_clkjitPCLK jitterMax fclockSee (1)
tp_whPCLK pulse duration high50% reference points10.0ns
tp_wlPCLK pulse duration low50% reference points10.0ns
tp_suSetup time – PDATA(7:0) before the active edge of PCLK50% reference points3.0ns
tp_hHold time – PDATA(7:0) after the active edge of PCLK50% reference points0.9ns
ttTransition time – all signals20% to 80% reference points (rising signal)
80% to 20% reference points (falling signal)		0.23.0ns
(1) Calculate clock jitter (in ns) using this formula: Jitter = [1 / ƒclock – 5.76 ns]. Clock jitter must maintain setup and hold times. BT.656 data bits must be mapped to the DLPC34xx PDATA bus as shown in Figure 6-9 shows BT.656 bus mode YCbCr 4:2:2 source PDATA (23:0) mapping.
(2) The BT.656 interface accepts 8-bits per color, 4:2:2 YCbCr data encoded per the industry standard through PDATA(7:0) on the active edge of PCLK. See Figure 6-9.

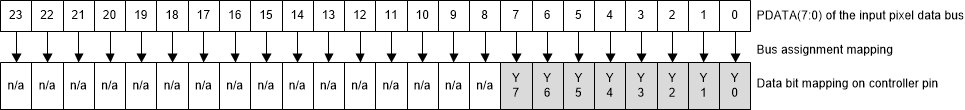

GUID-A4485EA3-5F1B-4CF7-A576-C68FF5296B1F-low.gifFigure 6-9 BT.656 Interface Mode Bit Mapping
