6.6 Timing Requirements

All timing conditions guaranteed by design
PARAMETER MIN NOM MAX UNIT
tc SCLK Cycle Time 80 ns
tw1 SCLK High Time 32 ns
tw2 SCLK Low Time 32 ns
tsu /CS to SCLK Falling Edge Setup Time 32 ns
tsu1 Data Setup Time 5 ns
th1 Data Hold Time 5 ns
td1 SCLK Falling Edge to /CS Rising Edge 32 ns
tw3 Minimum /CS High Time (1) 1 us
tv SCLK Rising Edge to SDO Valid 32 ns
trst Reset low time 100 ns
HART Mode Timing
tcstart Carrier start time. Time from RTS falling edge to transmit carrier reaching its first peak. 5 Bit-Times
tcstop Carrier stop time. Time from RTS rising edge to transmit carrier amplitude falling below the receive amplitude 3 Bit-Times
tcdecay Carrier decay time. Time from RTS riding edge to carrier amplitude dropping to zero. 6 Bit-Times
tcdeton Carrier detect on. Time from valid carrier on receive path to CD rising edge. 6 Bit-Times
tcdetoff1 Carrier detect off. Time from valid carrier removed on receive path to CD falling edge. 3 ms
tcdetoff2 Carrier detect on when transitioning from transmit mode to receive mode in the presence of a constant valid receive carrier. 2.1 ms
tcos1 Crystal oscillator power-up time from enabling the oscillator via clock configuration pins with 16pF load capacitors. 25 ms
tcos2 Crystal oscillator power-up time from enabling the oscillator via clock configuration pins with 36pF load capacitors. 25 ms
tref Reference power-up time from enabling via hardware pin. 10 ms
tpow Transition time from power-down mode to normal operating mode with external clock and external reference. 30 µs
(1) Time between two consecutive CS rising edges must be ≥3.06 µs

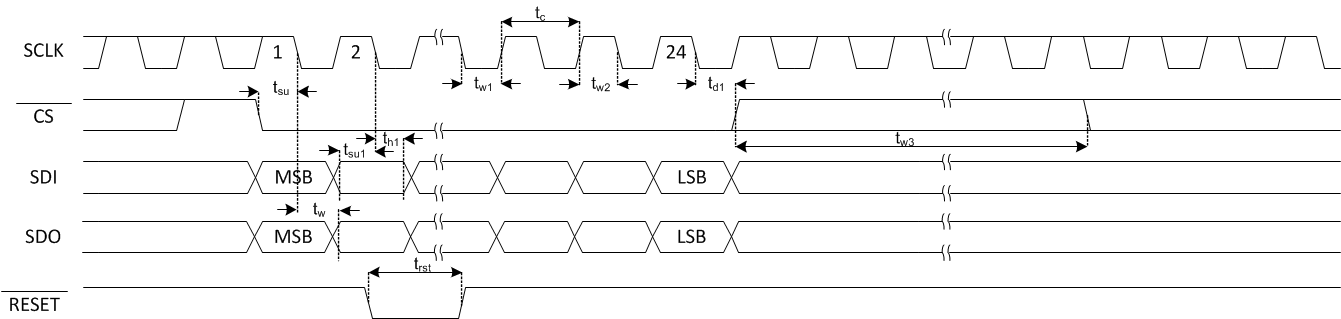

DAC8742H SBAS856_SPITiming.gifFigure 1. SPI Timing Diagram
