7.4.5 Single-Ended Configuration

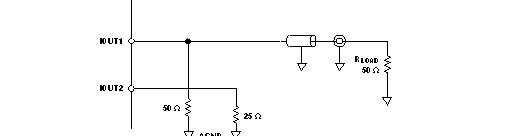

Figure 22 shows the single-ended output configuration, where the output current IOUT1 flows into an equivalent load resistance of 25 Ω. Node IOUT2 must be connected to AGND or terminated with a resistor of 25 Ω to AGND. The nominal resistor load of 25 Ω gives a differential output swing of 1 VPP when applying a 20-mA full-scale output current.

DAC5672A DriveSingle_LAS440.gifFigure 22. Driving a Doubly-Terminated 50-Ω Cable Using a Single-Ended Output
