6.8 Timing Requirements

with nominal supplies and IOUTFS = 20 mA (unless otherwise noted)
MIN TYP(2) MAX UNIT
ANALOG OUTPUT
ts(DAC) Output settling time to 0.1% Transition:
Code 0x0000 to 0x3FFF		 11 ns
tPD Output propagation delay Does not include digital latency 2 ns
tr(IOUT) Output rise time 10% to 90% 200 ps
tf(IOUT) Output fall time 90% to 10% 200 ps
SERIAL PORT TIMING
ts(SENDB) Setup time, SDENB to rising edge of SCLK 20 ns
ts(SDIO) Setup time, SDIO to rising edge of SCLK 10 ns
th(SDIO) Hold time, SDIO from rising edge of SCLK 5 ns
t(SCLK) Period of SCLK 100 ns
t(SCLKH) High time of SCLK 40 ns
t(SCLKL) Low time of SCLK 40 ns
td(DATA) Data output delay after falling edge of SCLK 10 ns
TRESET Minimum RESTB pulse width 25 ns
LVDS INPUT TIMING
ts(DATA) Setup time(1) D[x:0] valid to DATACLK rising for full word interface mode;
space
DA[x:0] valid to DA_CLK rising or falling for 7-bit mode		 datadly clkdly
0 0 –20 ps
0 1 –120 ps
0 2 –220 ps
0 3 –310 ps
0 4 –390 ps
0 5 –480 ps
0 6 –560 ps
0 7 –630 ps
1 0 70 ps
2 0 150 ps
3 0 230 ps
4 0 330 ps
5 0 430 ps
6 0 530 ps
7 0 620 ps
th(DATA) Hold time(1) D[x:0] valid to DATACLK rising for full word interface mode;
space
DA[x:0] valid to DA_CLK rising or falling for 7-bit bus mode		 datadly clkdly
0 0 310 ps
0 1 390 ps
0 2 480 ps
0 3 560 ps
0 4 650 ps
0 5 740 ps
0 6 850 ps
0 7 930 ps
1 0 200 ps
2 0 100 ps
3 0 20 ps
4 0 –60 ps
5 0 –140 ps
6 0 –220 ps
7 0 –290 ps
(1) Test conditions in config3 setting.
(2) Typical values at 25°C.
DAC3151 DAC3161 DAC3171 tim_51_in_data_las959.gifFigure 1. DAC3151 Input Data Timing Diagram
DAC3151 DAC3161 DAC3171 tim_61_in_data_las959.gifFigure 2. DAC3161 Input Data Timing Diagram

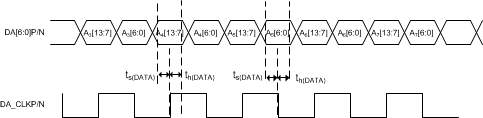

DAC3151 DAC3161 DAC3171 tim_71_7bit_las959.gifFigure 3. DAC3171 Input Data Timing Diagram for 7-Bit Interface Mode

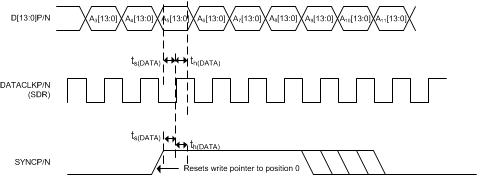

DAC3151 DAC3161 DAC3171 tim_71_14bit_las959.gifFigure 4. DAC3171 Input Data Timing for 14-Bit Interface Mode
