5.3 Typical MOSFET Characteristics

TA = 25°C unless otherwise stated
CSD87501L D001_SLPS523_r2.png
Figure 1. Transient Thermal Impedance
CSD87501L D002_SLPS523.gif
Figure 2. Saturation Characteristics
CSD87501L D003_SLPS523.gif
VS1S2 = 15 V

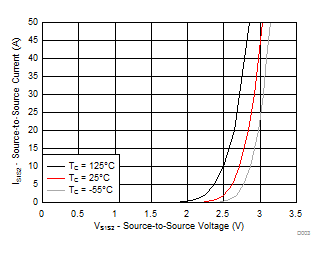

Figure 3. Transfer Characteristics
CSD87501L D004_SLPS523.gif
IS = 7 A VS1S2 = 15 V

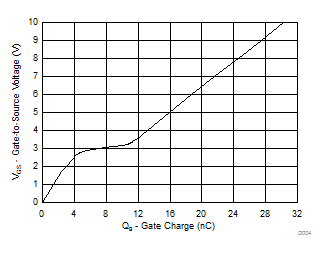

Figure 4. Gate Charge
CSD87501L D006_SLPS523.gif
IS = 250 µA

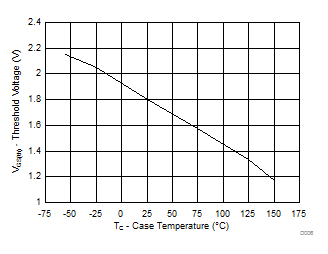

Figure 6. Threshold Voltage vs Temperature
CSD87501L D008_SLPS523.gif
IS = 7 A

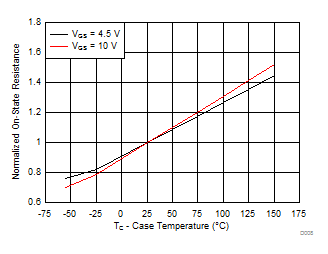

Figure 8. Normalized On-State Resistance vs Temperature
CSD87501L D010_SLPS523.gif

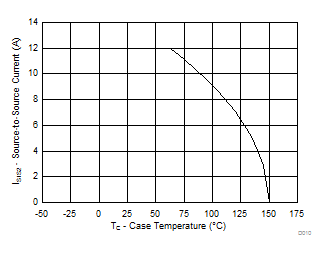

Figure 10. Maximum Source Current vs Temperature
CSD87501L D005_SLPS523_r2.gif

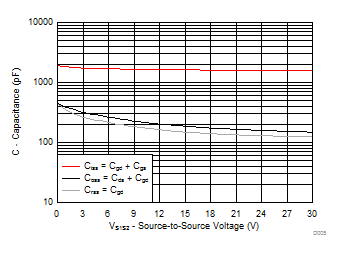

Figure 5. Capacitance
CSD87501L D007_SLPS523.gif

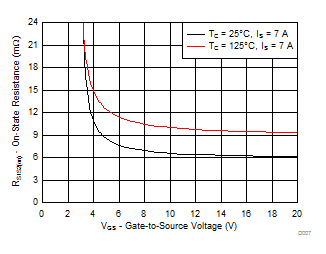

Figure 7. On-State Source-to-Source Resistance vs
Gate-to-Source Voltage
CSD87501L D009_SLPS523_r4.gif
Single pulse, max RθJA = 135°C/W
Figure 9. Maximum Safe Operating Area
