Typical MOSFET Characteristics

TA = 25°C (unless otherwise stated)

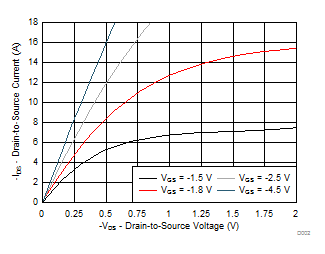

GUID-6C9AB314-5369-46B4-92BE-A3F32C0339AF-low.gifFigure 5-1 Saturation Characteristics

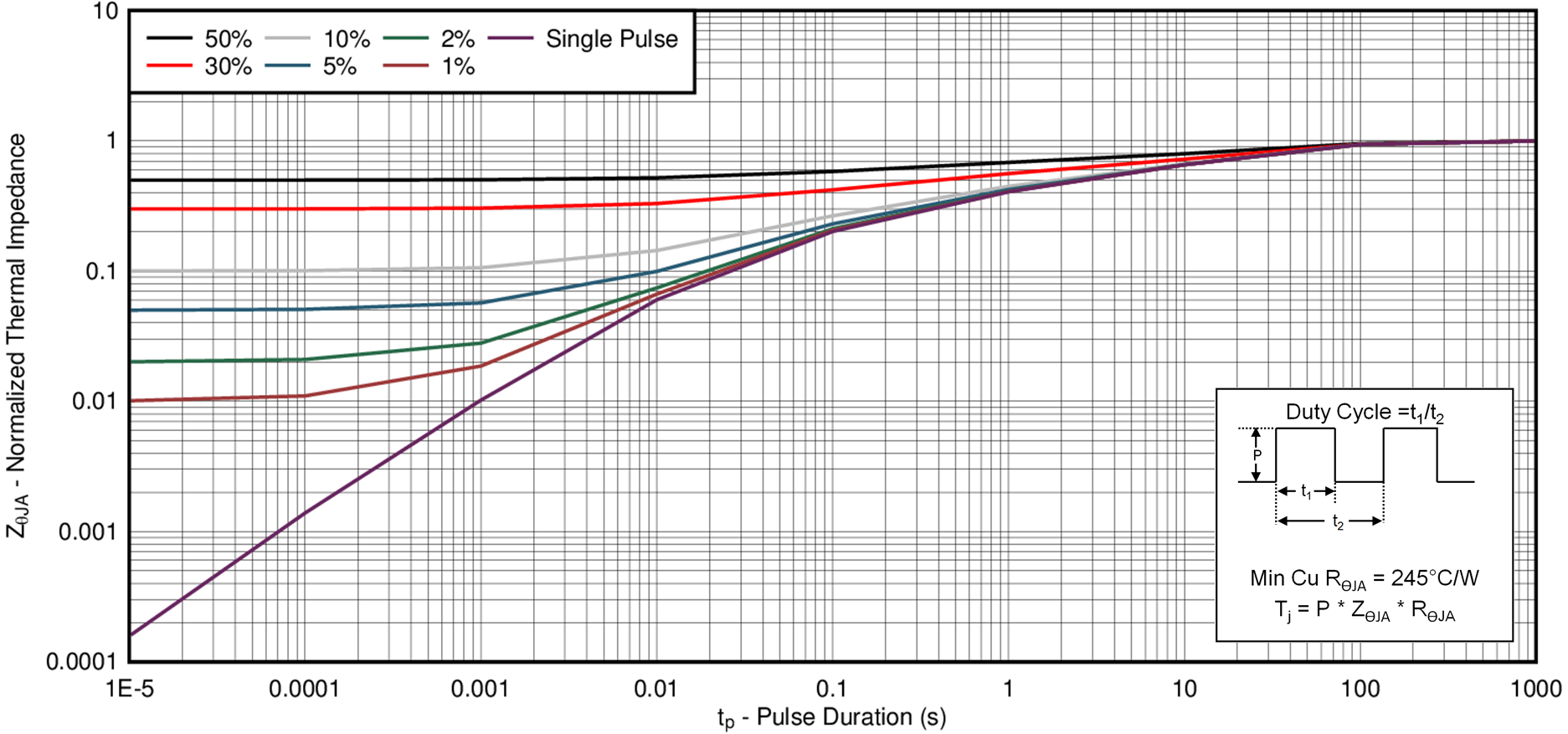

GUID-CC1F0301-BA25-4F70-881E-747EED1E86BA-low.pngFigure 5-3 Transient Thermal Impedance
VDS = –5 V

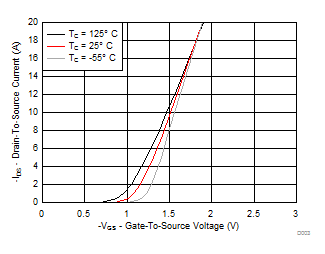

Figure 5-2 Transfer Characteristics
ID = –1 AVDS = –6 V

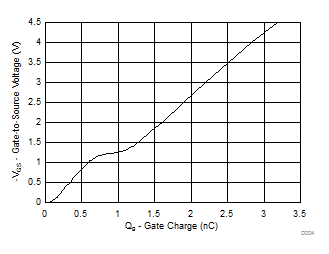

Figure 5-4 Gate Charge
ID = –250 µA

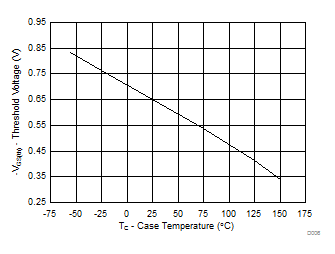

Figure 5-6 Threshold Voltage vs Temperature
ID = –1 A

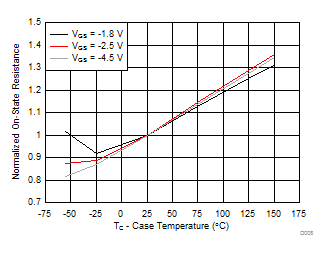

Figure 5-8 Normalized On-State Resistance vs Temperature
Single pulse, typ RθJA = 245°C/W

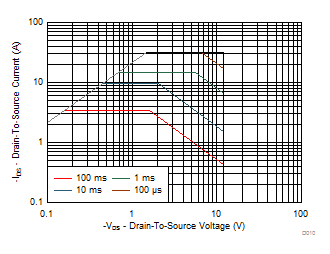

Figure 5-10 Maximum Safe Operating Area (SOA)

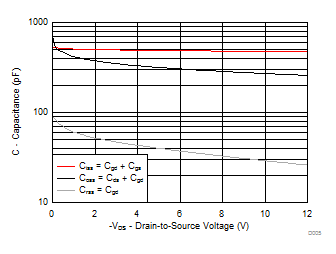

GUID-B4F05593-7026-4A8C-8F76-4001DBA19EDB-low.gifFigure 5-5 Capacitance

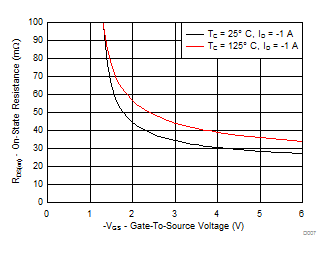

GUID-C09BCE8F-8BAB-4624-9F61-072C8100FAA2-low.gifFigure 5-7 On-State Resistance vs Gate-to-Source Voltage
GUID-D397CFA6-A0A9-40D5-B561-4414D05DC93C-low.gifFigure 5-9 Typical Diode Forward Voltage
Min Cu RθJA = 245°C/W
Figure 5-11 Maximum Drain Current vs Temperature
