Typical MOSFET Characteristics

TA = 25°C unless otherwise stated
CSD17308Q3 D001_SLPS262.png
Figure 1. Transient Thermal Impedance
CSD17308Q3 D002_SLPS262.gif
Figure 2. Saturation Characteristics
CSD17308Q3 D003_SLPS262.gif
VDS = 5 V
Figure 3. Transfer Characteristics
CSD17308Q3 D004_SLPS262.gif
ID = 10 A VDS = 15 V
Figure 4. Gate Charge
CSD17308Q3 D006_SLPS262.gif
ID = 250 µA
Figure 6. Threshold Voltage vs Temperature
CSD17308Q3 D008_SLPS262.gif
ID = 10 A VGS = 8 V

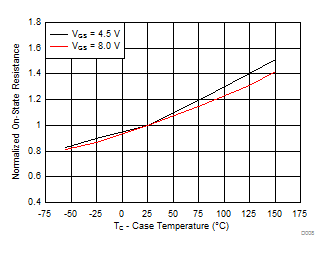

Figure 8. Normalized On-State Resistance vs Temperature
CSD17308Q3 D010_SLPS262.gif
Single pulse, max RθJC = 4.5°C/W
Figure 10. Maximum Safe Operating Area
CSD17308Q3 D012_SLPS262.gif
Figure 12. Maximum Drain Current vs Temperature
CSD17308Q3 D005_SLPS262.gif
Figure 5. Capacitance
CSD17308Q3 D007_SLPS262.gif
ID = 10 A
Figure 7. On-State Resistance vs Gate-to-Source Voltage
CSD17308Q3 D009_SLPS262.gif
Figure 9. Typical Diode Forward Voltage
CSD17308Q3 D011_SLPS262.gif
Figure 11. Single Pulse Unclamped Inductive Switching
