Typical MOSFET Characteristics

TA = 25°C (unless otherwise stated)

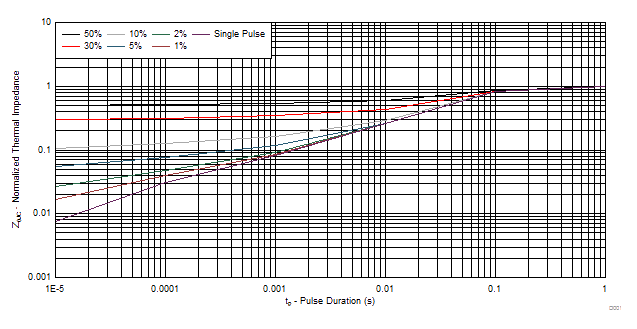

GUID-C7386B24-CD18-4A78-A964-613427DF7639-low.gifFigure 4-1 Transient Thermal Impedance
Figure 4-2 Saturation Characteristics
VDS = 12.5 V ID = 25 A
Figure 4-4 Gate Charge
ID = 250 µA
Figure 4-6 Threshold Voltage vs Temperature
ID = 25 A VGS = 8 V

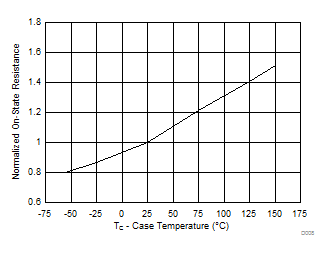

Figure 4-8 On Resistance vs Temperature
Single pulse, max RθJC = 1.1°C/W
Figure 4-10 Maximum Safe Operating Area

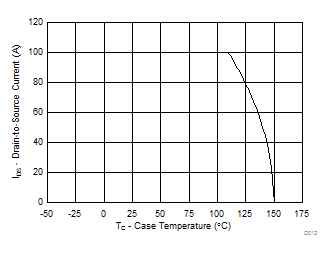

Figure 4-12 Maximum Drain Current vs Temperature
VDS = 5 V
Figure 4-3 Transfer Characteristics
Figure 4-5 Capacitance
Figure 4-7 On Resistance vs Gate Voltage

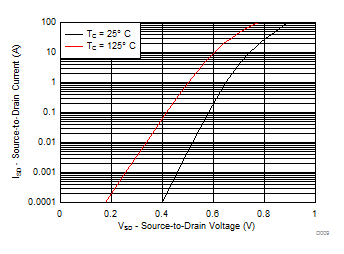

Figure 4-9 Typical Diode Forward Voltage
Figure 4-11 Single Pulse Unclamped Inductive Switching
