6.4 Pin Diagram—RSK Package (Top View)

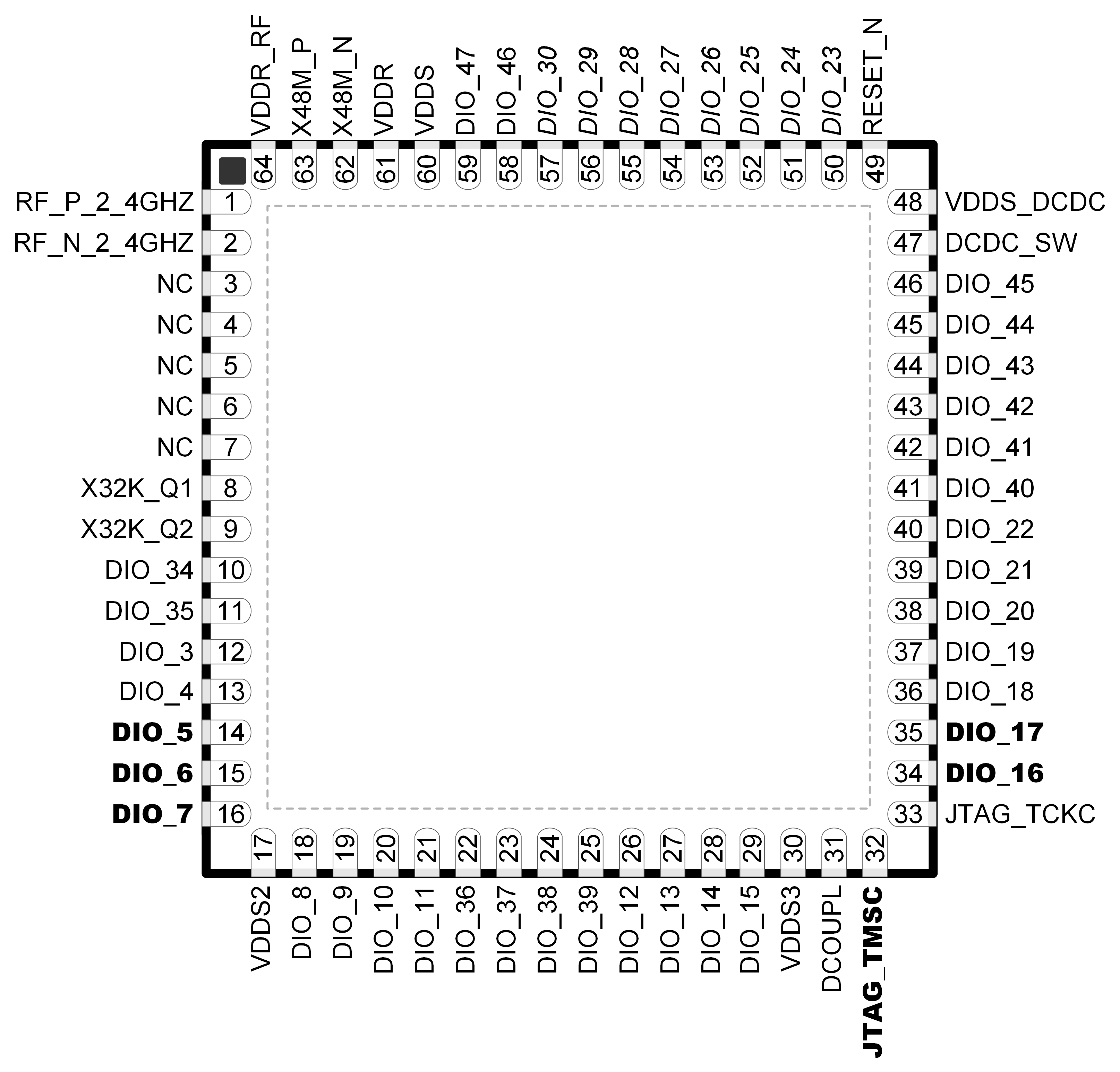

CC2674R10 RSK (8mm × 8mm) Pinout, 0.4mm Pitch (Top View) Figure 6-2 RSK (8mm × 8mm) Pinout, 0.4mm Pitch (Top View)

The following I/O pins marked in Figure 6-2 in bold have high-drive capabilities:

  • Pin 14, DIO_5
  • Pin 15, DIO_6
  • Pin 16, DIO_7
  • Pin 32, JTAG_TMSC
  • Pin 34, DIO_16
  • Pin 35, DIO_17

The following I/O pins marked in Figure 6-2 in italics have analog capabilities:

  • Pin 50, DIO_23
  • Pin 51, DIO_24
  • Pin 52, DIO_25
  • Pin 53, DIO_26
  • Pin 54, DIO_27
  • Pin 55, DIO_28
  • Pin 56, DIO_29
  • Pin 57, DIO_30
