7.20.5 TX Performance

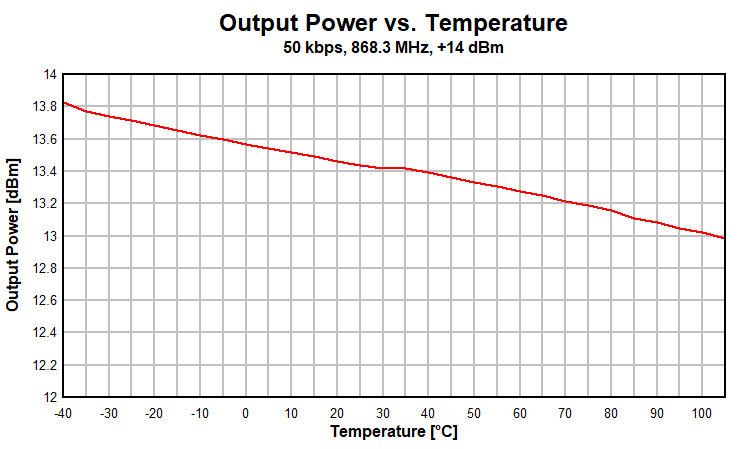

Figure 7-35 Output Power vs. Temperature (50 kbps, 868.3 MHz)

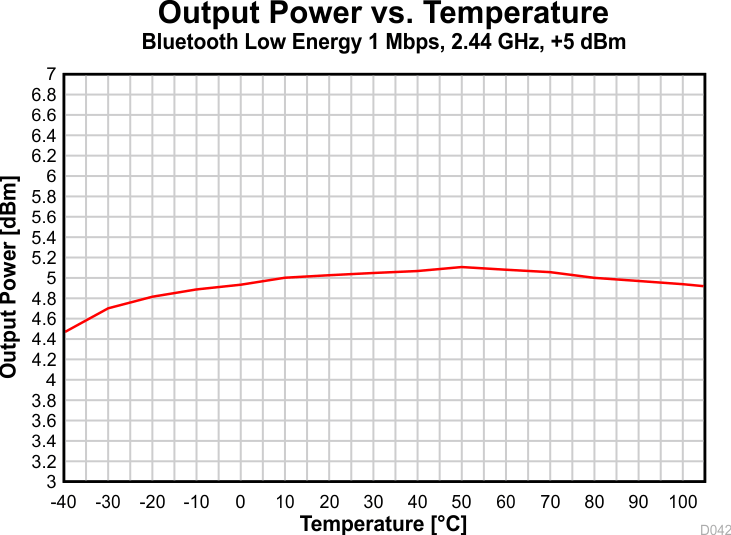

Figure 7-37 Output Power vs. Temperature (Bluetooth Low Energy 1 Mbps, 2.44 GHz)
Figure 7-39 Output Power vs. Temperature (Bluetooth Low Energy 1 Mbps, 2.44 GHz, +20 dBm
PA)

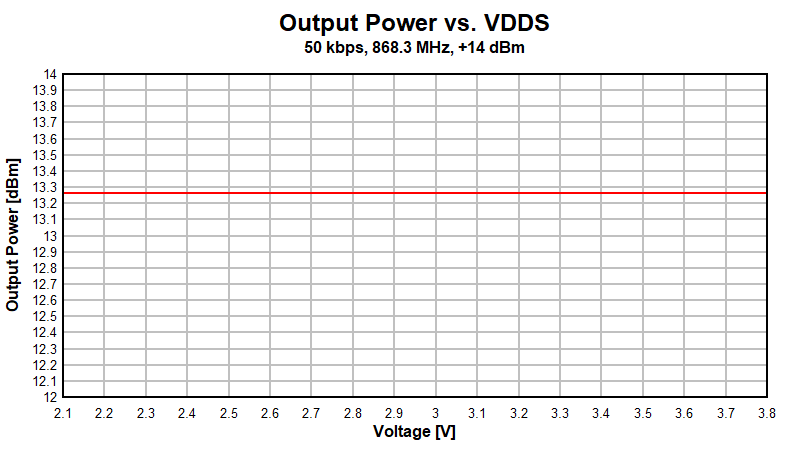

Figure 7-41 Output Power vs. Supply Voltage (VDDS) (50 kbps, 868.3
MHz)

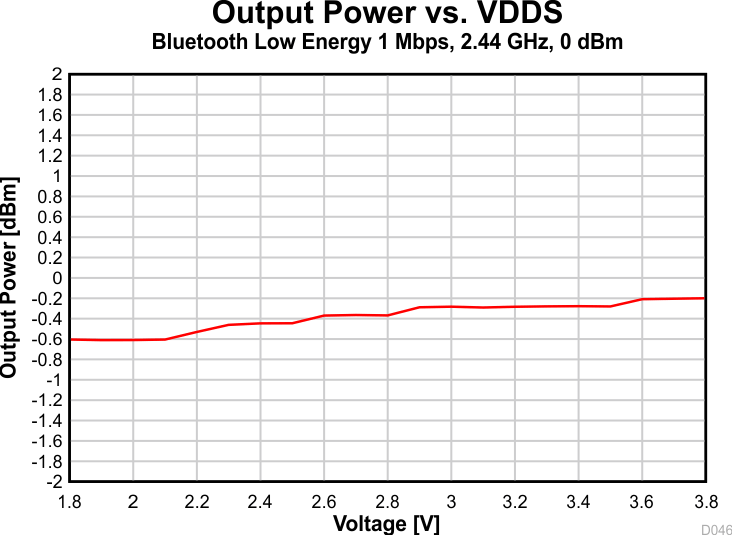

Figure 7-43 Output Power vs. Supply Voltage (VDDS) (Bluetooth Low Energy 1 Mbps, 2.44
GHz)

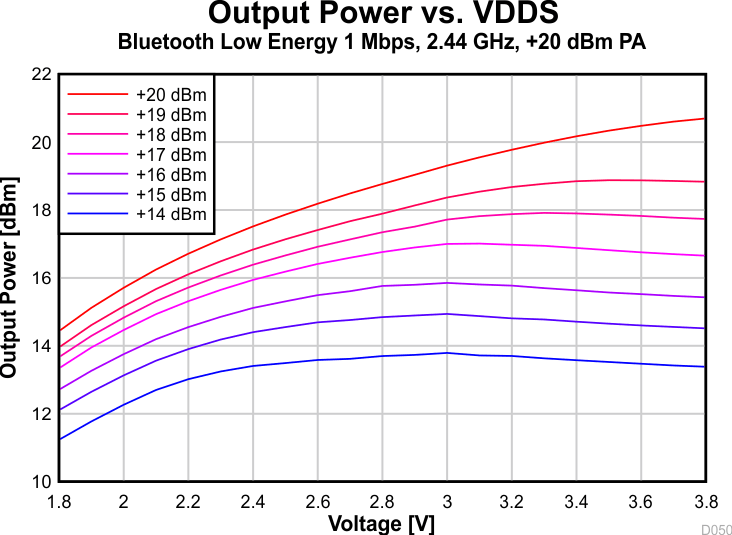

Figure 7-45 Output Power vs. Supply Voltage (VDDS) (Bluetooth Low Energy 1 Mbps, 2.44 GHz, +20
dBm PA)

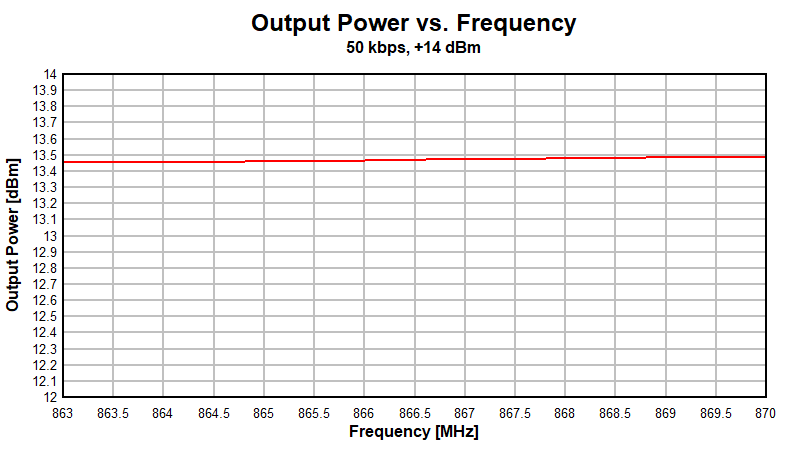

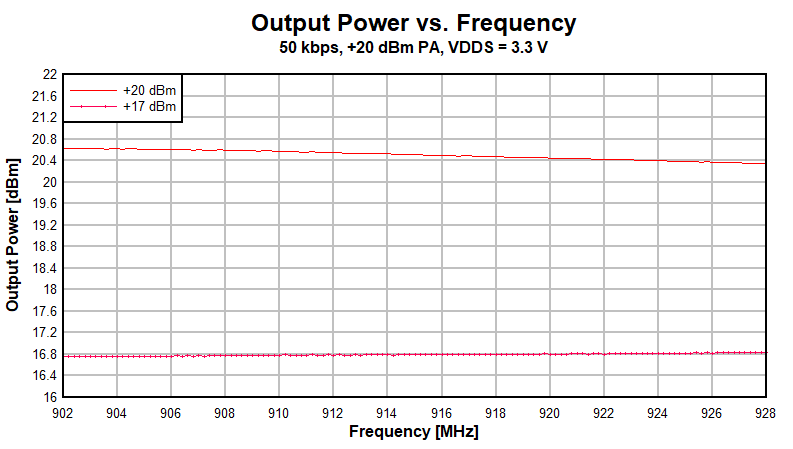

Figure 7-47 Output Power vs. Frequency (50 kbps, 868 MHz)
Figure 7-49 Output Power vs. Frequency (50 kbps, 915 MHz, VDDS = 3.3
V)

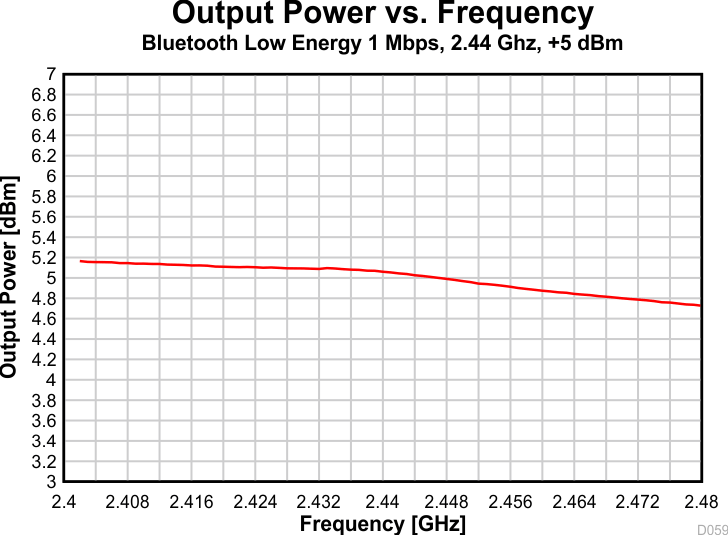

Figure 7-51 Output Power vs. Frequency (Bluetooth Low Energy 1 Mbps, 2.44 GHz, +5 dBm)

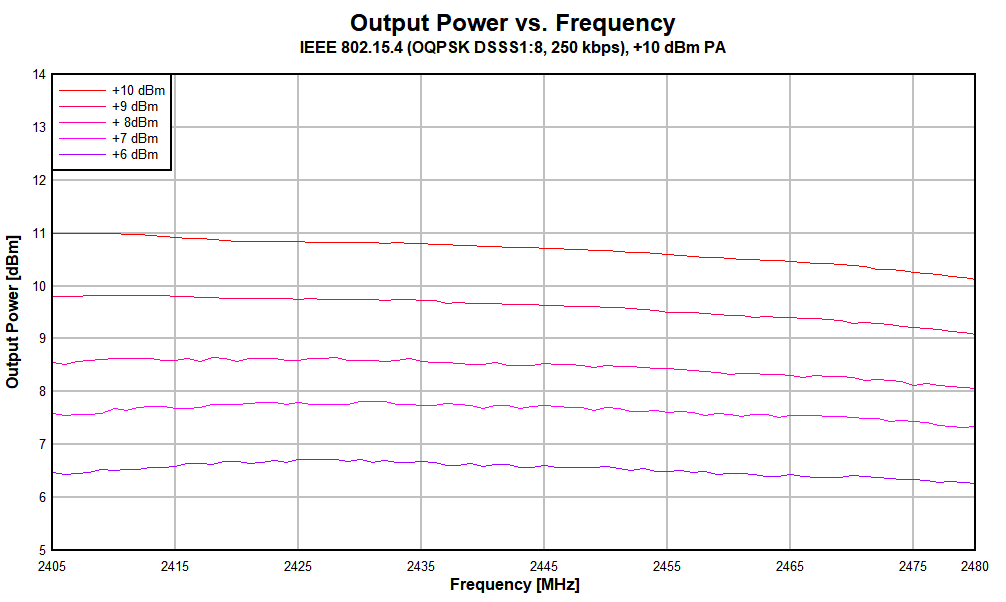

Figure 7-53 Output Power vs. Frequency (250 kbps, +10 dBm PA)

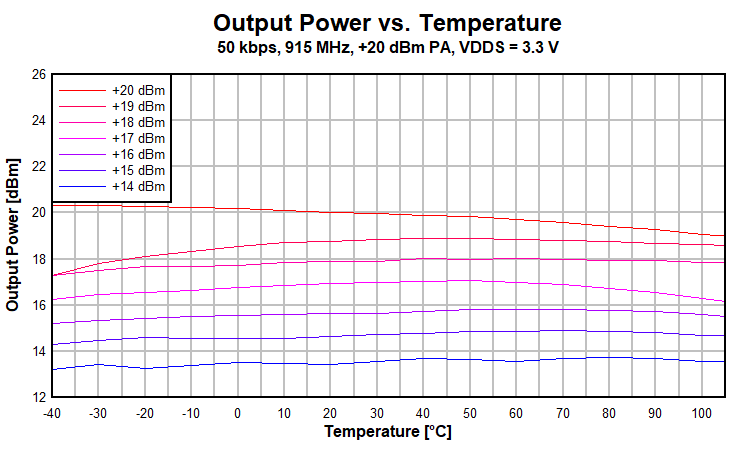

Figure 7-36 Output Power vs. Temperature (50 kbps, 915 MHz)
Figure 7-38 Output Power vs. Temperature (Bluetooth Low Energy 1 Mbps, 2.44 GHz, +5
dBm)Figure 7-40 Output Power vs. Temperature (2.44 GHz, +10 dBm PA)

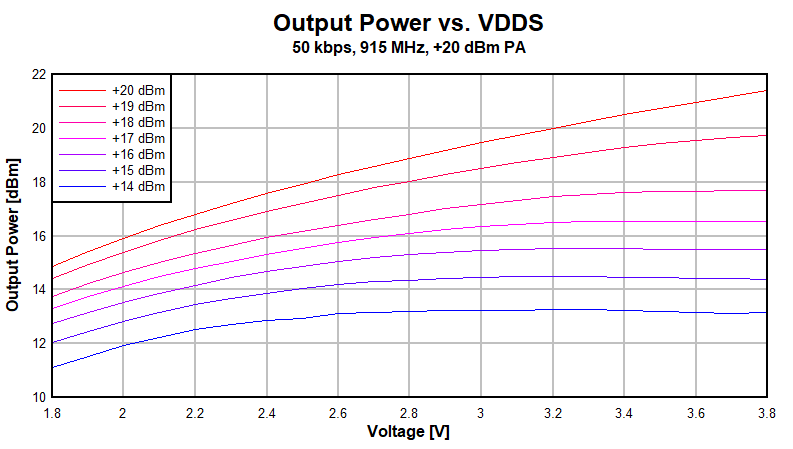

Figure 7-42 Output Power vs. Supply Voltage (VDDS) (50 kbps, 915 MHz)

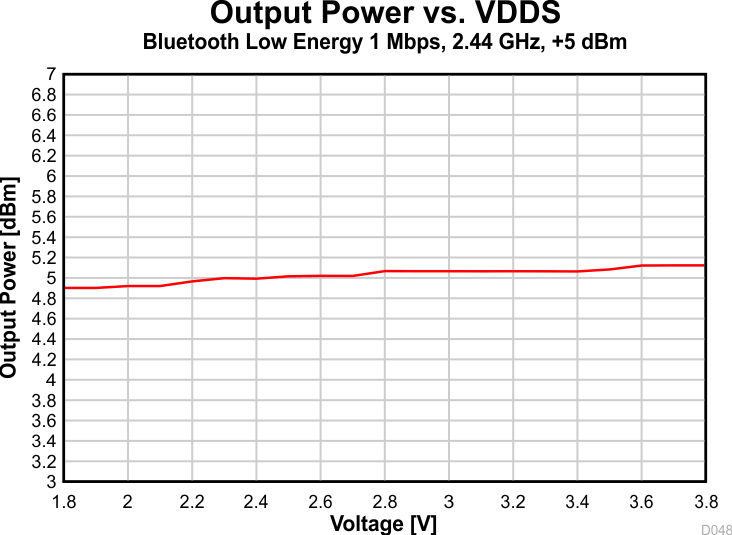

Figure 7-44 Output Power vs. Supply Voltage (VDDS) (Bluetooth Low Energy 1 Mbps, 2.44 GHz, +5
dBm)Figure 7-46 Output Power vs. Supply Voltage (VDDS) (2.44 GHz, +10 dBm PA)

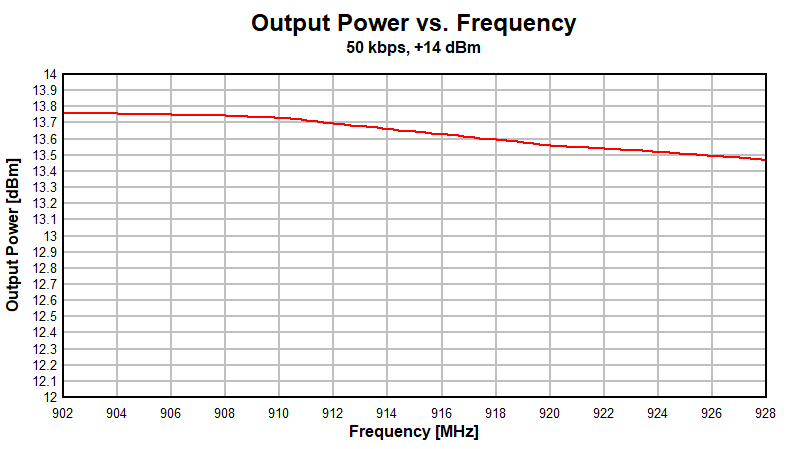

Figure 7-48 Output Power vs. Frequency (50 kbps, 915 MHz)

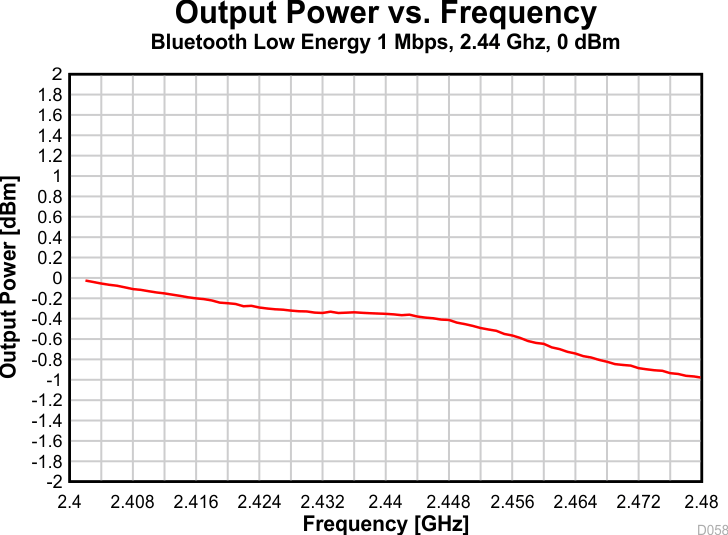

Figure 7-50 Output Power vs. Frequency (Bluetooth Low Energy 1 Mbps, 2.44 GHz)
Figure 7-52 Output Power vs. Frequency (Bluetooth Low Energy 1 Mbps, 2.44 GHz, +20 dBm
PA)
