PLL and Clock Typical Characteristics

Typical values at TA = +25°C with nominal supplies. Unless otherwise noted, fREF = 491.52 MHz, Phase noise measured at TX output
Typical values at TA = +25°C with nominal supplies. Unless otherwise noted, fREF = 491.52 MHz, Phase noise measured at TX outputGUID-20210709-CA0I-ZHKP-XSWN-WDM2RKJJB76F-low.png
measured at TX output, normalized to 12GHz by 20*log10(12GHz/FOUT)
Figure 6-491 Phase Noise vs Offset Frequency for PLL and External Clock at 12GHz. Typical values at TA = +25°C with nominal supplies. Unless otherwise noted, fREF = 491.52 MHz, Phase noise measured at TX output
PLL enabled, fVCO = 11796.48 MHz, fREF = 491.52MSPS, measured at 2TXOUT
Figure 6-493 Phase Noise for 12-GHz VCO vs Offset Frequency and Temperature at fOUT = 1910 MHz
PLL enabled, fVCO = 11796.48 MHz, fREF = 491.52MSPS, measured at 2TXOUT

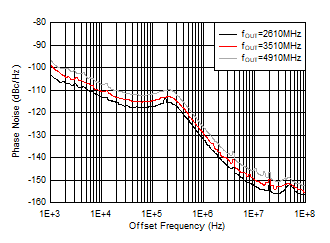

Figure 6-495 Phase Noise for 12-GHz VCO vs Offset Frequency and fOUT at –40°C
PLL enabled, fVCO = 11796.48 MHz, fREF = 491.52MSPS, measured at 2TXOUT
Figure 6-497 Phase Noise for 12-GHz VCO vs Offset Frequency and CP Setting at fOUT = 2.6 GHz
PLL enabled, fVCO = 11796.48 MHz, measured at 2TXOUT
Figure 6-499 Phase Noise for 12-GHz VCO at 600kHz Offset vs Temperature and fREF at fOUT = 2.6 GHz
PLL enabled, fVCO = 11796.48 MHz, measured at 2TXOUT

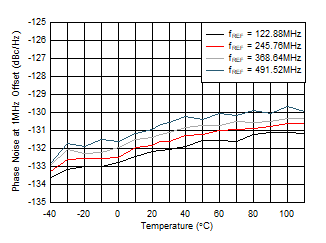

Figure 6-501 Phase Noise for 12-GHz VCO at 1-MHz Offset vs Temperature and fREF at fOUT = 2.6 GHz
PLL enabled, fVCO = 11796.48 MHz, measured at 2TXOUT
Figure 6-503 Phase Noise for 12-GHz VCO at 5-MHz Offset vs Temperature and fREF at fOUT = 2.6 GHz
PLL enabled, fVCO = 9830.4 MHz, fREF = 491.52MSPS, measured at 2TXOUT
Figure 6-505 Phase Noise for 10-GHz VCO vs Offset Frequency and Temperature at fOUT = 1910 MHz
PLL enabled, fVCO = 9830.4 MHz, fREF = 491.52MSPS, measured at 2TXOUT
Figure 6-507 Phase Noise for 10-GHz VCO vs Offset Frequency and fOUT at –40°C
PLL enabled, fVCO = 9830.4 MHz, 1-kHz to 100-MHz, single-sided integration bandwidth, measured at 2TXOUT
Figure 6-509 Integrated Phase Noise for 10-GHz VCO vs Temperature and fREF at fOUT = 2.6 GHz
PLL enabled, fVCO = 9830.4 MHz, measured at 2TXOUT
Figure 6-511 Phase Noise for 10-GHz VCO at 800 kHz vs Temperature and fREF at fOUT = 2.6 GHz
PLL enabled, fVCO = 9830.4 MHz, measured at 2TXOUT
Figure 6-513 Phase Noise for 10-GHz VCO at 1.8 MHz vs Temperature and fREF at fOUT = 2.6 GHz
PLL enabled, fVCO = 9830.4 MHz, measured at 2TXOUT
Figure 6-515 Phase Noise for 10-GHz VCO at 50 MHz vs Temperature and fREF at fOUT = 2.6 GHz
PLL enabled, fVCO = 8847.36 MHz, fREF = 491.52MSPS, measured at 2TXOUT
Figure 6-517 Phase Noise for 9-GHz VCO vs Offset Frequency and fOUT at 25°C
PLL enabled, fVCO = 8847.36 MHz, fREF = 491.52MSPS, measured at 2TXOUT
Figure 6-519 Phase Noise for 9-GHz VCO vs Offset Frequency and fOUT at 110°C
PLL enabled, fVCO = 7864.32 MHz, fREF = 491.52MSPS, measured at 2TXOUT
Figure 6-521 Phase Noise for 8-GHz VCO vs Offset Frequency and Temperature at fOUT = 1910 MHz
Typical values at TA = +25°C with nominal supplies. Unless otherwise noted, fREF = 491.52 MHz, Phase noise measured at TX outputGUID-CB1344C4-099A-410F-85BF-D27062778F27-low.gif
PLL enabled, fREF = 491.52MSPS, measured at 2TXOUT
Figure 6-492 Phase Noise vs Offset Frequency and fVCO at fOUT = 2610 MHz. Typical values at TA = +25°C with nominal supplies. Unless otherwise noted, fREF = 491.52 MHz, Phase noise measured at TX output
PLL enabled, fVCO = 11796.48 MHz, fREF = 491.52MSPS, measured at 2TXOUT
Figure 6-494 Phase Noise for 12-GHz VCO vs Offset Frequency and fOUT at 25°C
PLL enabled, fVCO = 11796.48 MHz, fREF = 491.52MSPS, measured at 2TXOUT
Figure 6-496 Phase Noise for 12-GHz VCO vs Offset Frequency and fOUT at 110°C
PLL enabled, fVCO = 11796.48 MHz, 1-kHz to 100-MHz, single-sided integration bandwidth, measured at 2TXOUT
Figure 6-498 Integrated Phase Noise for 12-GHz VCO vs Temperature and fREF at fOUT = 2.6 GHz
PLL enabled, fVCO = 11796.48 MHz, measured at 2TXOUT

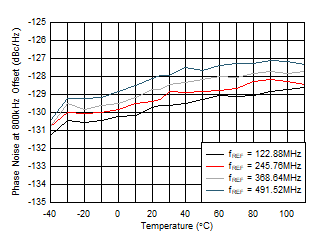

Figure 6-500 Phase Noise for 12-GHz VCO at 800-kHz Offset vs Temperature and fREF at fOUT = 2.6 GHz
PLL enabled, fVCO = 11796.48 MHz, measured at 2TXOUT
Figure 6-502 Phase Noise for 12-GHz VCO at 1.8-MHz Offset vs Temperature and fREF at fOUT = 2.6 GHz
PLL enabled, fVCO = 11796.48 MHz, measured at 2TXOUT
Figure 6-504 Phase Noise for 12-GHz VCO at 50-MHz Offset vs Temperature and fREF at fOUT = 2.6 GHz
PLL enabled, fVCO = 9830.4 MHz, fREF = 491.52MSPS, measured at 2TXOUT
Figure 6-506 Phase Noise for 10-GHz VCO vs Offset Frequency and fOUT at 25°C
PLL enabled, fVCO = 9830.4 MHz, fREF = 491.52MSPS, measured at 2TXOUT
Figure 6-508 Phase Noise for 10-GHz VCO vs Offset Frequency and fOUT at 110°C
PLL enabled, fVCO = 9830.4 MHz, measured at 2TXOUT
Figure 6-510 Phase Noise for 10-GHz VCO at 600 kHz vs Temperature and fREF at fOUT = 2.6 GHz
PLL enabled, fVCO = 9830.4 MHz, measured at 2TXOUT
Figure 6-512 Phase Noise for 10-GHz VCO at 1 MHz vs Temperature and fREF at fOUT = 2.6 GHz
PLL enabled, fVCO = 9830.4 MHz, measured at 2TXOUT
Figure 6-514 Phase Noise for 10-GHz VCO at 5 MHz vs Temperature and fREF at fOUT = 2.6 GHz
PLL enabled, fVCO = 8847.36 MHz, fREF = 491.52MSPS, measured at 2TXOUT

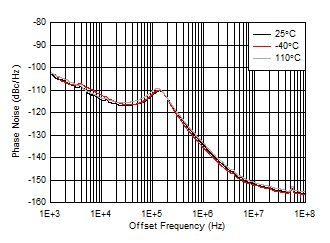

Figure 6-516 Phase Noise for 9-GHz VCO vs Offset Frequency and Temperature at fOUT = 1910 MHz
PLL enabled, fVCO = 8847.36 MHz, fREF = 491.52MSPS, measured at 2TXOUT
Figure 6-518 Phase Noise for 9-GHz VCO vs Offset Frequency and fOUT at –40°C
PLL enabled, fVCO = 8847.36 MHz, fREF = 491.52MSPS, minimum LPF BW, measured at 2TXOUT
Figure 6-520 Phase Noise for 9-GHz VCO vs Temperature Over Offset Frequency at fOUT = 2.6 GHz
