7.3.3.3 ADC Transfer Function

The device family supports unipolar, fully differential analog inputs. The device output is in two's compliment format. Figure 36 and Table 1 show the ideal transfer characteristics for the device.

The least significant bit (LSB) for the ADC is given by Equation 3:

Equation 3. ADS8910B ADS8912B ADS8914B ai_eq_1lsb_sbas629.gif

where

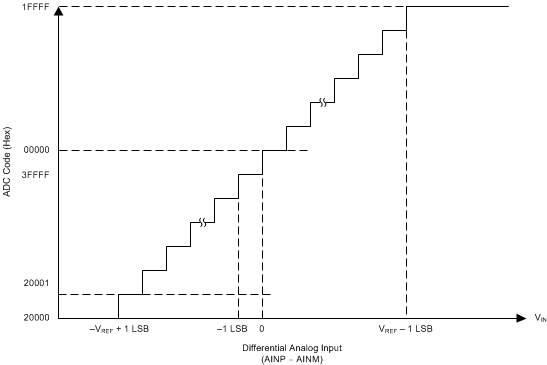

    ADS8910B ADS8912B ADS8914B ai_transfer_chara_diff_sbas707_18.gifFigure 36. Differential Transfer Characteristics

    Table 1. Transfer Characteristics

    DIFFERENTIAL ANALOG INPUT VOLTAGE
    (AINP – AINM)    		OUTPUT CODE
    (HEX)
    < –VREF 20000
    –VREF + 1 LSB 20001
    –1 LSB 3FFFF
    0 00000
    1 LSB 00001
    > VREF – 1 LSB 1FFFF
