6.8 Typical Characteristics

at TA = 25°C, RVDD = 5.5 V, DVDD = 3 V, VREF = 5 V, and maximum-rated throughput (unless otherwise noted)
ADS8910B ADS8912B ADS8914B D001_SBAS707.gif
Typical DNL = ±0.4 LSB
Figure 6. Typical DNL
ADS8910B ADS8912B ADS8914B D007_SBAS707.gif
1000 devices
Figure 8. Typical DNL Distribution
ADS8910B ADS8912B ADS8914B D003_SBAS707.gif
Figure 10. DNL vs Temperature
ADS8910B ADS8912B ADS8914B D005_SBAS707.gif
Figure 12. DNL vs Reference Voltage
ADS8910B ADS8912B ADS8914B D019_SBAS707.gif
4000 devices
Figure 14. Typical Offset Distribution
ADS8910B ADS8912B ADS8914B D020_SBAS707.gif
REF_SEL[2:0] = 000b
Figure 16. Offset vs Temperature
ADS8910B ADS8912B ADS8914B D023_SBAS707.gif
EN_MARG = 0b
Figure 18. Gain Error vs Temperature
ADS8910B ADS8912B ADS8914B D009_SBAS707.gif
Standard Deviation = 0.65 LSB
Figure 20. DC Input Histogram
ADS8910B ADS8912B ADS8914B D013_SBAS707.gif
fIN = 2 kHz
Figure 22. Noise Performance vs Temperature
ADS8910B ADS8912B ADS8914B D015_SBAS707.gif
fIN = 2 kHz
Figure 24. Noise Performance vs Reference Voltage
ADS8910B ADS8912B ADS8914B D017_SBAS707.gif
Figure 26. Noise Performance vs Input Frequency
ADS8910B ADS8912B ADS8914B D026_SBAS707.gif
Figure 28. Analog Supply Current vs Supply Voltage
ADS8910B ADS8912B ADS8914B D002_SBAS707.gif
Typical INL = ±0.5 LSB
Figure 7. Typical INL
ADS8910B ADS8912B ADS8914B D008_SBAS707.gif
1000 devices
Figure 9. Typical INL Distribution
ADS8910B ADS8912B ADS8914B D004_SBAS707.gif
Figure 11. INL vs Temperature
ADS8910B ADS8912B ADS8914B D006_SBAS707.gif
Figure 13. INL vs Reference Voltage
ADS8910B ADS8912B ADS8914B D022_SBAS707.gif
4000 devices
Figure 15. Typical Gain Error Distribution
ADS8910B ADS8912B ADS8914B D021_SBAS707.gif
With appropriate REF_SEL[2:0], see OFST_CAL
Figure 17. Offset vs Reference Voltage
ADS8910B ADS8912B ADS8914B D024_SBAS707.gif
EN_MARG = 0b

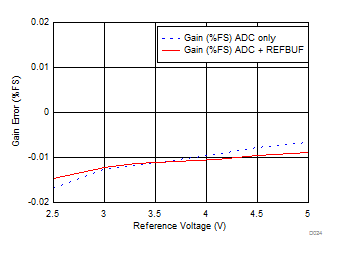

Figure 19. Gain Error vs Reference Voltage
ADS8910B ADS8912B ADS8914B D011_SBAS707.gif
fIN = 2 kHz SNR = 102.8 dB THD = –125 dB
Figure 21. Typical FFT
ADS8910B ADS8912B ADS8914B D014_SBAS707.gif
fIN = 2 kHz
Figure 23. Distortion Performance vs Temperature
ADS8910B ADS8912B ADS8914B D016_SBAS707.gif
fIN = 2 kHz
Figure 25. Distortion Performance vs Reference Voltage
ADS8910B ADS8912B ADS8914B D018_SBAS707.gif
Figure 27. Distortion Performance vs Input Frequency
ADS8910B ADS8912B ADS8914B D028_SBAS707.gif
RVDD = 5 V
Figure 29. Analog Supply Current vs Temperature
