6.7 Switching Characteristics

At RVDD = 5.5 V, DVDD = 1.65 V to 5.5 V, VREF = 5 V, and maximum throughput (unless otherwise noted).
Minimum and maximum values at TA = –40°C to +125°C; typical values at TA = 25°C.
PARAMETERMINTYPMAXUNITTIMING DIAGRAM
CONVERSION CYCLE
tconv Conversion time ADS8910B 580 640 ns Figure 1
ADS8912B 1100 1200
ADS8914B 2400 2500
ASYNCHRONOUS RESET, AND LOW POWER MODES
td_rst Delay time: RST rising to RVS rising 3 ms Figure 2
tPU_ADC Power-up time for converter module 1 ms See PD_CNTL Register
tPU_REFBUF Power-up time for internal reference buffer, CREFBUF = 22 µF 10 ms
tPU_Device Power-up time for device CLDO = 1 µF, CREFBUF = 22 µF 10 ms
SPI-COMPATIBLE SERIAL INTERFACE
tden_CSDO Delay time: CS falling to data enable 9 ns Figure 3
tdz_CSDO Delay time: CS rising to SDO going to Hi-Z 10 ns
td_CKDO Delay time: SCLK launch edge to (next) data valid on SDO 13 ns
td_CSRDY_f Delay time: CS falling to RVS falling 12 ns Figure 4
td_CSRDY_r Delay time:
CS rising to RVS rising		 After NOP operation 30 ns Figure 4
After WR or RD operation 120
SOURCE-SYNCHRONOUS SERIAL INTERFACE (External Clock)(1)
td_CKSTR_r Delay time: SCLK launch edge to RVS rising 13 ns Figure 4
td_CKSTR_f Delay time: SCLK launch edge to RVS falling 13 ns
toff_STRDO_f Time offset: RVS falling to (next) data valid on SDO -2 2 ns
toff_STRDO_r Time offset: RVS rising to (next) data valid on SDO -2 2 ns
tph_STR Strobe output high time, 2.35 V ≤ DVDD ≤ 5.5 V 0.45 0.55 tSTR
tpl_STR Strobe output low time, 2.35 V ≤ DVDD ≤ 5.5 V 0.45 0.55 tSTR
SOURCE-SYNCHRONOUS SERIAL INTERFACE (Internal Clock)
td_CSSTR Delay time: CS falling to RVS rising 15 50 ns Figure 5
tSTR Strobe output time period INTCLK option 15 ns
INTCLK / 2 option 30
INTCLK / 4 option 60
tph_STR Strobe output high time 0.45 0.55 tSTR
tpl_STR Strobe output low time 0.45 0.55 tSTR
ADS8910B ADS8912B ADS8914B ai_typ_conv_sbas707.gifFigure 1. Conversion Cycle Timing
ADS8910B ADS8912B ADS8914B tim_reset_sbas707.gifFigure 2. Asynchronous Reset Timing
ADS8910B ADS8912B ADS8914B tim_spi_sbas707.gif
1. The SCLK polarity, launch edge, and capture edge depend on the SPI protocol selected.
Figure 3. SPI-Compatible Serial Interface Timing

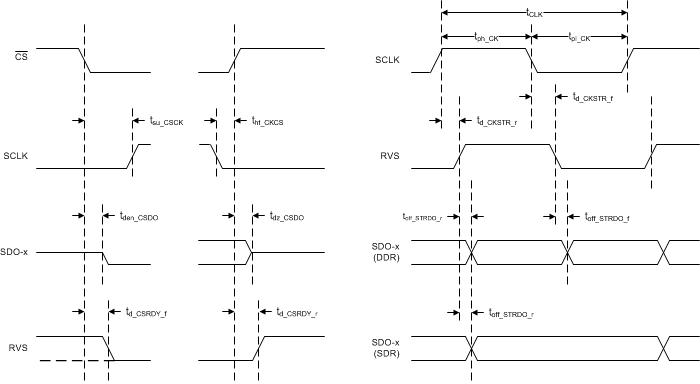

ADS8910B ADS8912B ADS8914B tim_srcsync-extclk_sbas707.gifFigure 4. Source-Synchronous Serial Interface Timing (External Clock)

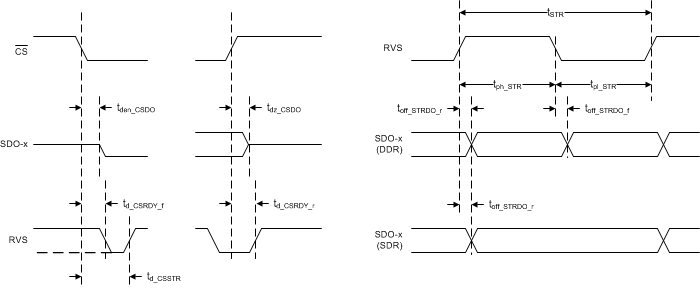

ADS8910B ADS8912B ADS8914B tim_srcsync-intclk_sbas707.gifFigure 5. Source-Synchronous Serial Interface Timing (Internal Clock)
