9 Parameter Measurement Information

ADS42B49 tim_lvds_vo_level_bas550.gif
1. With an external 100-Ω termination.
Figure 37. LVDS Output Voltage Levels

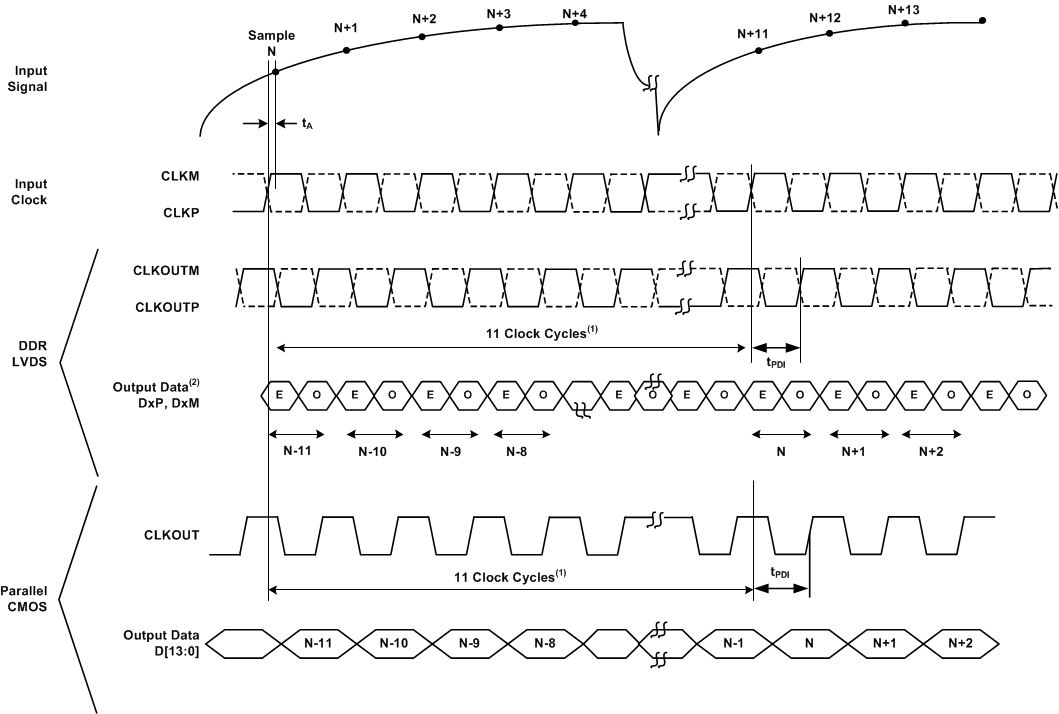

ADS42B49 tim_latency_bas558.gif
1. The ADC latency after reset is 11 clock cycles. Overall latency = ADC latency + tPDI.
2. E = even bits (D0, D2, D4, and so forth); O = odd bits (D1, D3, D5, and so forth).
Figure 38. Latency Timing Diagram
ADS42B49 tim_cmos_iface_bas533.gif
1. Dn = bits D0, D1, D2, and so forth of channels A and B.
Figure 39. CMOS Interface Timing Diagram
ADS42B49 LVDS_TIMING_DIAGRAM.gif
1. Dn = D0, D2, D4, and so forth. Dn+1 = D1, D3, D5, and so forth.
Figure 40. LVDS Interface Timing Diagram
ADS42B49 LVDS_BIT_ORDER.gif Figure 41. LVDS Bit Order
