Typical Characteristics

at TA = 25°C, AVDD = 3 V, AVSS = 0 V, DVDD = 1.8 V, internal VREFP = 2.4 V, VREFN = AVSS, external fCLK = 2.048 MHz, data rate = 8 kSPS, and gain = 1 (unless otherwise noted)
ADS131E08S G003_SBAS705.png
Data rate = 1 kSPS, gain = 1
Figure 3. Input-Referred Noise
ADS131E08S G005_SBAS705.png
Data rate = 4 kSPS, VIN = AVDD – 0.3 V to AVSS + 0.3 V

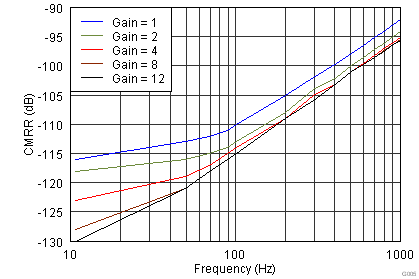

Figure 5. Common-Mode Rejection Ratio vs Frequency
ADS131E08S G007_SBAS705.png
Figure 7. PSRR vs Frequency
ADS131E08S G009_SBAS705.png

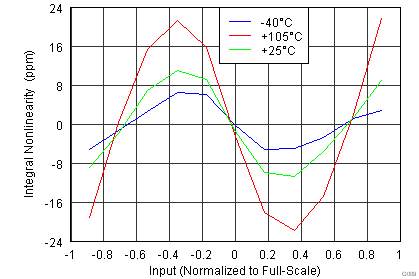

Figure 9. INL vs Temperature
ADS131E08S D011_sbas705.gif
Gain = 1, THD = –100 dB, SNR = 107 dB,
data rate = 4 kSPS, 16384 points
Figure 11. THD FFT Plot
ADS131E08S D012_sbas705.gif
Figure 13. Offset vs PGA Gain (Absolute Value)
ADS131E08S G014_SBAS705.png
Figure 15. Channel Power
ADS131E08S G004_SBAS705.png
Data rate = 1 kSPS, gain = 1
Figure 4. Noise Histogram
ADS131E08S D006_sbas705.gif

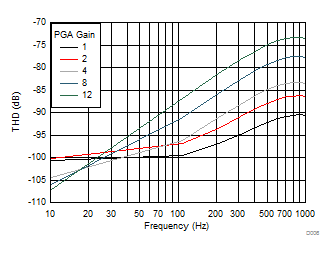

Figure 6. Total Harmonic Distortion vs Frequency
ADS131E08S G008_SBAS705.png
Figure 8. INL vs PGA Gain
ADS131E08S D010_sbas705.gif
Gain = 1, THD = –101.5 dB, SNR = 111 dB,
data rate = 1 kSPS, 16384 points
Figure 10. THD FFT Plot
ADS131E08S D017_sbas705.gif
Gain = 1, THD = –100 dB, SNR = 76 dB,
data rate = 64 kSPS, 16384 points
Figure 12. FFT Plot
ADS131E08S D013_sbas705.gif
Figure 14. Offset Drift vs PGA Gain
ADS131E08S D015_sbas705.gif
AVDD = 5 V, AVSS = 0 V, VREF = 4 V

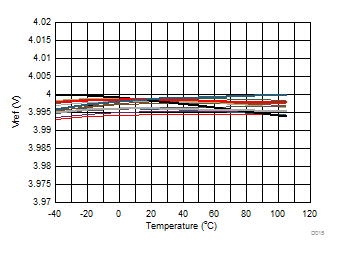

Figure 16. Internal VREF vs Temperature
