9.3.6.1 Digital Filter Frequency Response

The digital filter provides many data rate options for rejecting 50-Hz and 60-Hz line cycle noise. At data rates of 2.5 SPS, 5 SPS, 10 SPS, and 20 SPS, the filter rejects both 50-Hz and 60-Hz line frequencies. At data rates of 16.6 SPS and 50 SPS, the filter has a notch at 50 Hz. At a 60-SPS data rate, the filter has a notch at 60 Hz.

For detailed frequency response plots showing line cycle noise rejection, download the ADS1x4S0x design calculator from www.ti.com.

Figure 47 to Figure 61 illustrate the frequency response of the digital filter for different data rates. Table 6 lists the bandwidth of the digital filter for each data rate.

ADS114S06B ADS114S08B ai_ll_filt_2p5sps_sbas660.gif
fCLK = 4.096 MHz
Figure 47. Digital Filter Frequency Response,
Data Rate = 2.5 SPS
ADS114S06B ADS114S08B ai_ll_filt_10sps_sbas660.gif
fCLK = 4.096 MHz
Figure 49. Digital Filter Frequency Response,
Data Rate = 10 SPS
ADS114S06B ADS114S08B ai_ll_filt_20sps_sbas660.gif
fCLK = 4.096 MHz
Figure 51. Digital Filter Frequency Response,
Data Rate = 20 SPS
ADS114S06B ADS114S08B ai_ll_filt_50sps_sbas660.gif
fCLK = 4.096 MHz
Figure 53. Digital Filter Frequency Response,
Data Rate = 50 SPS
ADS114S06B ADS114S08B ai_ll_filt_100sps_sbas660.gif
fCLK = 4.096 MHz
Figure 55. Digital Filter Frequency Response,
Data Rate = 100 SPS
ADS114S06B ADS114S08B ai_ll_filt_400sps_sbas660.gif
fCLK = 4.096 MHz
Figure 57. Digital Filter Frequency Response,
Data Rate = 400 SPS
ADS114S06B ADS114S08B ai_ll_filt_1ksps_sbas660.gif
fCLK = 4.096 MHz
Figure 59. Digital Filter Frequency Response,
Data Rate = 1 kSPS
ADS114S06B ADS114S08B ai_ll_filt_4ksps_sbas660.gif
fCLK = 4.096 MHz
Figure 61. Digital Filter Frequency Response,
Data Rate = 4 kSPS
ADS114S06B ADS114S08B ai_ll_filt_5sps_sbas660.gif
fCLK = 4.096 MHz
Figure 48. Digital Filter Frequency Response,
Data Rate = 5 SPS
ADS114S06B ADS114S08B ai_ll_filt_16sps_sbas660.gif
fCLK = 4.096 MHz
Figure 50. Digital Filter Frequency Response,
Data Rate = 16.6 SPS

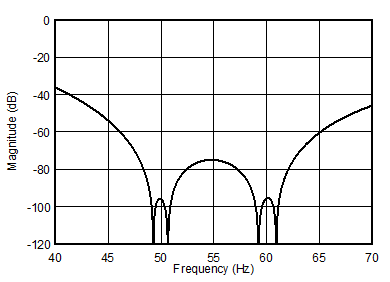

ADS114S06B ADS114S08B ai_ll_filt_20sps_50_60_sbas660.gif
fCLK = 4.096 MHz
Figure 52. Digital Filter Frequency Response,
Data Rate = 20 SPS, Zoomed to 50 Hz and 60 Hz
ADS114S06B ADS114S08B ai_ll_filt_60sps_sbas660.gif
fCLK = 4.096 MHz
Figure 54. Digital Filter Frequency Response,
Data Rate = 60 SPS
ADS114S06B ADS114S08B ai_ll_filt_200sps_sbas660.gif
fCLK = 4.096 MHz
Figure 56. Digital Filter Frequency Response,
Data Rate = 200 SPS
ADS114S06B ADS114S08B ai_ll_filt_800sps_sbas660.gif
fCLK = 4.096 MHz
Figure 58. Digital Filter Frequency Response,
Data Rate = 800 SPS
ADS114S06B ADS114S08B ai_ll_filt_2ksps_sbas660.gif
fCLK = 4.096 MHz
Figure 60. Digital Filter Frequency Response,
Data Rate = 2 kSPS

Table 6. Digital Filter Bandwidth

NOMINAL DATA RATE (SPS)(1) –3-dB BANDWIDTH (Hz)(1)
2.5 1.1
5 2.2
10 4.7
16.6 7.4
20 13.2
50 22.1
60 26.6
100 44.4
200 89.9
400 190
800 574
1000 717
2000 1434
4000 2868
(1) Valid for the internal oscillator or an external 4.096-MHz clock. Scales proportional with fCLK.

The digital filter notches and output data rate scale proportionally with the clock frequency. For example, a notch that appears at 20 Hz when using a 4.096-MHz clock appears at 10 Hz if a 2.048-MHz clock is used. The internal oscillator can vary over temperature as specified in the Electrical Characteristics table. The data rate, conversion time, and filter notches consequently vary by the same percentage. Consider using an external precision clock source if a digital filter notch at a specific frequency with a tighter tolerance is required.
