Output Voltage Load Regulation

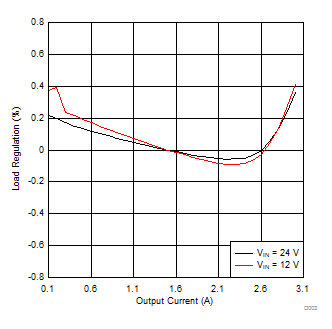

Figure 2-3 shows the load regulation for the TPS54302EVM-716.

GUID-B6AAC7FC-42A9-4748-B14C-4907357E6E9A-low.gifFigure 2-3 TPS54302EVM-716 Load Regulation

Measurements are given for an ambient temperature of 25°C.
