Efficiency

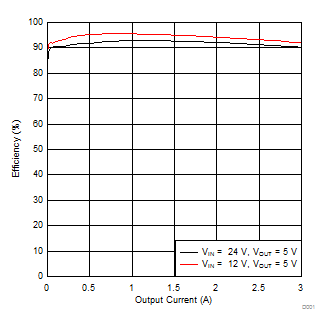

The efficiency of this EVM peaks at a load current of about 0.5 A to 1 A, and then decreases as the load current increases towards full load. Figure 2-1 shows the efficiency for the TPS54302EVM-716 at an ambient temperature of 25°C.

GUID-70DCB7D7-8C15-41A6-A469-DFEFB78037B8-low.gifFigure 2-1 TPS54302EVM-716 Efficiency

Figure 2-2 shows the efficiency for the TPS54302EVM-716 on a semi-log scale to better show light load efficiency. The ambient temperature is 25°C.

GUID-417FBA61-F574-4324-A169-58FC3CE1201D-low.gifFigure 2-2 TPS54302EVM-716 Low Current Efficiency

The efficiency may be lower at higher ambient temperatures, due to temperature variation in the drain-to-source resistance of the internal MOSFET.
