11 Layout

11.1 Layout Guidelines

The power pad provides a thermal and mechanical interface between the device and the printed-circuit board (PCB). Connect the power pad to the device VSS pins. Pin 2 must not be connected. Pin (4, 17, 20, 31) are recommended to connect to VSS because these pins are not connected internally.

11.2 Layout Example

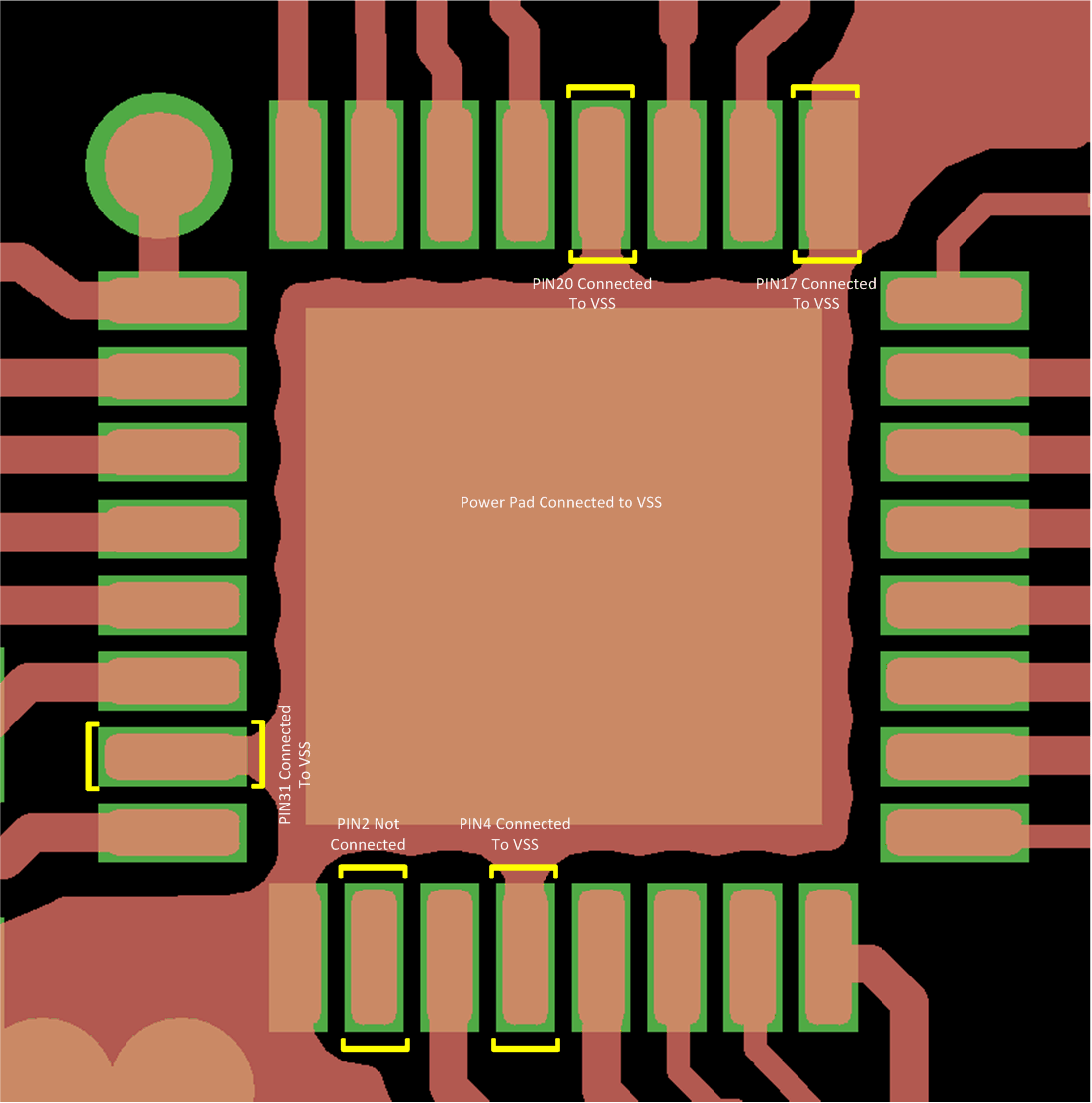

UCD9081 Layout_example_Top_Layer.gif Figure 22. UCD9081 Layout, Top Layer
