Typical Characteristics

UCC27712 D001_slusce9.gif
Figure 2. Low-Side, Turn-On Propagation Delay vs Temperature

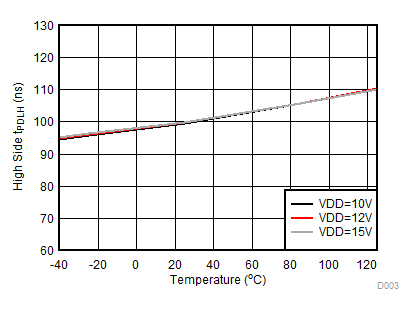

UCC27712 D003_slusce9.gif
Figure 4. High-Side, Turn-On Propagation Delay vs Temperature
UCC27712 D005_slusce9.gif
Figure 6. Turn-On Delay Matching vs Temperature
UCC27712 d007new_slusce9.gif
Figure 8. High-Side Propagation Delay vs HS

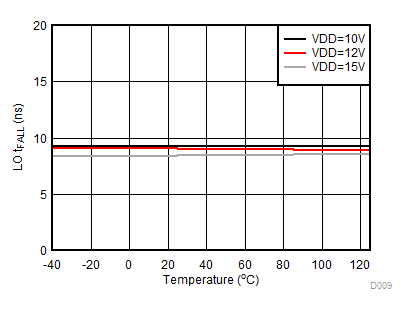

UCC27712 D009_slusce9.gif
Figure 10. LO Fall Time with 1000-pF Load vs Temperature
UCC27712 D0011_slusce9.gif
Figure 12. HO Fall Time with 1000-pF Load vs Temperature
UCC27712 D0013_slusce9.gif
Figure 14. VHB-VHS UVLO Thresholds vs Temperature
UCC27712 D0015_slusce9.gif
Figure 16. HI/LI Pin High Threshold vs Temperature
UCC27712 D0017_slusce9.gif
Figure 18. HI/LI Pin Hysteresis vs Temperature
UCC27712 D0019_slusce9.gif
Figure 20. HO Output Pull-Down Resistance vs Temperature
UCC27712 D0021_slusce9.gif
Figure 22. HO Output Pull-Up Resistance vs Temperature
UCC27712 D0023_slusce9.gif
Figure 24. Quiescent HB to HS Supply Current vs Temperature

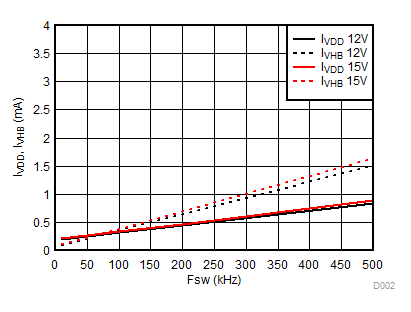

UCC27712 D0025_slusce9.gif
Figure 26. VDD and HB Operating Current with No Load vs Switching Frequency
UCC27712 D0027_slusce9.gif
Figure 28. VDD and HB Operating Current with 4700-pF Load vs Switching Frequency

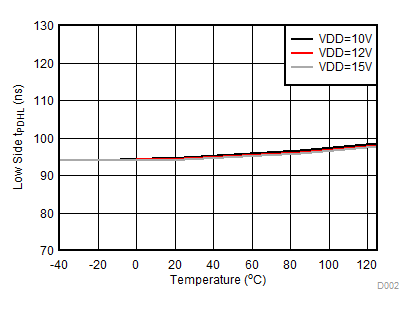

UCC27712 D002_slusce9.gif
Figure 3. Low-Side, Turn-Off Propagation Delay vs Temperature

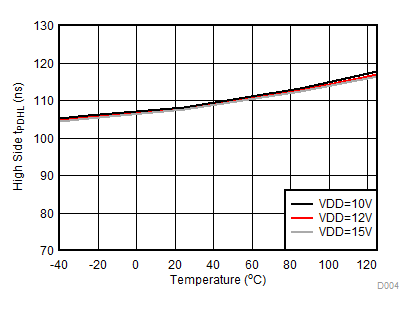

UCC27712 D004_slusce9.gif
Figure 5. High-Side, Turn-Off Propagation Delay vs Temperature
UCC27712 D006_slusce9.gif
Figure 7. Turn-Off Delay Matching vs Temperature

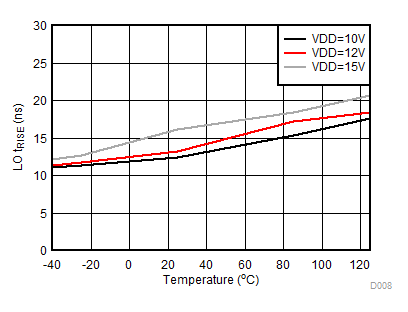

UCC27712 D008_slusce9.gif
Figure 9. LO Rise Time with 1000-pF Load vs Temperature
UCC27712 D0010_slusce9.gif
Figure 11. HO Rise Time with 1000-pF Load vs Temperature
UCC27712 D0012_slusce9.gif
Figure 13. VDD UVLO Thresholds vs Temperature
UCC27712 D0014_slusce9.gif
Figure 15. VDD and VHB-VHS UVLO Hysteresis vs Temperature
UCC27712 D0016_slusce9.gif
Figure 17. HI/LI Pin Low Threshold vs Temperature
UCC27712 D0018_slusce9.gif
Figure 19. LO Output Pull-Down Resistance vs Temperature

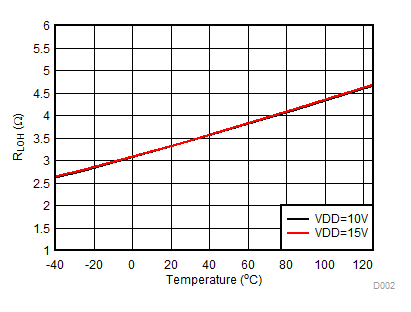

UCC27712 D0020_slusce9.gif
Figure 21. LO Output Pull-Up Resistance vs Temperature
UCC27712 D0022_slusce9.gif
Figure 23. Total Quiescent VDD plus HB Supply Current vs Temperature

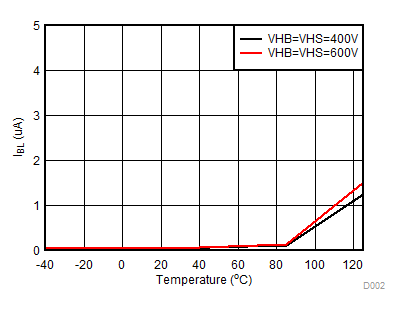

UCC27712 D0024_slusce9.gif
Figure 25. HB to COM Bootstrap Supply Leakage Current vs Temperature
UCC27712 D0026_slusce9.gif
Figure 27. VDD and HB Operating Current with 1000-pF Load vs Switching Frequency
