ZHCSG75E April   2017  – April 2018 TUSB544

PRODUCTION DATA.

  1. 特性
  2. 应用
  3. 说明
    1.     Device Images
      1.      简化原理图
  4. 修订历史记录
  5. Pin Configuration and Functions
    1.     Pin Functions
  6. Specifications
    1. 6.1  Absolute Maximum Ratings
    2. 6.2  ESD Ratings
    3. 6.3  Recommended Operating Conditions
    4. 6.4  Thermal Information
    5. 6.5  Power Supply Characteristics
    6. 6.6  DC Electrical Characteristics
    7. 6.7  AC Electrical Characteristics
    8. 6.8  Timing Requirements
    9. 6.9  Switching Characteristics
    10. 6.10 Typical Characteristics
  7. Detailed Description
    1. 7.1 Overview
    2. 7.2 Functional Block Diagram
    3. 7.3 Feature Description
      1. 7.3.1 USB 3.1
      2. 7.3.2 DisplayPort
      3. 7.3.3 4-Level Inputs
      4. 7.3.4 Receiver Linear Equalization
    4. 7.4 Device Functional Modes
      1. 7.4.1 Device Configuration in GPIO Mode
      2. 7.4.2 Device Configuration in I2C Mode
      3. 7.4.3 DisplayPort Mode
      4. 7.4.4 Custom Alternate Mode
      5. 7.4.5 Linear EQ Configuration
      6. 7.4.6 Adjustable VOD Linear Range and DC Gain
      7. 7.4.7 USB3.1 modes
      8. 7.4.8 Operation Timing – Power Up
    5. 7.5 Programming
      1. 7.5.1 The Following Procedure Should be Followed to Write to TUSB544 I2C Registers:
      2. 7.5.2 The Following Procedure Should be Followed to Read the TUSB544 I2C Registers:
      3. 7.5.3 The Following Procedure Should be Followed for Setting a Starting Sub-Address for I2C Reads:
    6. 7.6 Register Maps
      1. 7.6.1 TUSB544 Registers
        1. 7.6.1.1  GENERAL_4 Register (Offset = Ah) [reset = 1h]
          1. Table 13. GENERAL_4 Register Field Descriptions
        2. 7.6.1.2  GENERAL_5 Register (Offset = Bh) [reset = 0h]
          1. Table 14. GENERAL_5 Register Field Descriptions
        3. 7.6.1.3  GENERAL_6 Register (Offset = Ch) [reset = 0h]
          1. Table 15. GENERAL_6 Register Field Descriptions
        4. 7.6.1.4  DISPLAYPORT_1 Register (Offset = 10h) [reset = 0h]
          1. Table 16. DISPLAYPORT Register Field Descriptions
        5. 7.6.1.5  DISPLAYPORT_2 Register (Offset = 11h) [reset = 0h]
          1. Table 17. DISPLAYPORT_2 Register Field Descriptions
        6. 7.6.1.6  DISPLAYPORT_3 Register (Offset = 12h) [reset = 0h]
          1. Table 18. DISPLAYPORT_3 Register Field Descriptions
        7. 7.6.1.7  DISPLAYPORT_4 Register (Offset = 13h) [reset = 0h]
          1. Table 19. DISPLAYPORT_4 Register Field Descriptions
        8. 7.6.1.8  DISPLAYPORT_5 Register (Offset = 1Bh) [reset = 0h]
          1. Table 20. DISPLAYPORT_5 Register Field Descriptions
        9. 7.6.1.9  USB3.1_1 Register (Offset = 20h) [reset = 0h]
          1. Table 21. USB3.1 Register Field Descriptions
        10. 7.6.1.10 USB3.1_2 Register (Offset = 21h) [reset = 0h]
          1. Table 22. USB3.1_2 Register Field Descriptions
        11. 7.6.1.11 USB3.1_3 Register (Offset = 22h) [reset = 0h]
          1. Table 23. USB3.1_3 Register Field Descriptions
        12. 7.6.1.12 USB3.1_4 Register (Offset = 23h) [reset = 23h]
          1. Table 24. USB3.1_4 Register Field Descriptions
  8. Application and Implementation
    1. 8.1 Application Information
    2. 8.2 Typical Application
      1. 8.2.1 Design Requirements
      2. 8.2.2 Detailed Design Procedure
      3. 8.2.3 Application Curve
    3. 8.3 System Examples
      1. 8.3.1 USB 3.1 only (USB/DP Alternate Mode)
      2. 8.3.2 USB3.1 and 2 lanes of DisplayPort
      3. 8.3.3 DisplayPort Only
      4. 8.3.4 USB 3.1 only (USB/Custom Alternate Mode)
      5. 8.3.5 USB3.1 and 1 Lane of Custom Alt Mode
      6. 8.3.6 USB3.1 and 2 Lane of Custom Alt Mode
      7. 8.3.7 USB3.1 and 4 Lane of Custom Alt Mode
  9. Power Supply Recommendations
  10. 10Layout
    1. 10.1 Layout Guidelines
    2. 10.2 Layout Example
  11. 11器件和文档支持
    1. 11.1 文档支持
      1. 11.1.1 相关文档
    2. 11.2 接收文档更新通知
    3. 11.3 社区资源
    4. 11.4 商标
    5. 11.5 静电放电警告
    6. 11.6 术语表
  12. 12机械、封装和可订购信息

封装选项

机械数据 (封装 | 引脚)
散热焊盘机械数据 (封装 | 引脚)
订购信息

Typical Characteristics

TUSB544 D001_SLLSEZ0.gif
Figure 7. Input Return Loss Performance of the Downstream Ports

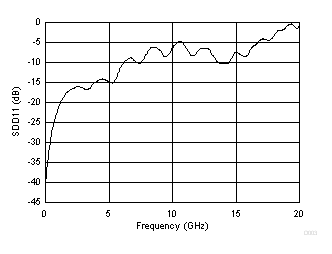

TUSB544 D003_SLLSEZ0.gif
Figure 9. Input Return Loss Performance of the Upstream Ports
TUSB544 D010_SLLSEZ0.gif
2.5 GHz
Figure 11. Downstream-to-Upstream Linearity Performance at 2.5 GHz
TUSB544 D009_SLLSEZ0.gif
100 MHz
Figure 13. Downstream-to-Upstream Linearity Performance at 100 MHz
TUSB544 D011_SLLSEZ0.gif
4.05 GHz
Figure 15. Upstream-to-Downstream Linearity Performance at 4.05 GHz
TUSB544 5Gbps_Eye.gif
Source Data Rate: 5 Gbps Swing: 1 Vpp
Data Pattern: PRBS7
Channel Upstream-to-Downstream, 12 in 6 mil Input PCB Channel
Settings EQ Setting: 7 DC Gain Setting: 0 dB
Linear Range Setting: 1100 mVpp
Figure 17. Output Eye-Pattern Performance at 5 Gbps

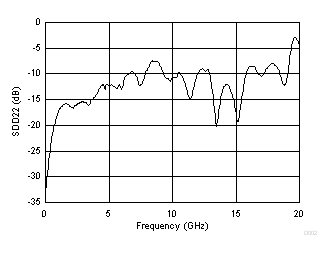

TUSB544 D002_SLLSEZ0.gif
Figure 8. Output Return Loss Performance of the Downstream Ports
TUSB544 D004_SLLSEZ0.gif
Figure 10. Output Return Loss Performance of the Upstream Ports
TUSB544 D008_SLLSEZ0.gif
4.05 GHz
Figure 12. Downstream-to-Upstream Linearity Performance at 4.05 GHz
TUSB544 D010_SLLSEZ0.gif
2.5 GHz
Figure 14. Upstream-to-Downstream Linearity Performance at 2.5 GHz
TUSB544 D012_SLLSEZ0.gif
100 MHz
Figure 16. Upstream-to-Downstream Linearity Performance at 100 MHz

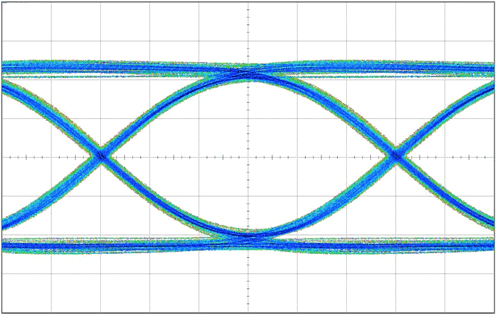

TUSB544 81Gbps_Eye.gif
Source Data Rate: 8.1 Gbps Swing: 1 Vpp
Data Pattern: PRBS7
Channel Upstream-to-Downstream, 12 in 6 mil Input PCB Channel
Settings EQ Setting: 7 DC Gain Setting: 0 dB
Linear Range Setting: 1100 mVpp
Figure 18. Output Eye-Pattern Performance at 8.1 Gbps
TUSB544 D005_SLLSEZ0.gif
Figure 19. Upstream-to-Downstream EQ Settings Curves

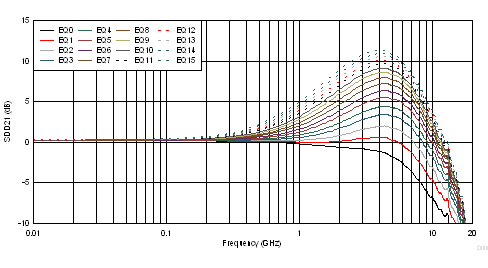

TUSB544 D006_SLLSEZ0.gif
Figure 20. Downstream-to-Upstream EQ Settings Curves
