6.9 Switching Characteristics

over operating free-air temperature range (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
AUXP/N and SBU1/2
tAUX_PD Switch propagation delay 400 ps
tAUX_SW_OFF Switching time CTL1 to switch OFF Not including tCTL1_DEBOUNCE 500 ns
tAUX_SW_ON Switching time CTL1 to switch ON 500 ns
tAUX_INTRA Intra-pair output skew 100 ps
USB3.1 and DisplayPort mode transition requirement GPIO mode
tGP_USB_4DP Min overlap of CTL1 and CTL1 when transitioning from USB 3.1 only mode to 4-Lane DisplayPort mode or vice versa. 4 µs
CTL1 and HPDIN
tCTL1_DEBOUNCE CTL1 and HPDIN debounce time when transitioning from H to L. DP Lanes will be disabled if low for greater than min value. 3 ms
I2C (Refer to Figure 1)
fSCL I2C clock frequency 1 MHz
tBUF Bus free time between START and STOP conditions 0.5 µs
tHDSTA Hold time after repeated START condition. After this period, the first clock pulse is generated 0.26 µs
tLOW Low period of the I2C clock 0.5 µs
tHIGH High period of the I2C clock 0.26 µs
tSUSTA Setup time for a repeated START condition 0.26 µs
tHDDAT Data hold time 0 μs
tSUDAT Data setup time 50 ns
tR Rise time of both SDA and SCL signals 120 ns
tF Fall time of both SDA and SCL signals 20 × (VI2C/5.5 V) 120 ns
tSUSTO Setup time for STOP condition 0.26 μs
Cb Capacitive load for each bus line 100 pF

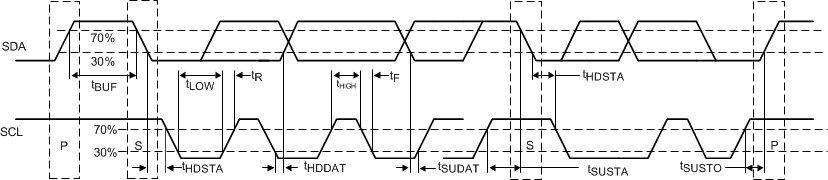

TUSB544 Timing_Diagram_Definitions_SLLSEV7.gifFigure 1. I2C Timing Diagram Definitions
TUSB544 USB3.1_to_4_Lane_DP_SLLSEV7.gifFigure 2. USB3.1 to 4-Lane DisplayPort in GPIO Mode
TUSB544 Propagation_Delay_SLLSEV7.gifFigure 3. Propagation Delay

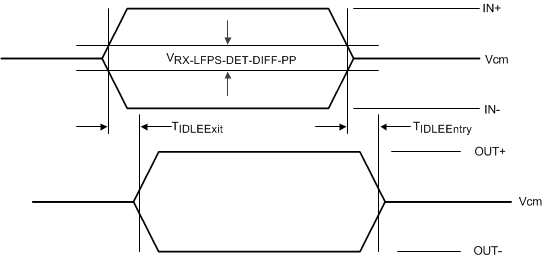

TUSB544 Electrical_Idle_Mode_SLLSEV7.gifFigure 4. Electrical Idle Mode Exit and Entry Delay

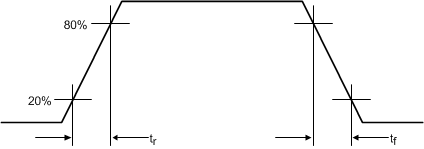

TUSB544 Output_Rise_and_Fall_Times_SLLSEV7.gifFigure 5. Output Rise and Fall Times
TUSB544 AUX_and_SBU_Switch_SLLSEV7.gifFigure 6. AUX and SBU Switch ON and OFF Timing Diagram
